G203

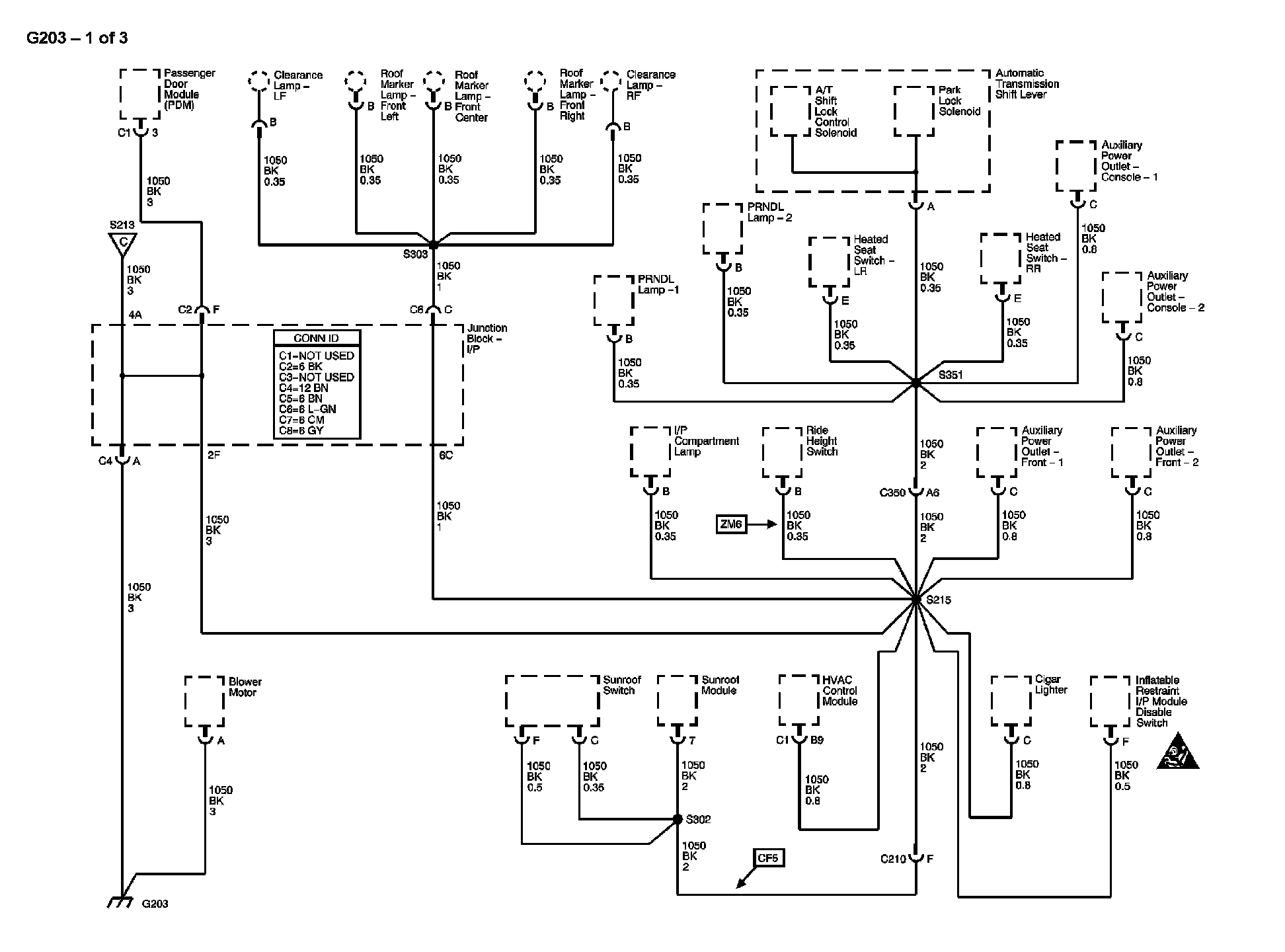

Ground Distribution Diagram 5 (1 Of 3):

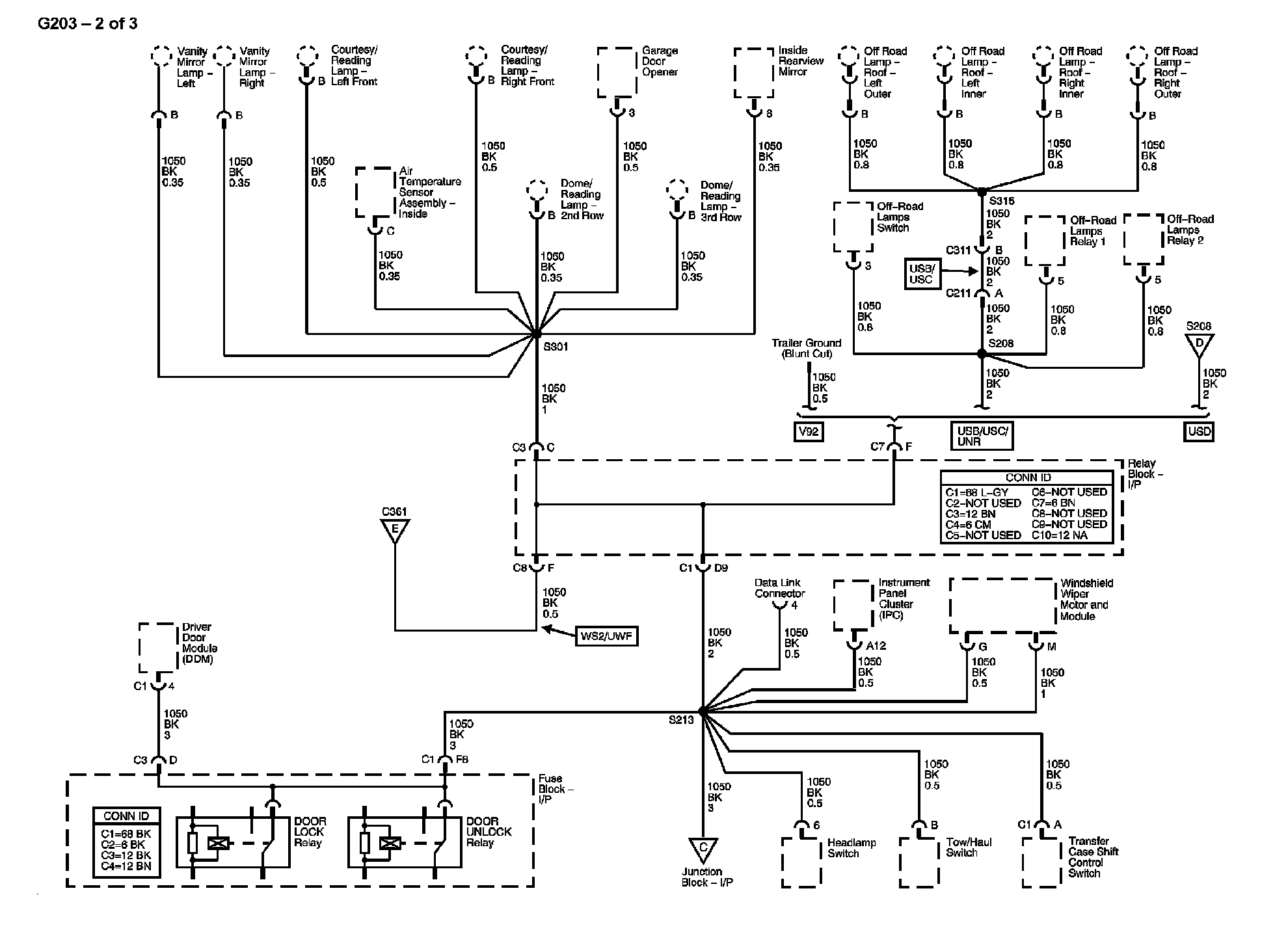

Ground Distribution Diagram 5 (2 Of 3):

Ground Distribution Diagram 5 (3 Of 3):

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
