Radio, Stereo, and Compact Disc

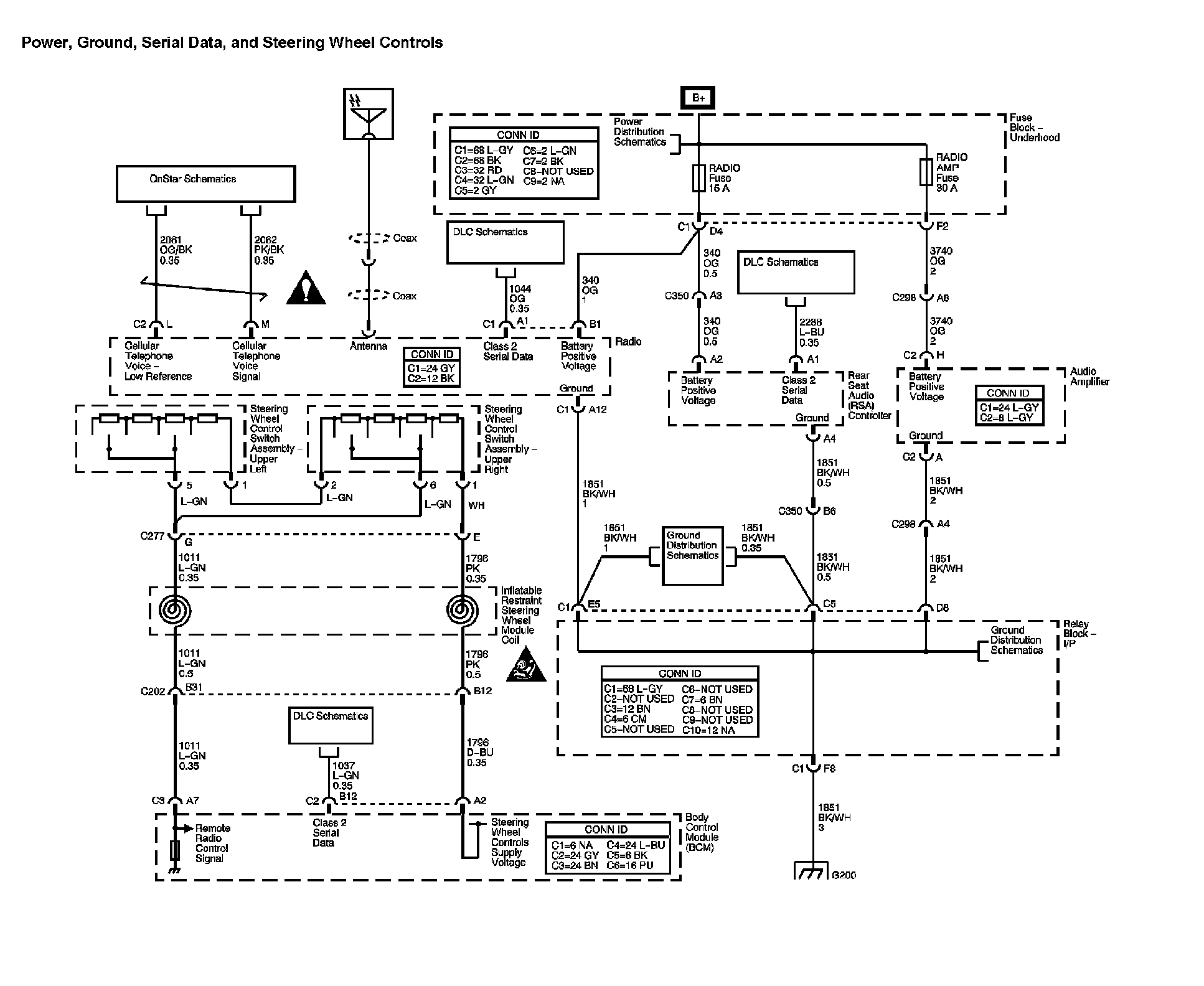

Radio/Audio System Diagram 1:

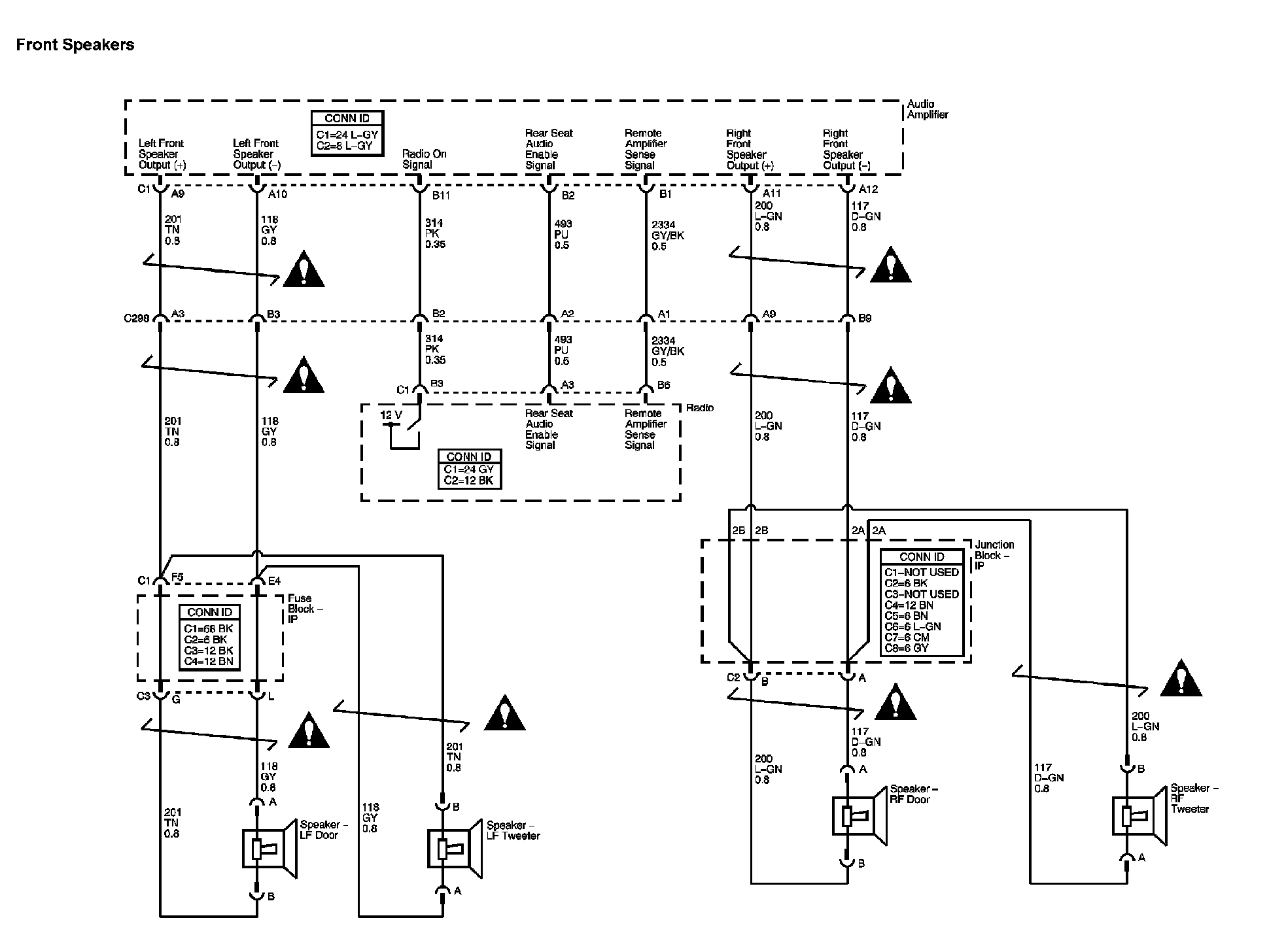

Radio/Audio System Diagram 2:

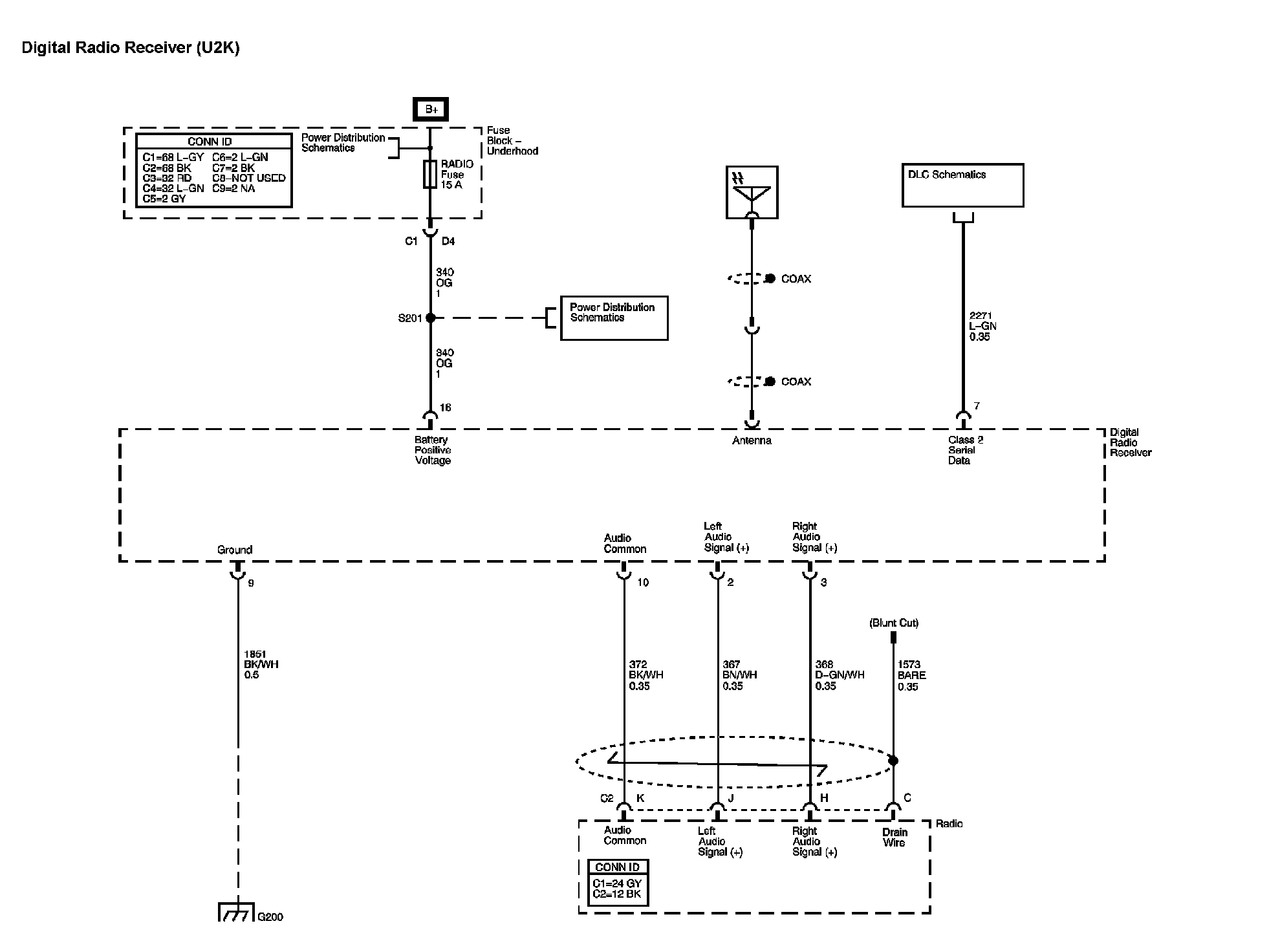

Radio/Audio System Diagram 3:

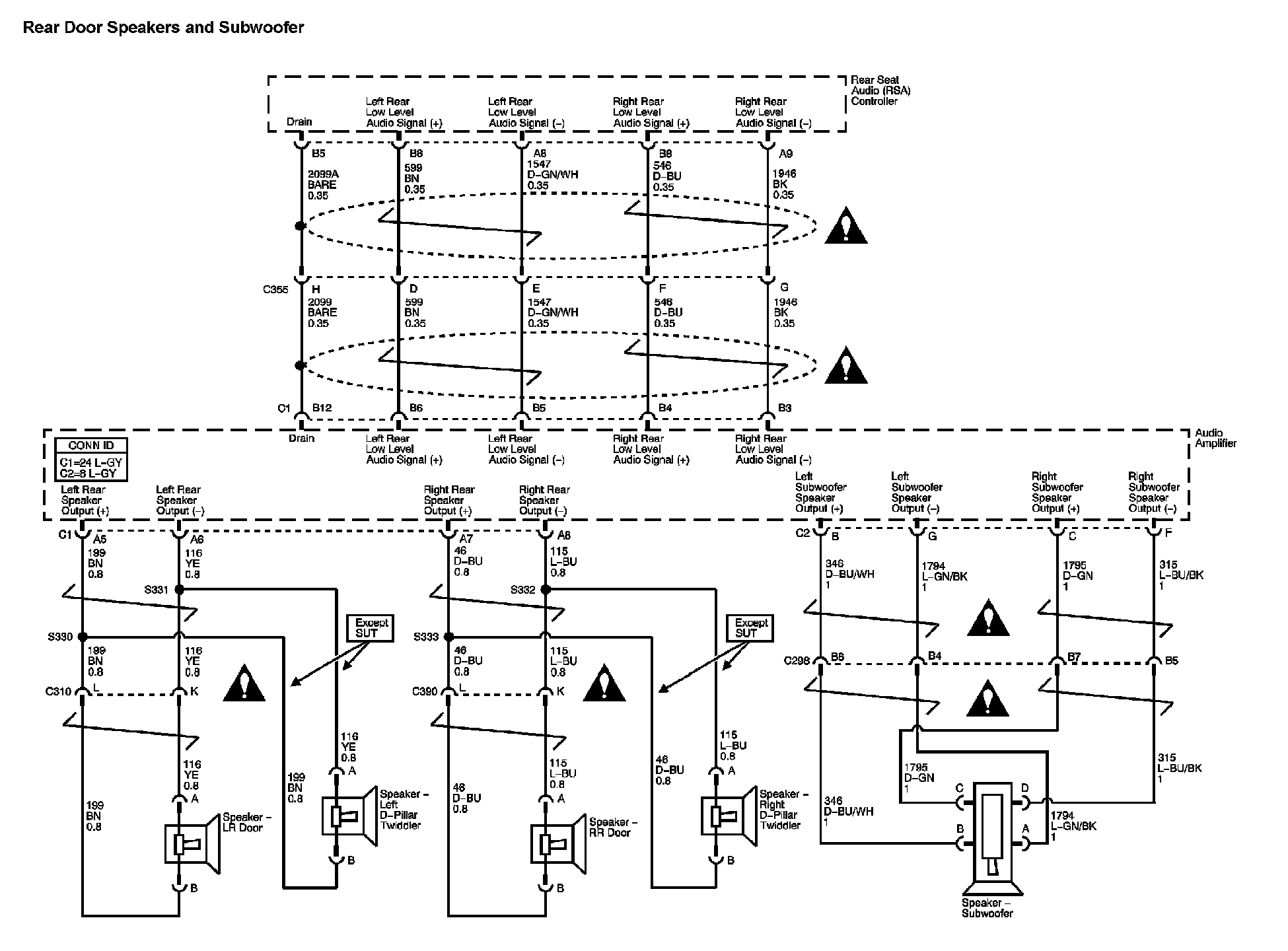

Radio/Audio System Diagram 4:

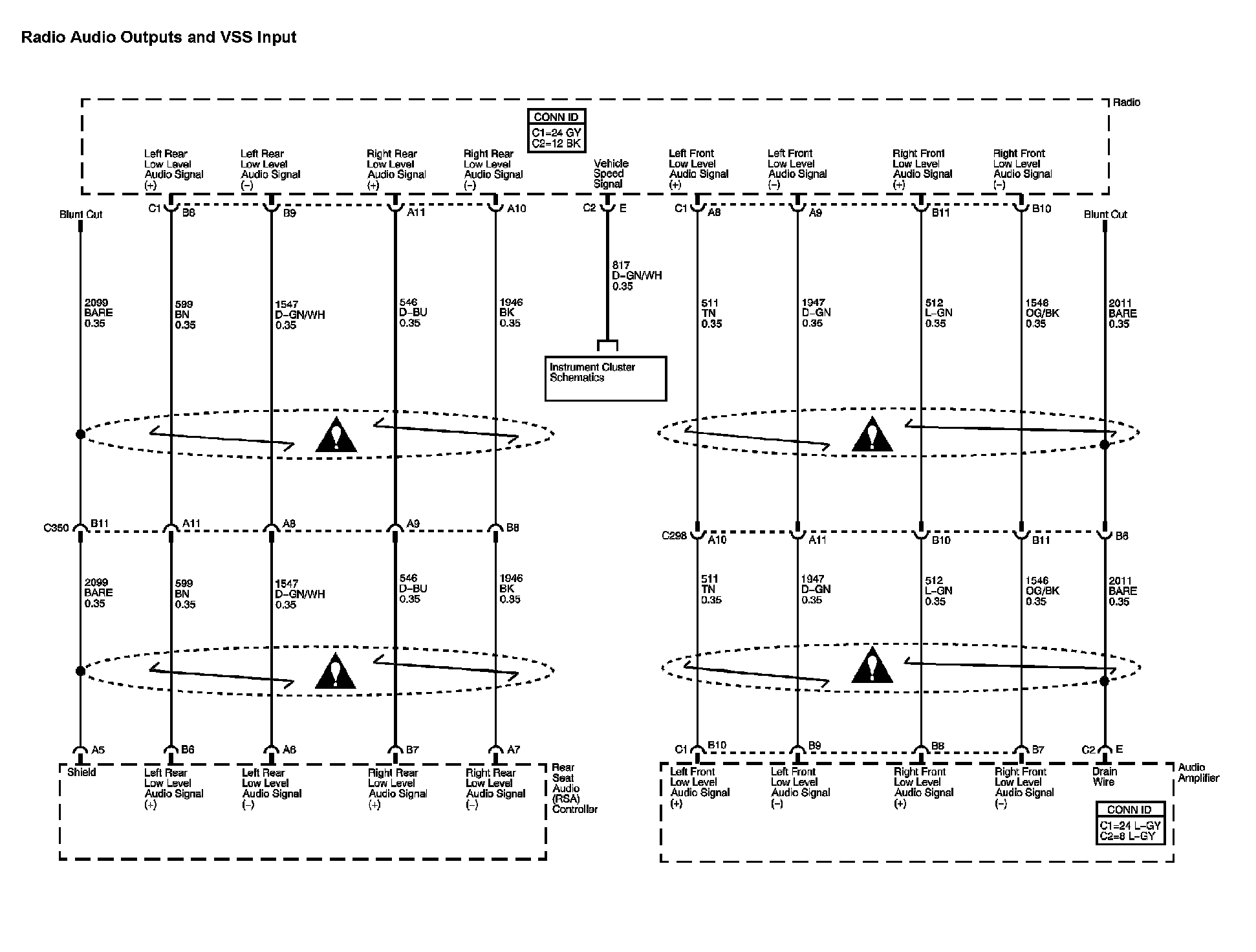

Radio/Audio System Diagram 5:

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
