Engine Controls Diagram 8

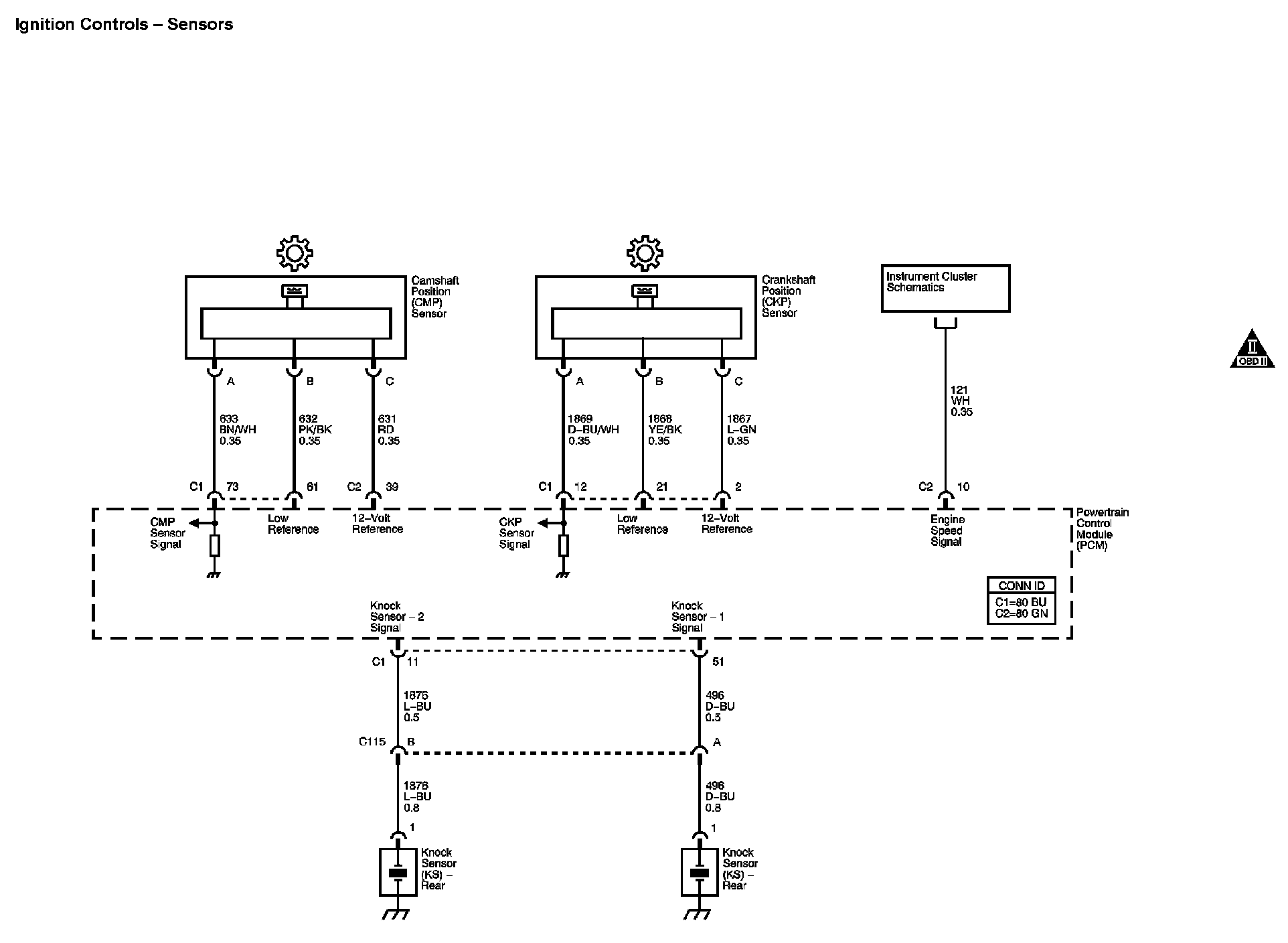

Engine Controls Diagram 8:






Next Diagram Engine Controls Diagram 9

Previous Diagram Engine Controls Diagram 7

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
