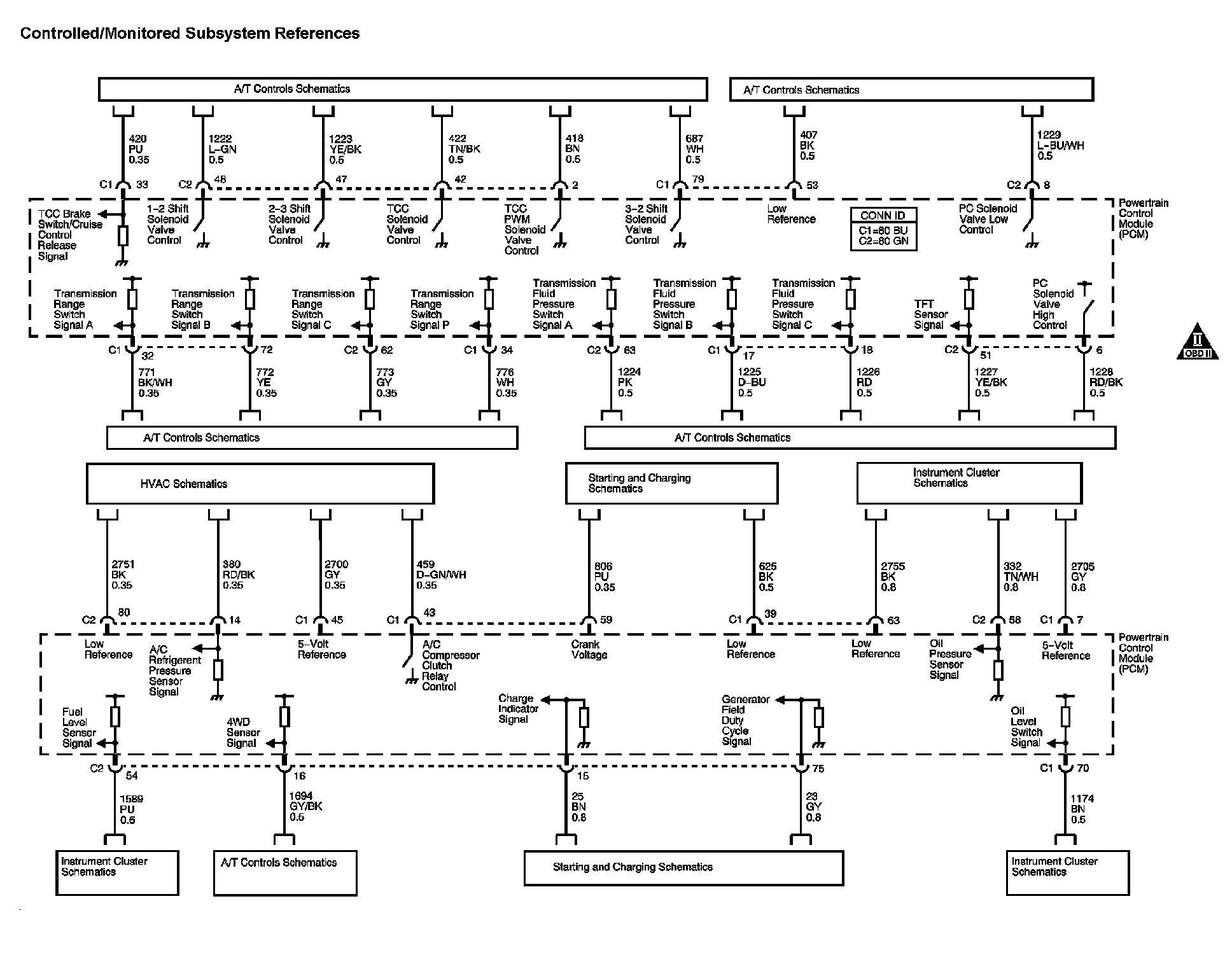

Engine Controls Diagram 11



Engine Controls Diagram 11:






Previous Diagram Engine Controls Diagram 10

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
