Interior Lights Diagram 3

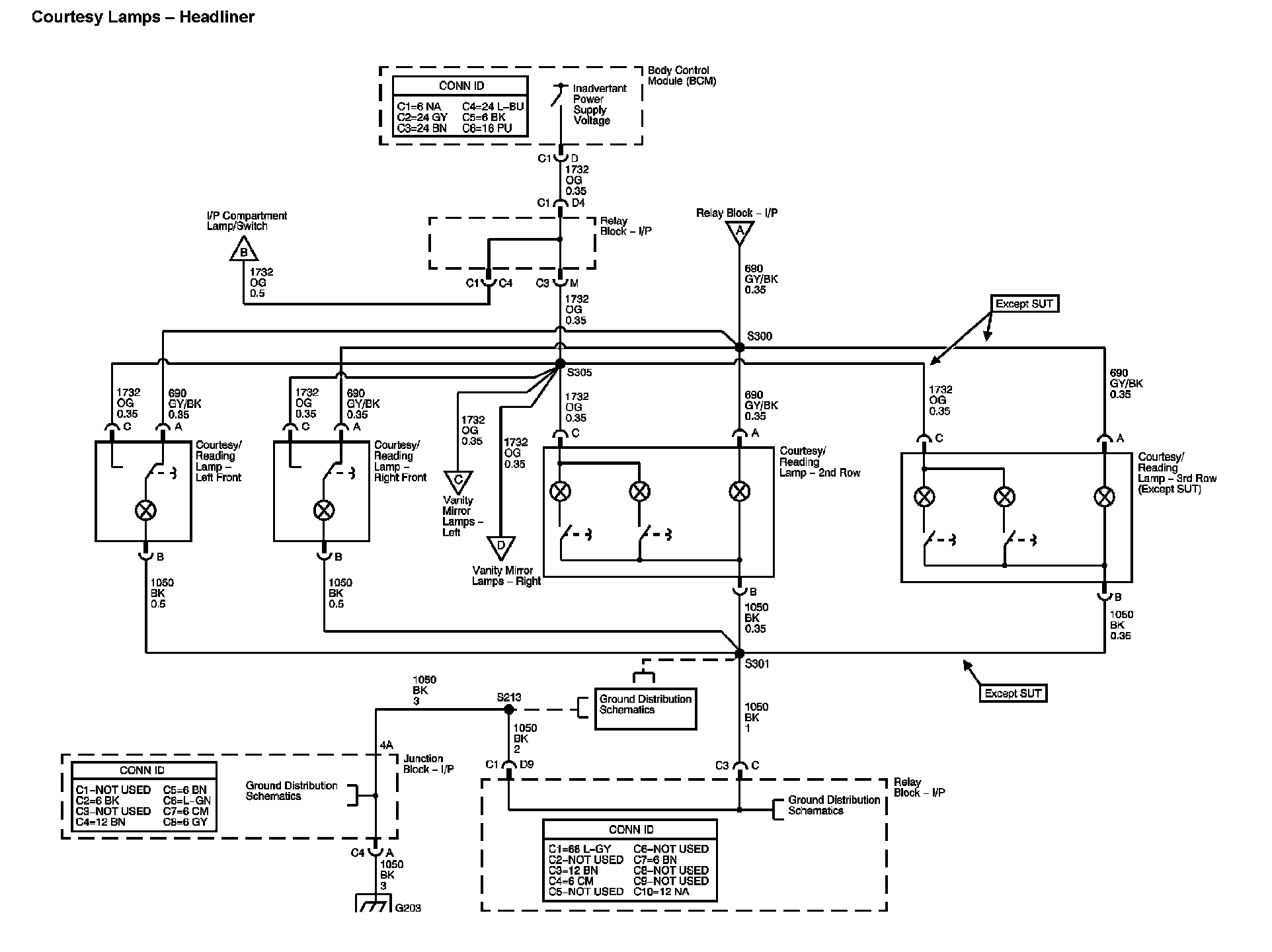

Interior Lights Diagram 3:






Previous Diagram: Interior Lights Diagram 2

Next Diagram: Interior Lights Diagram 4

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
