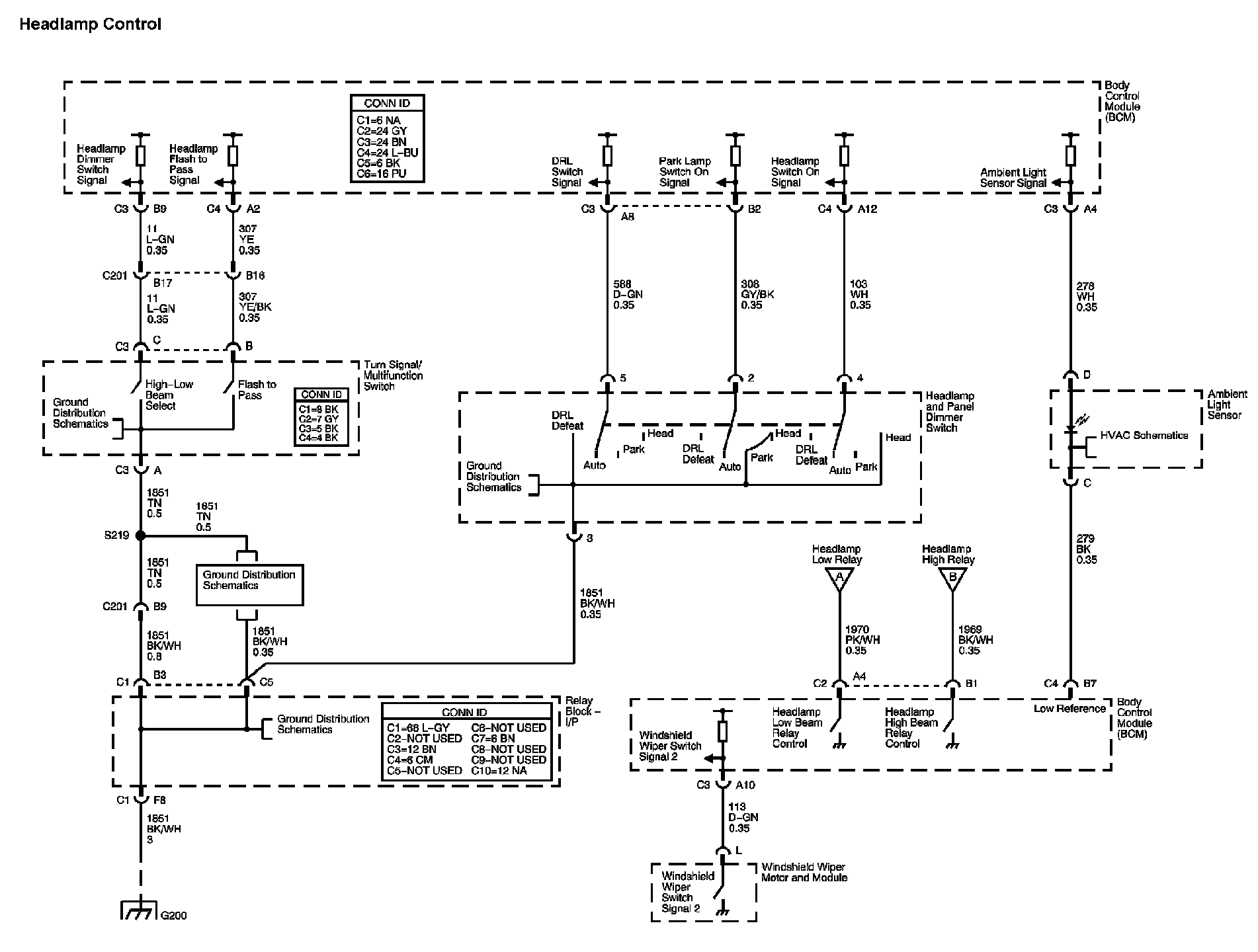

Headlights/Daytime Running Lights (DRL) Diagram 1

Headlights/Daytime Running Lights (DRL) Diagram 1:

Next Diagram: Headlights/Daytime Running Lights (DRL) Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
