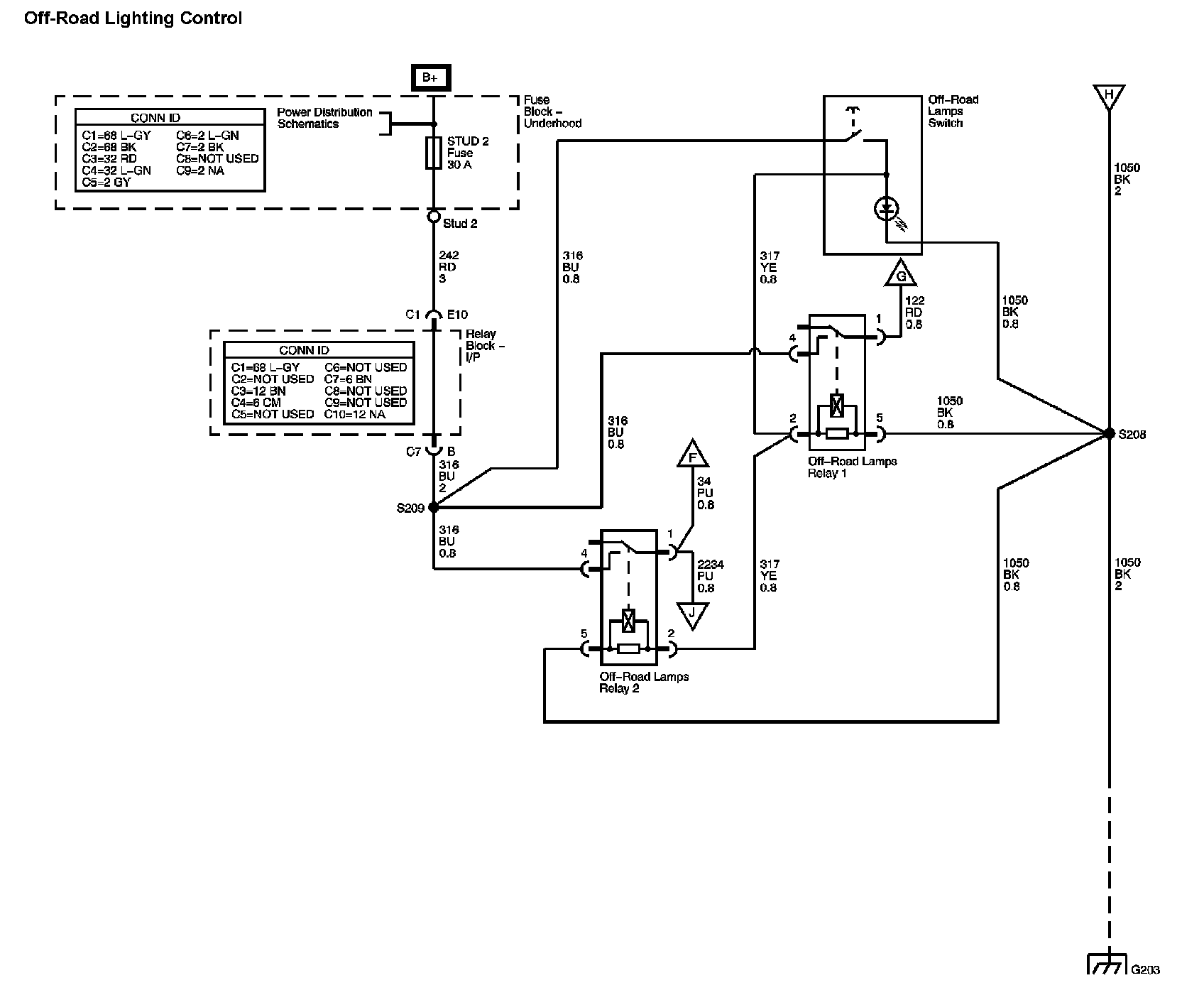

Exterior Lights Diagram 8



Exterior Lights Diagram 8:






Previous Diagram: Exterior Lights Diagram 7

Next Diagram: Exterior Lights Diagram 9

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
