System Diagram

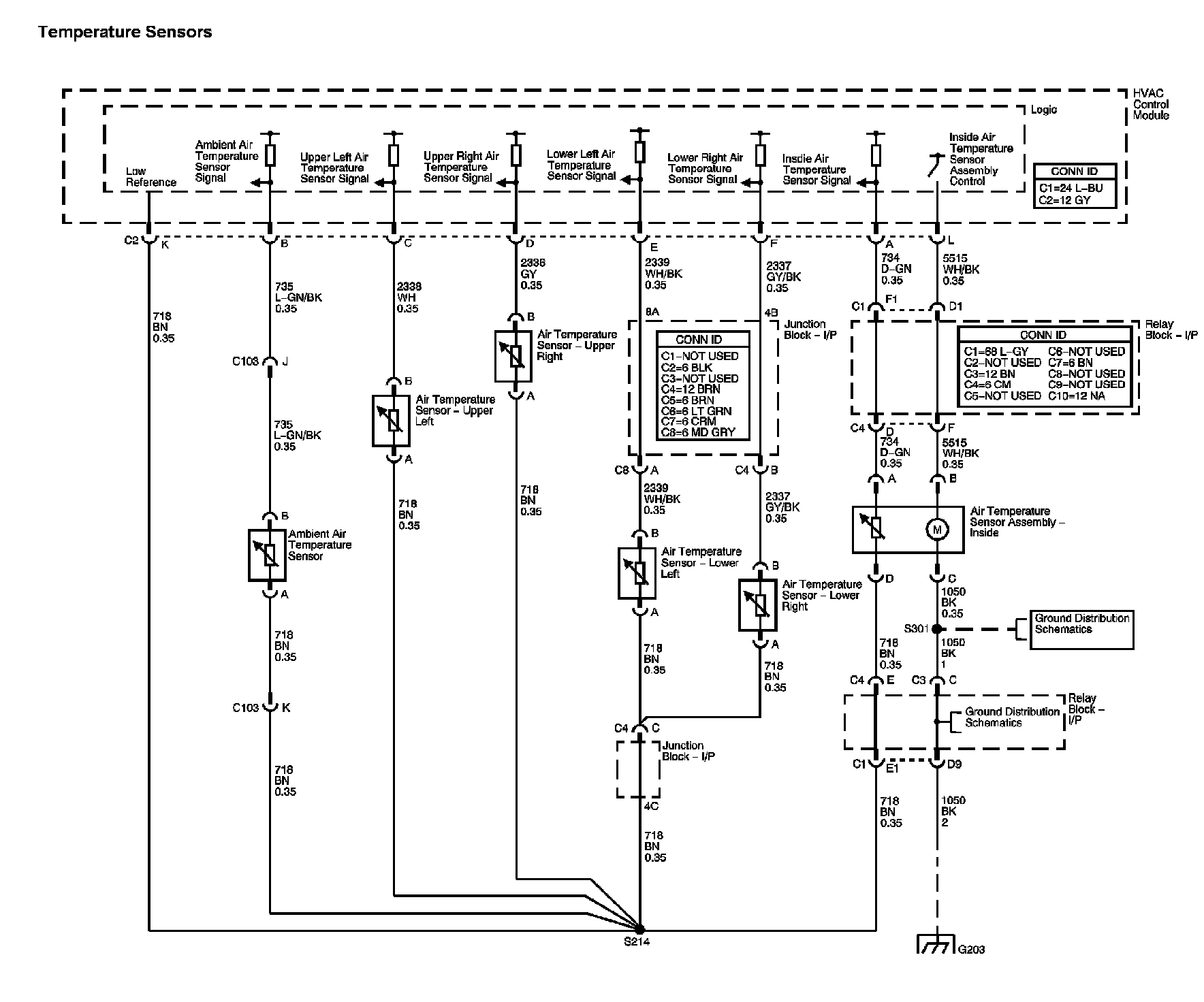

HVAC Diagram 1:

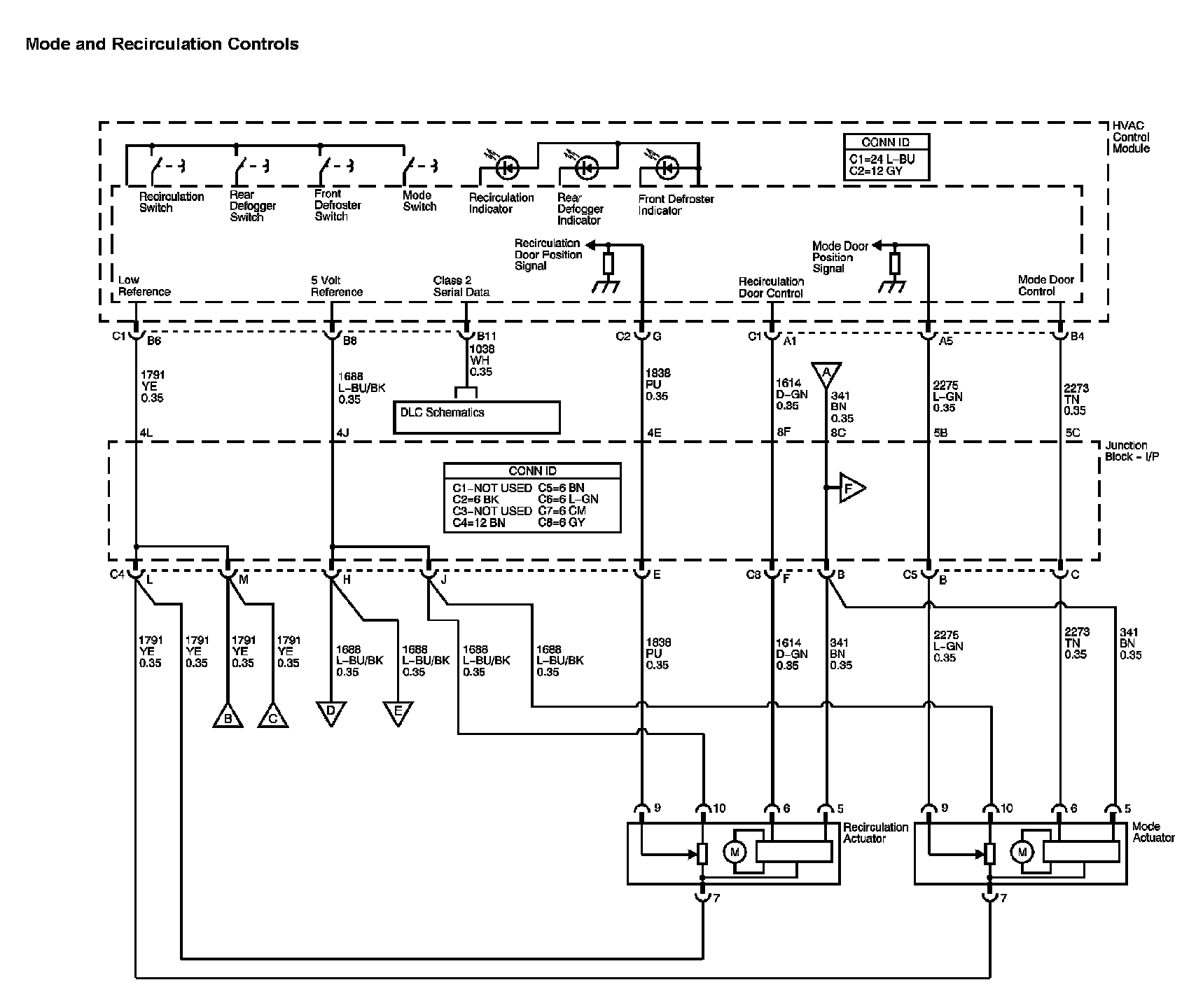

HVAC Diagram 2:

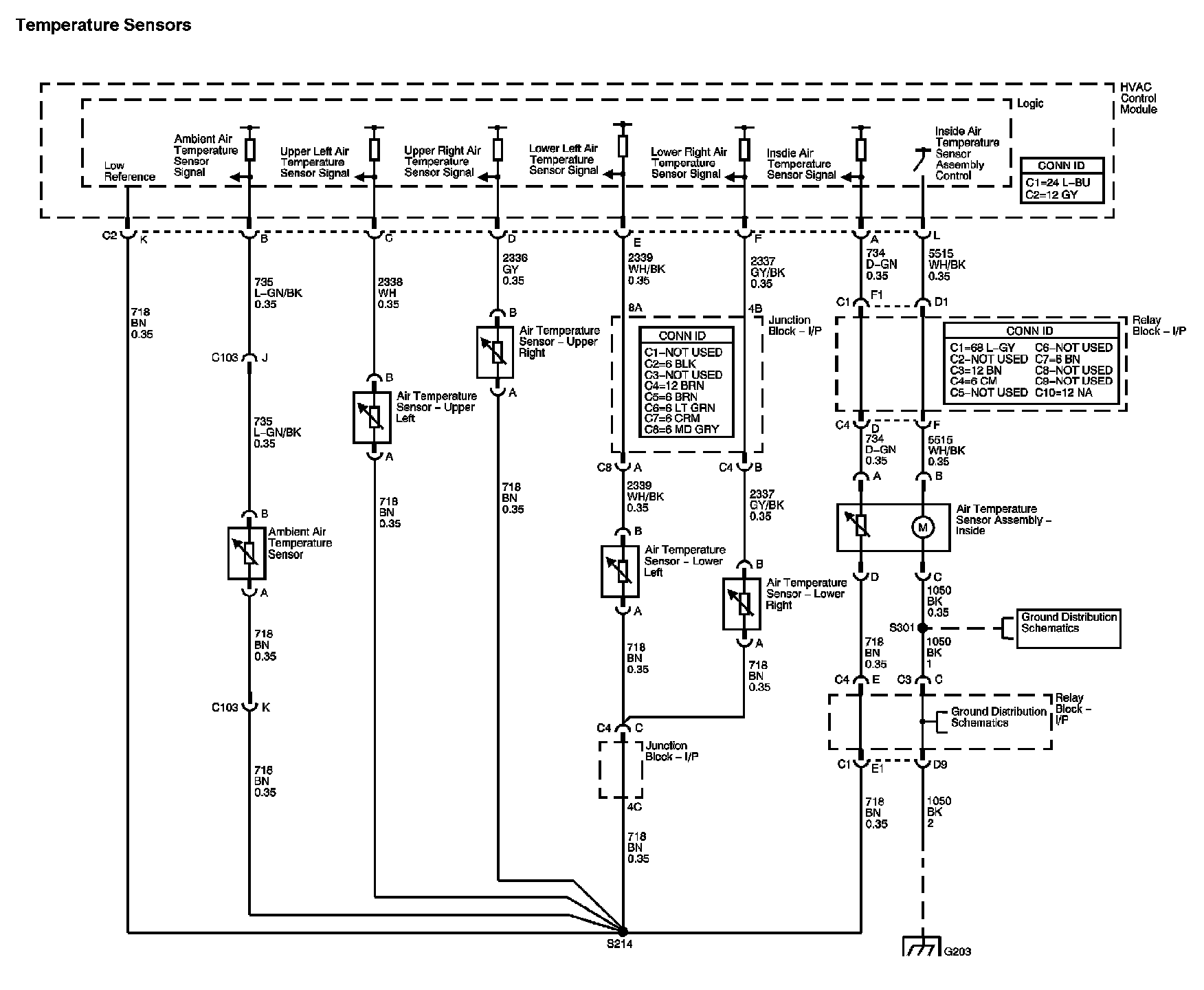

HVAC Diagram 3:

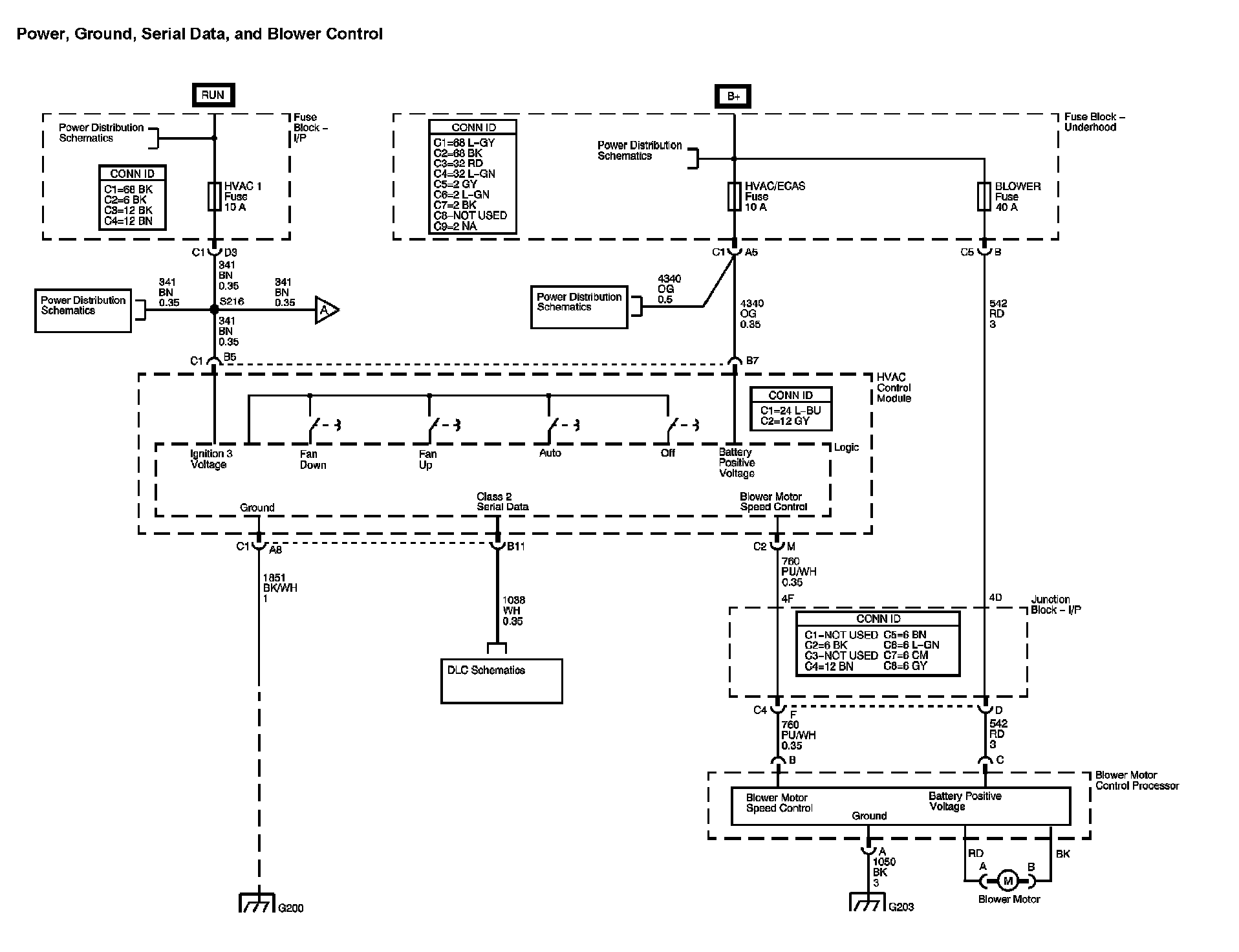

HVAC Diagram 4:

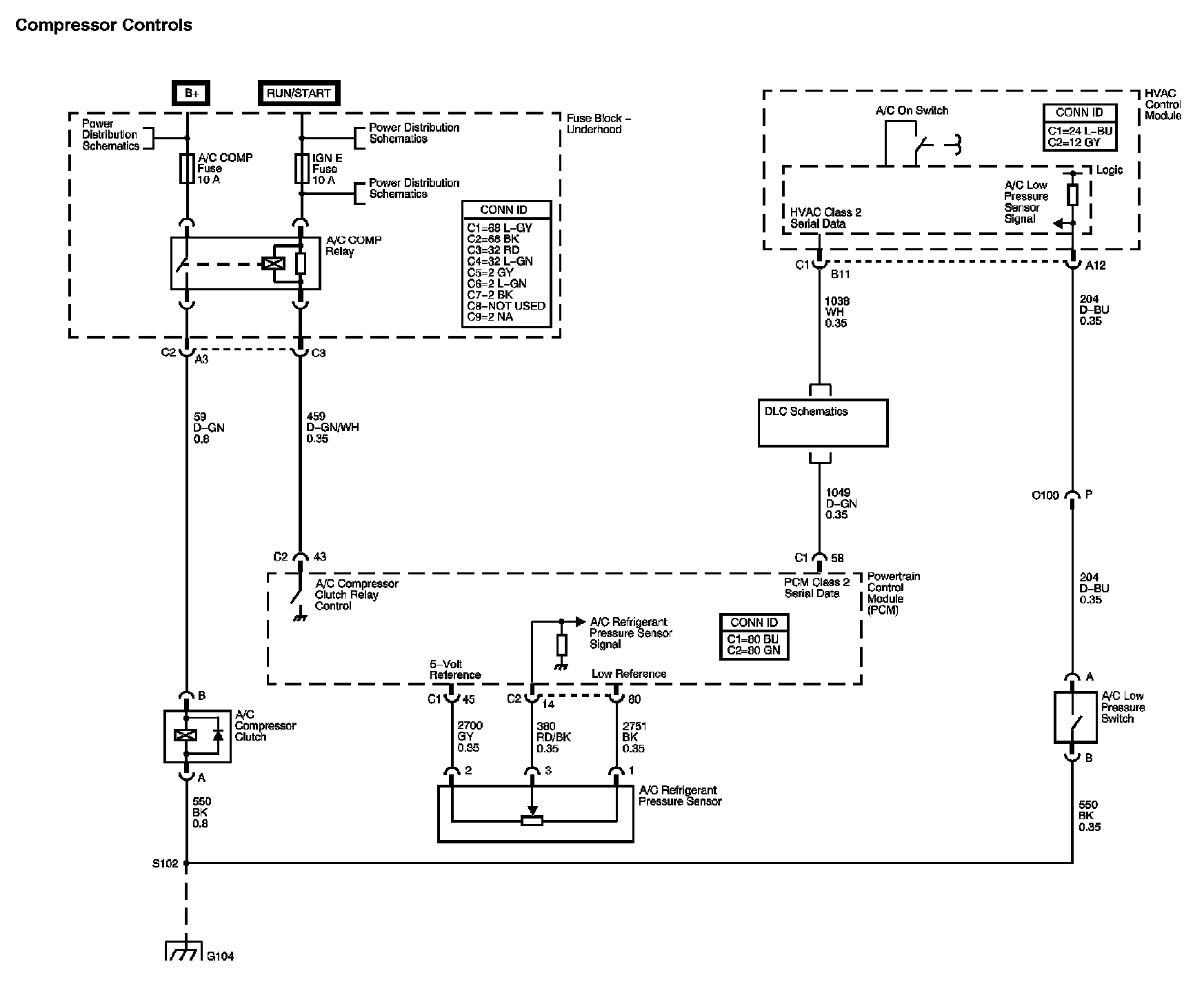

HVAC Diagram 5:






Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
