Antilock Brakes / Traction Control Systems

ABS SCHEMATICS

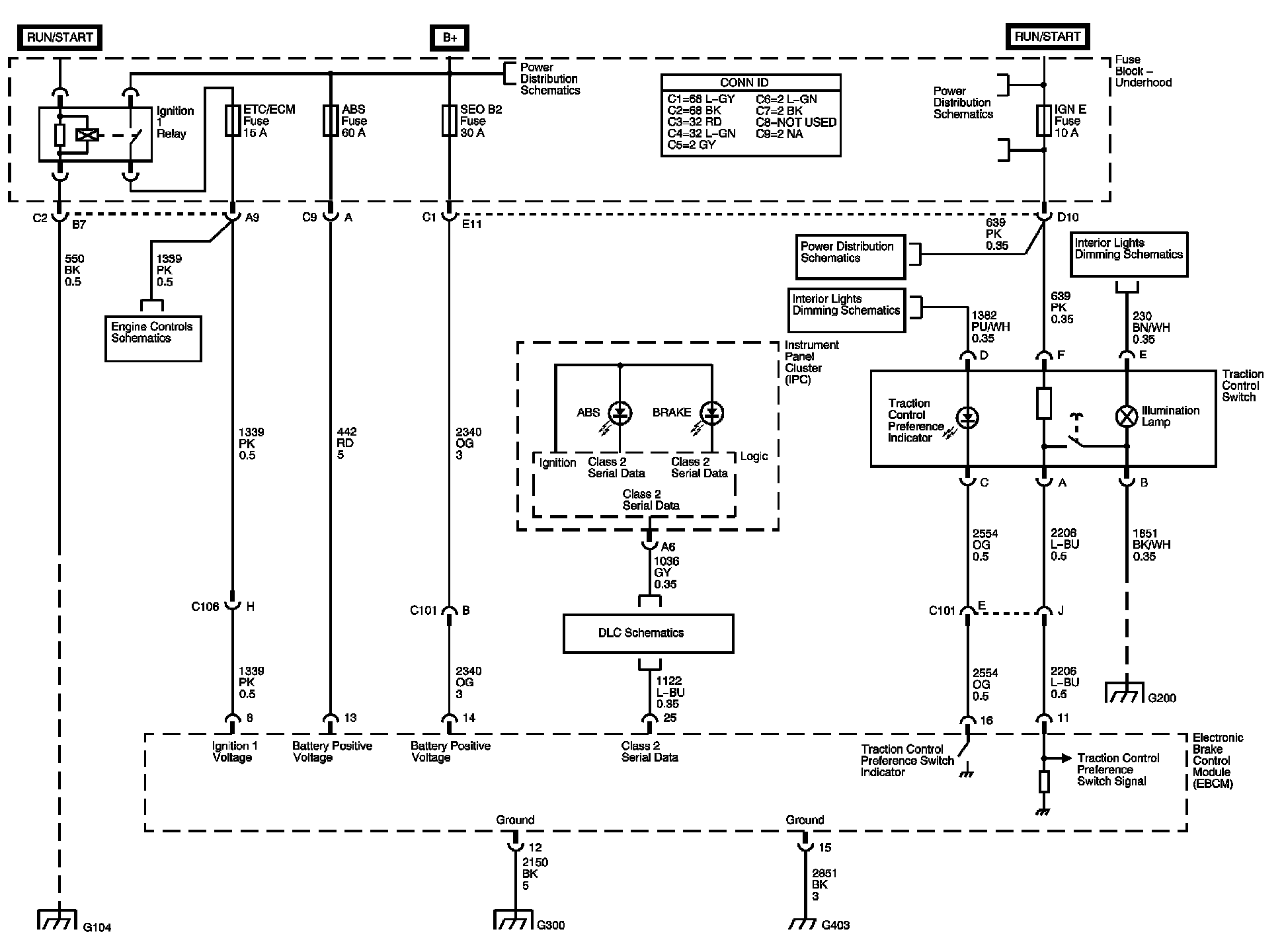

ABS Schematics (Part 1):

Power, Ground, Serial Data, Indicator, and Traction Controls

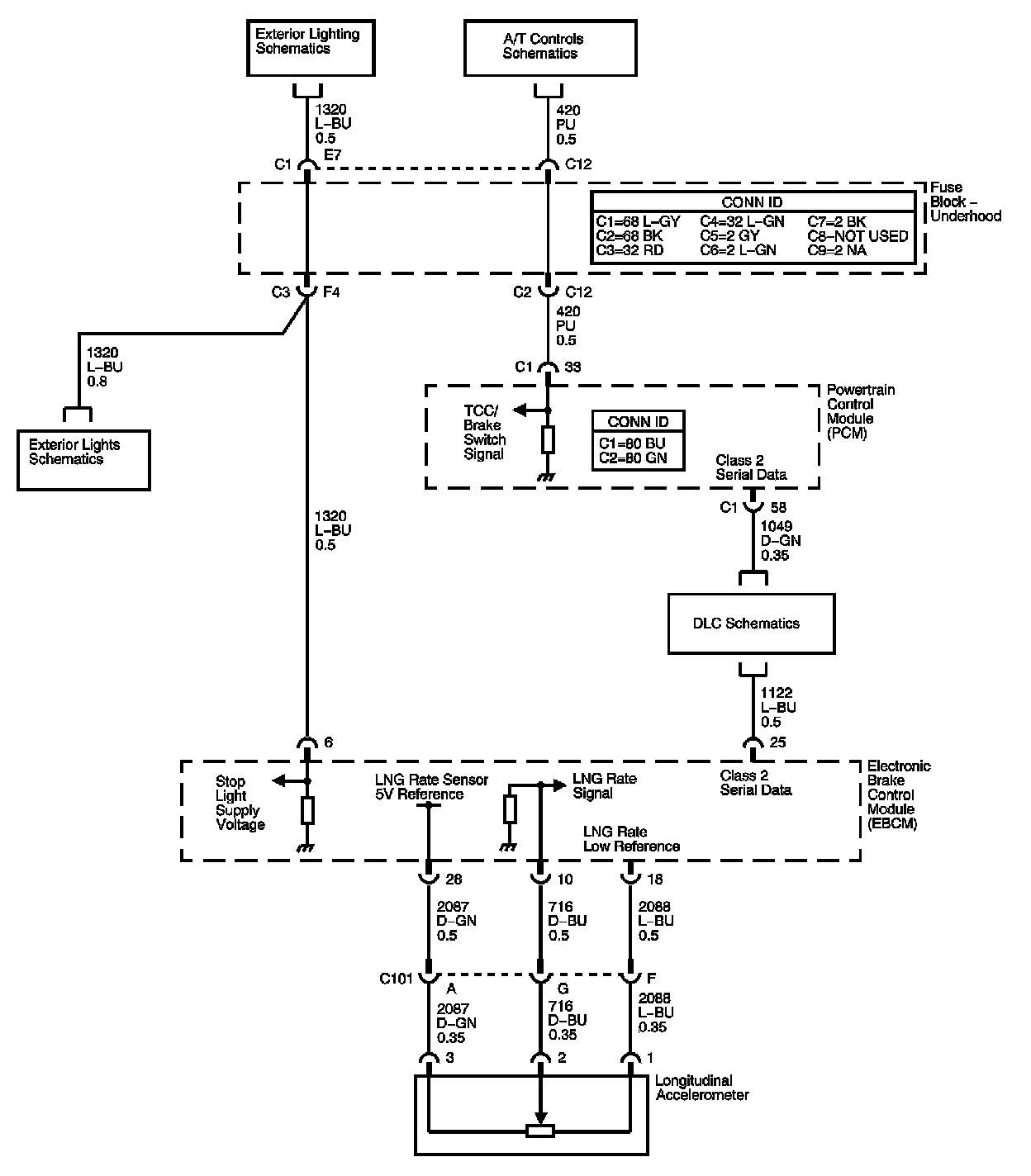

ABS Schematics (Part 2):

Stop Lamp Switch and Longitudinal Accelerometer Signals

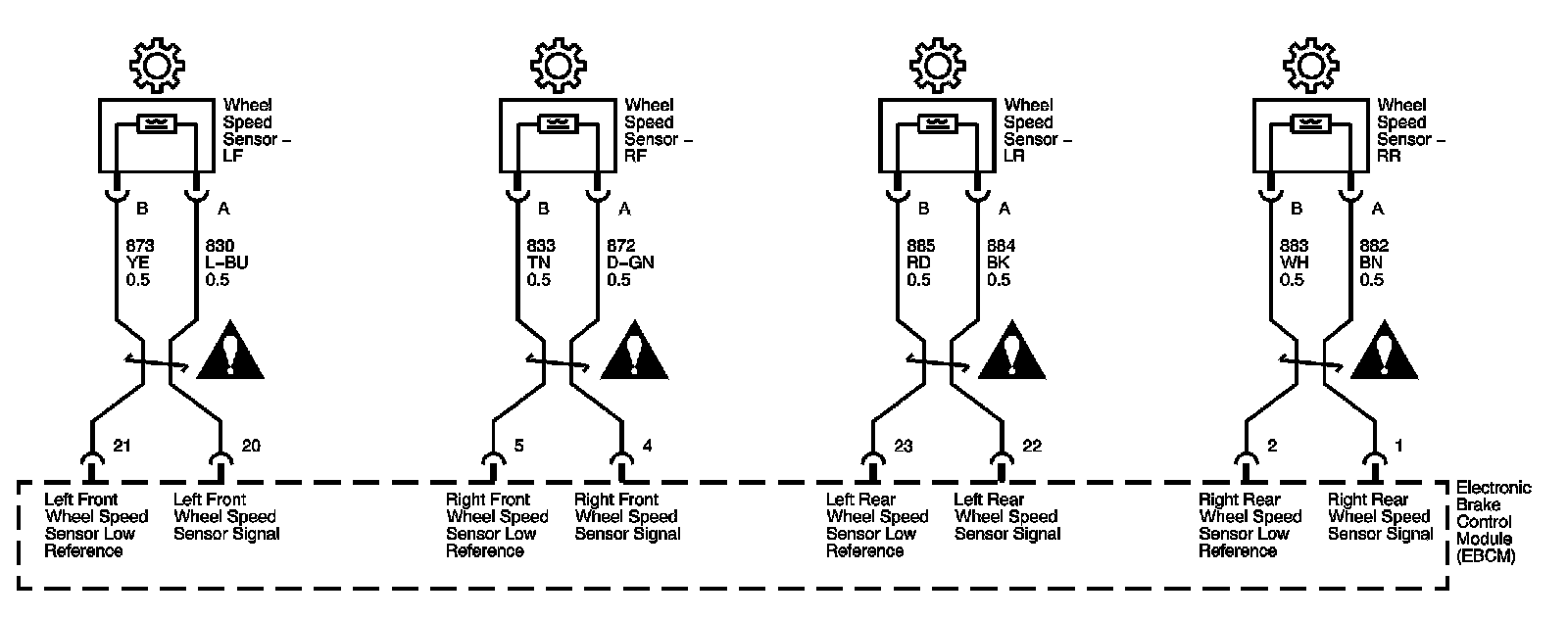

ABS Schematics (Part 3):

Wheel Speed Sensor Signals


Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
