Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C300 - C399 >> C378

C378

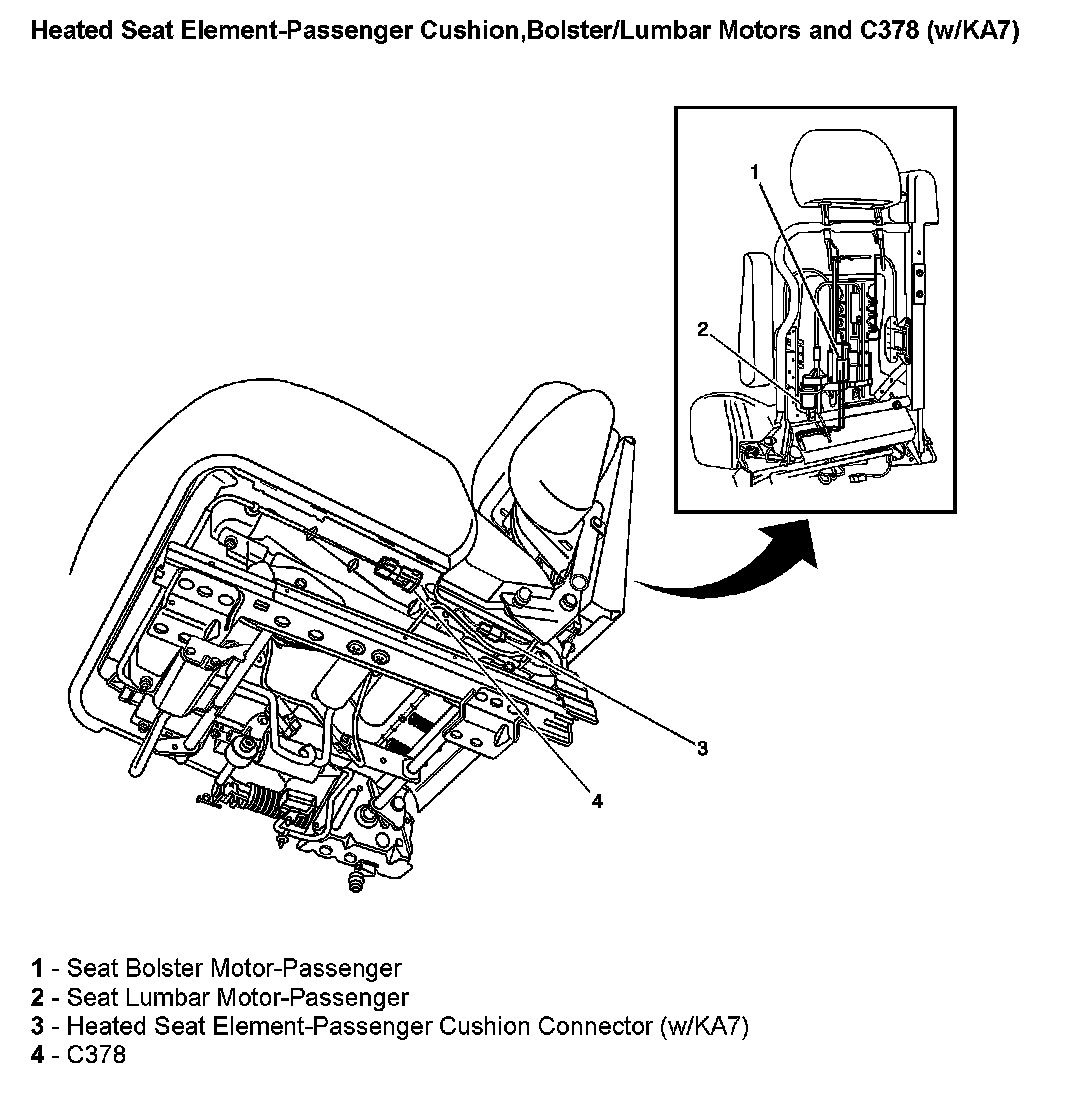

Heated Seat Element-Passenger Cushion,Bolster/Lumbar Motors And C378 (With RPO Code KA7):

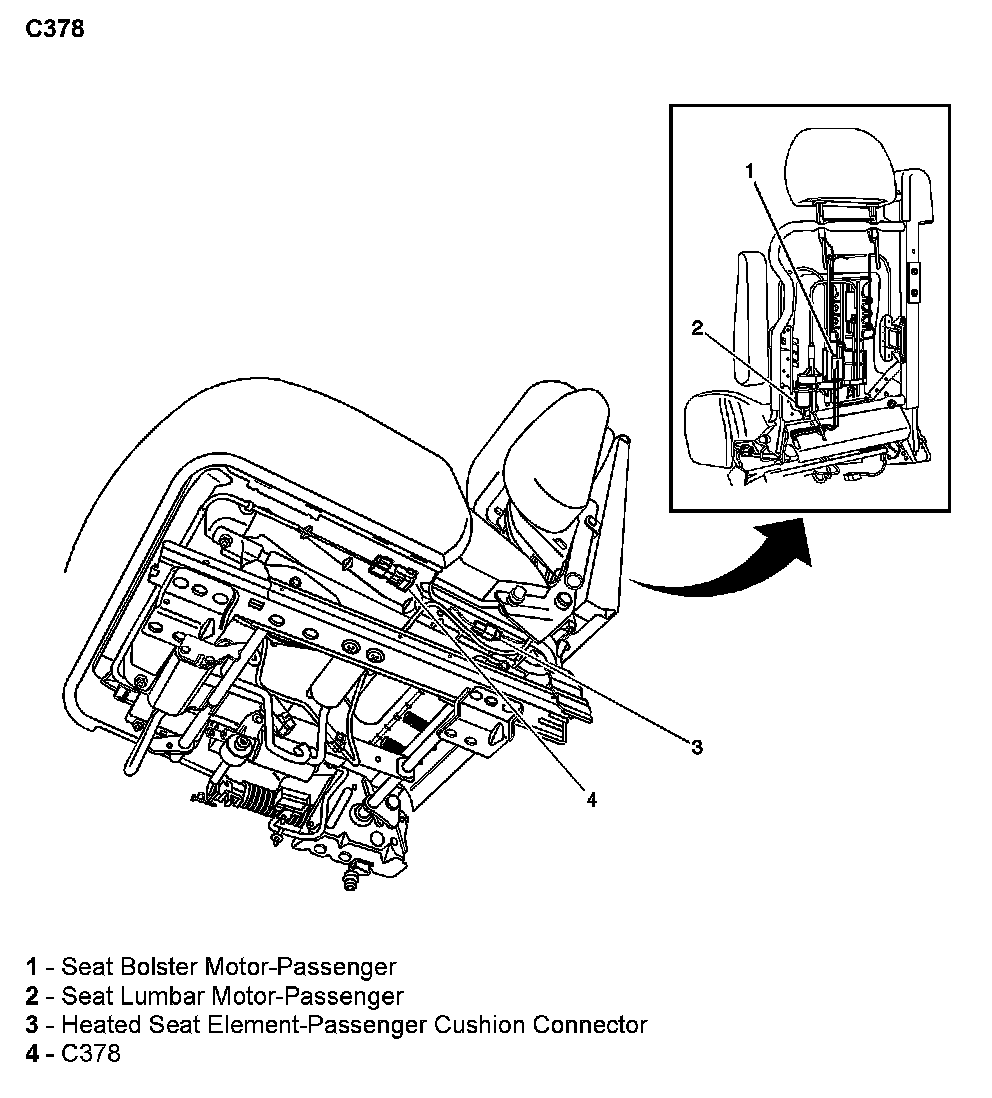

C378:
