Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C300 - C399 >> C310

C310

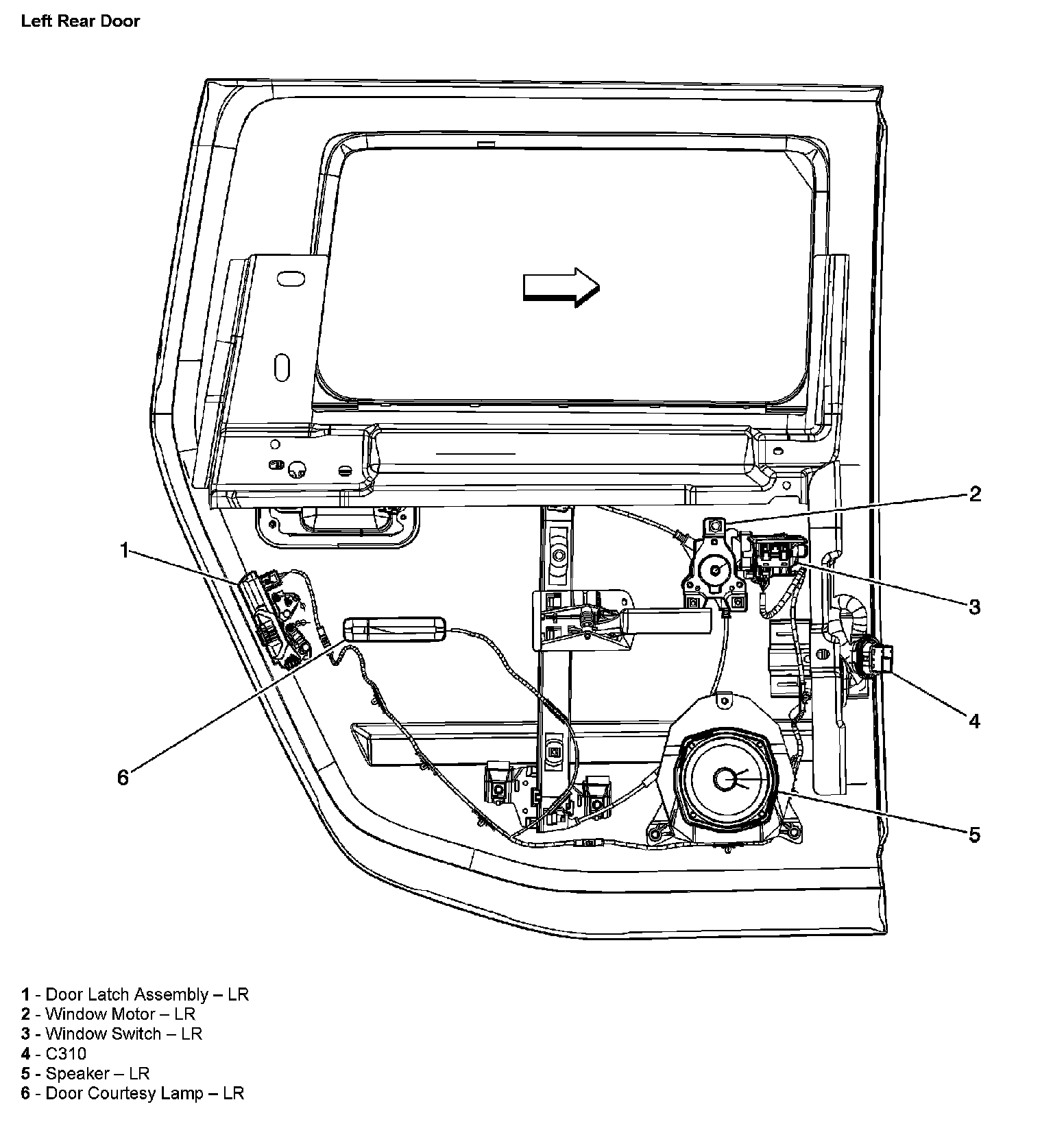

Left Rear Door:

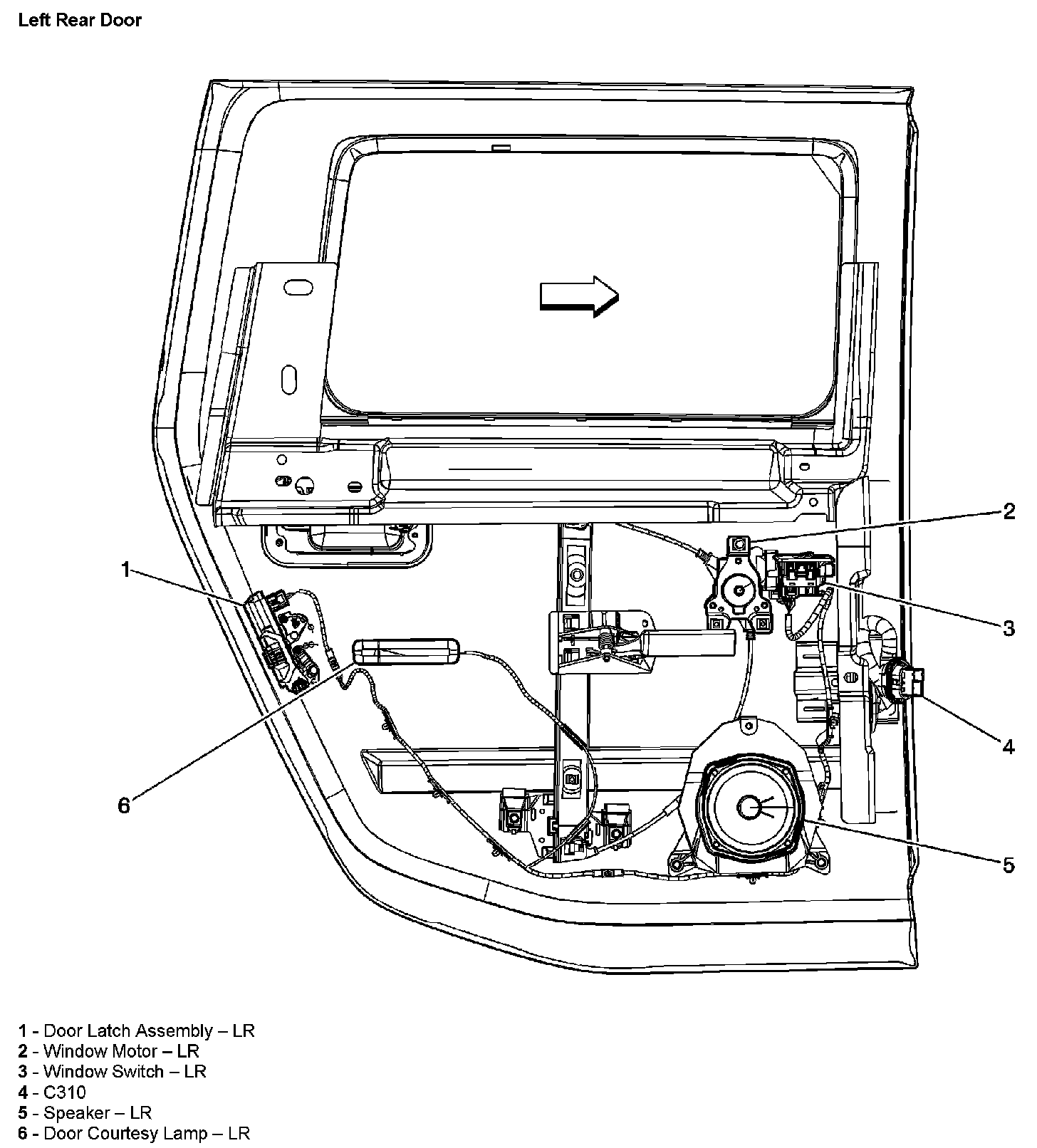

Left Rear Door:

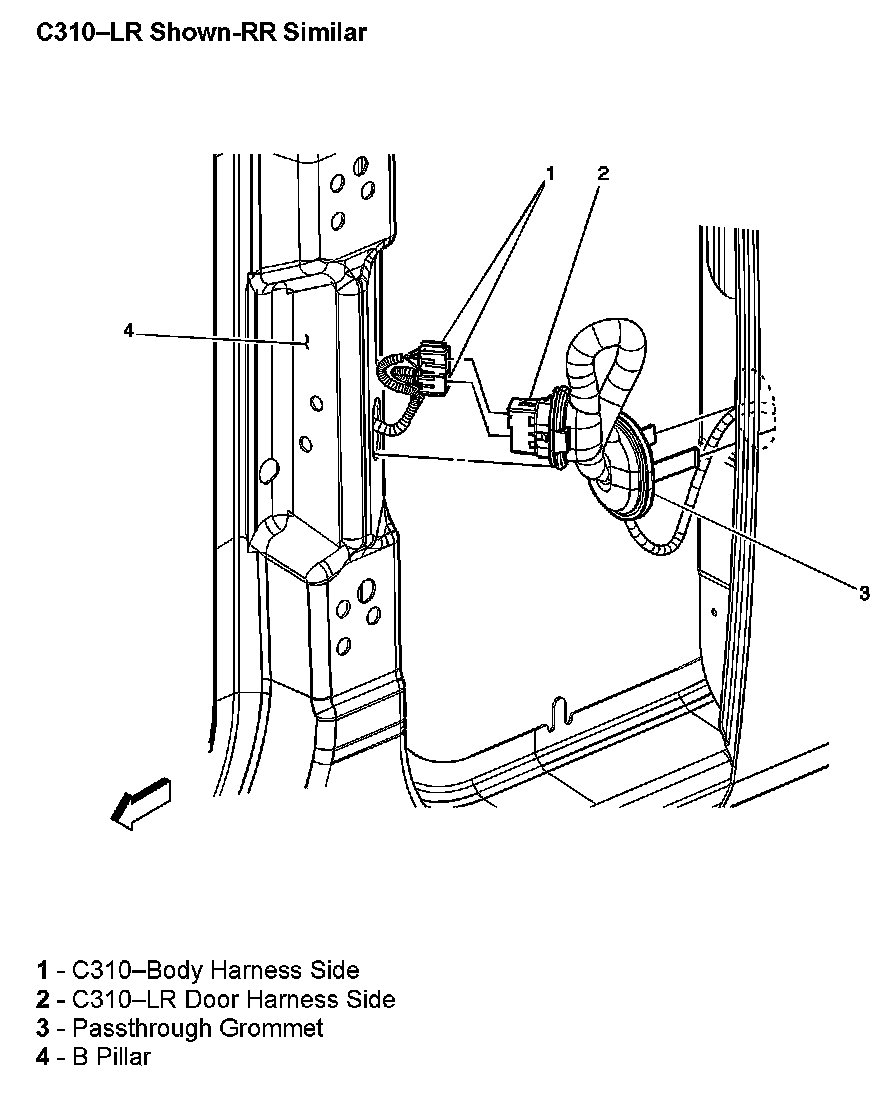

C310 LR Shown-RR Similar:
