Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C100 - C199 >> C158

C158

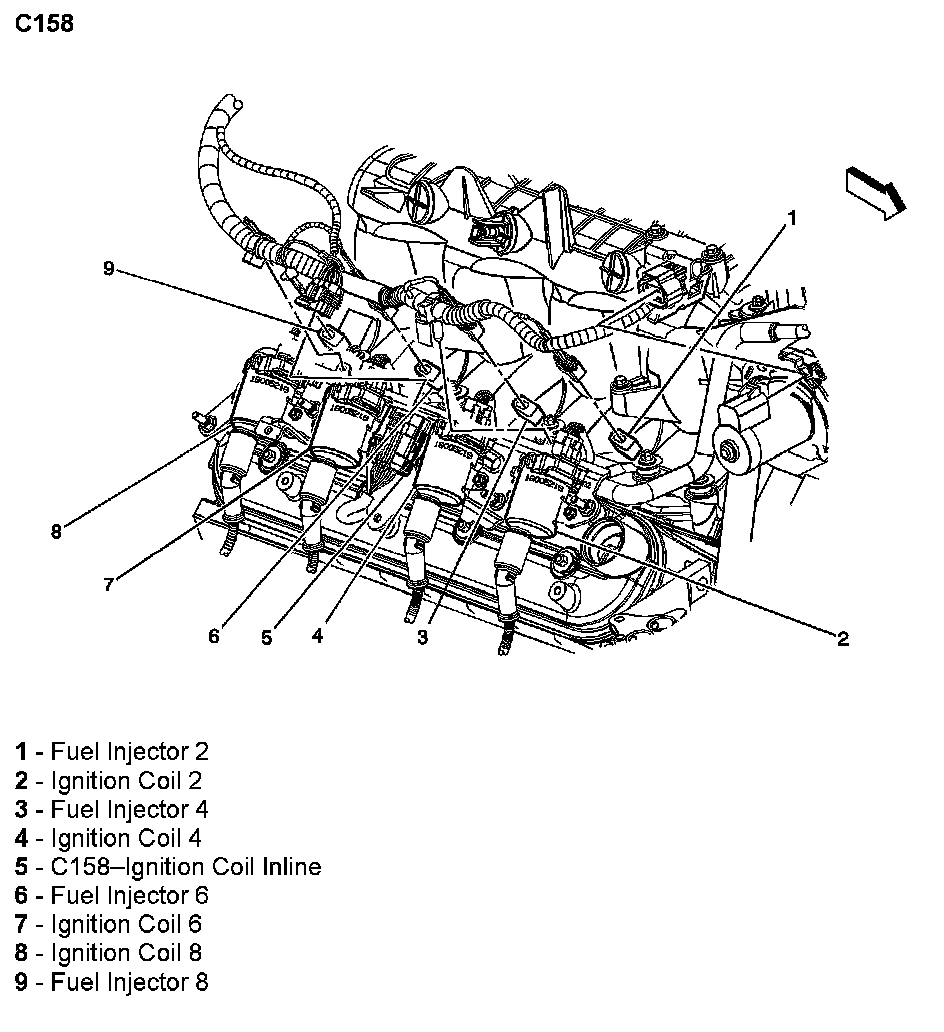

C158:

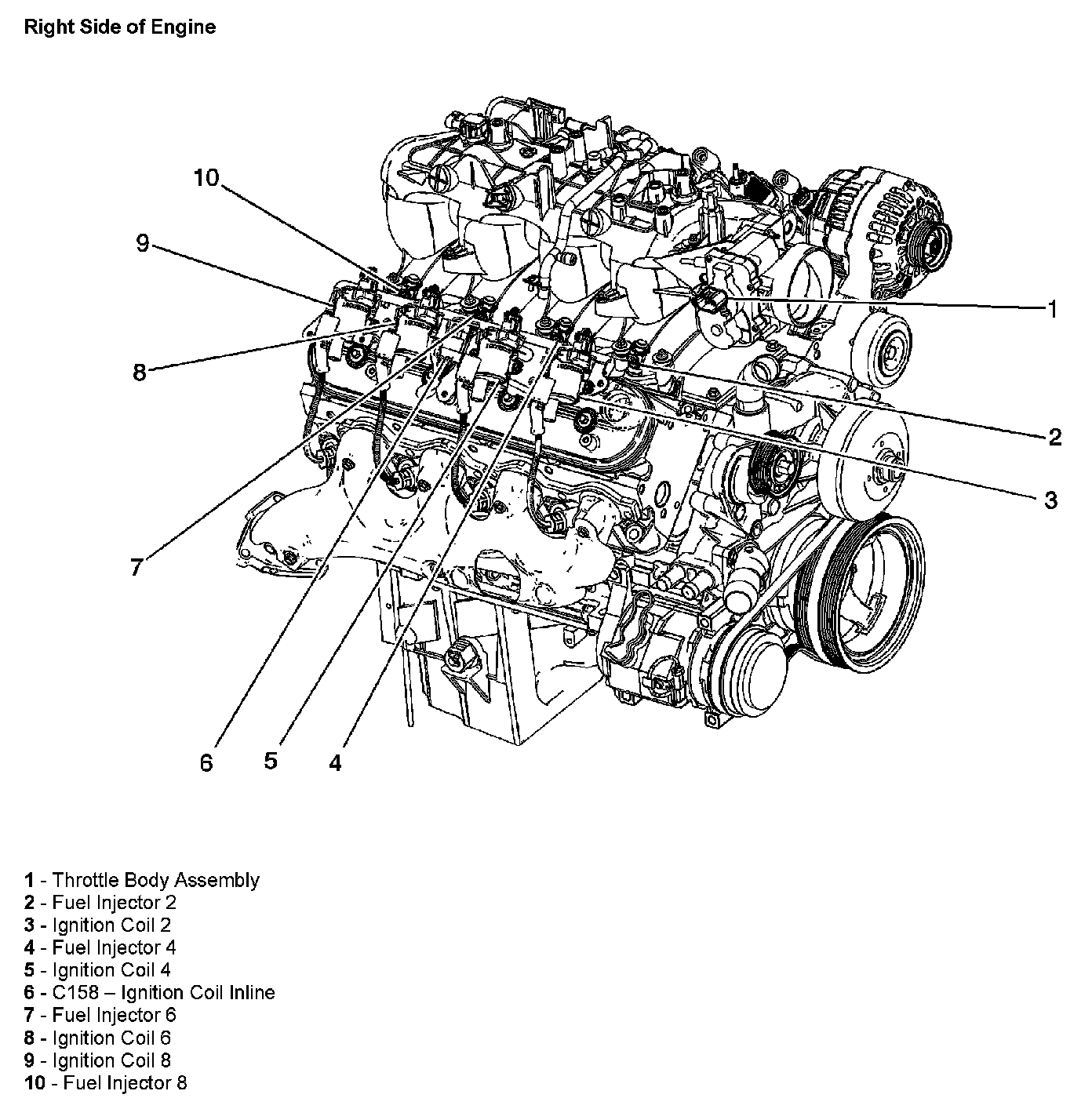

Right Side Of Engine:
