Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio

Radio

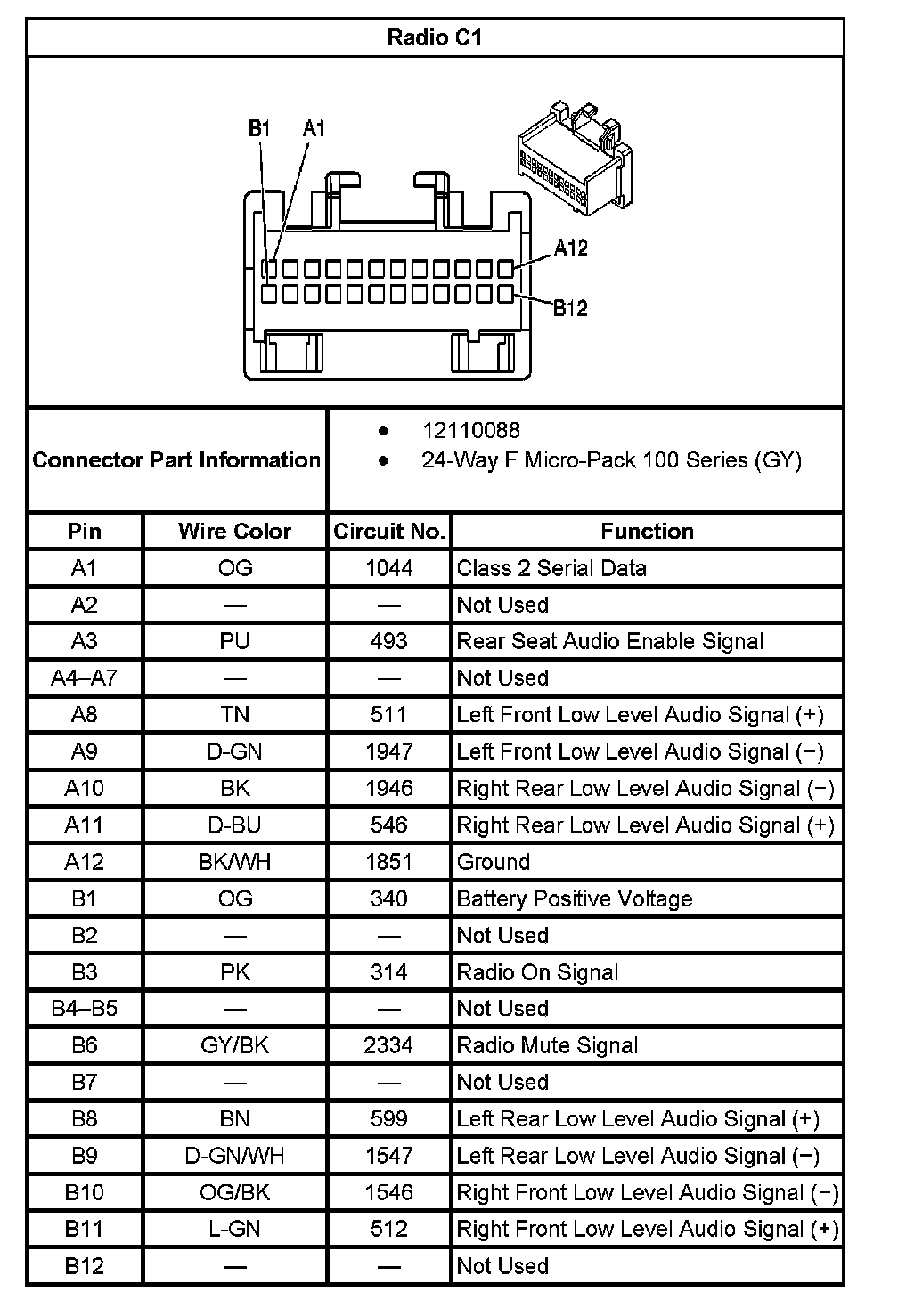

Radio C1:



Radio C2:



Radio C3 (With RPO Code UM8):
