Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C400 - C499 >> C400

C400

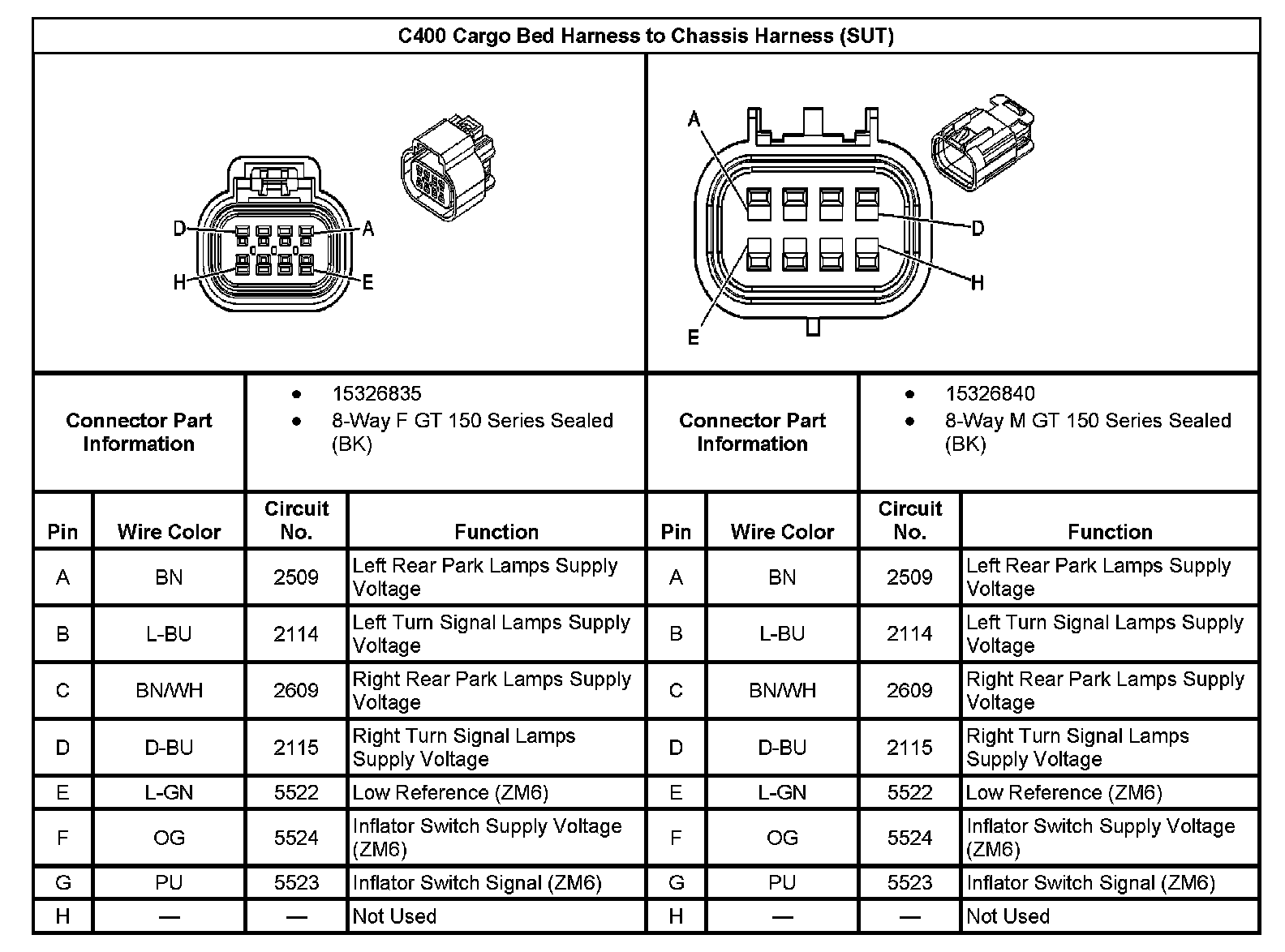

C400 Cargo Bed Harness To Chassis Harness (SUT):
