C327

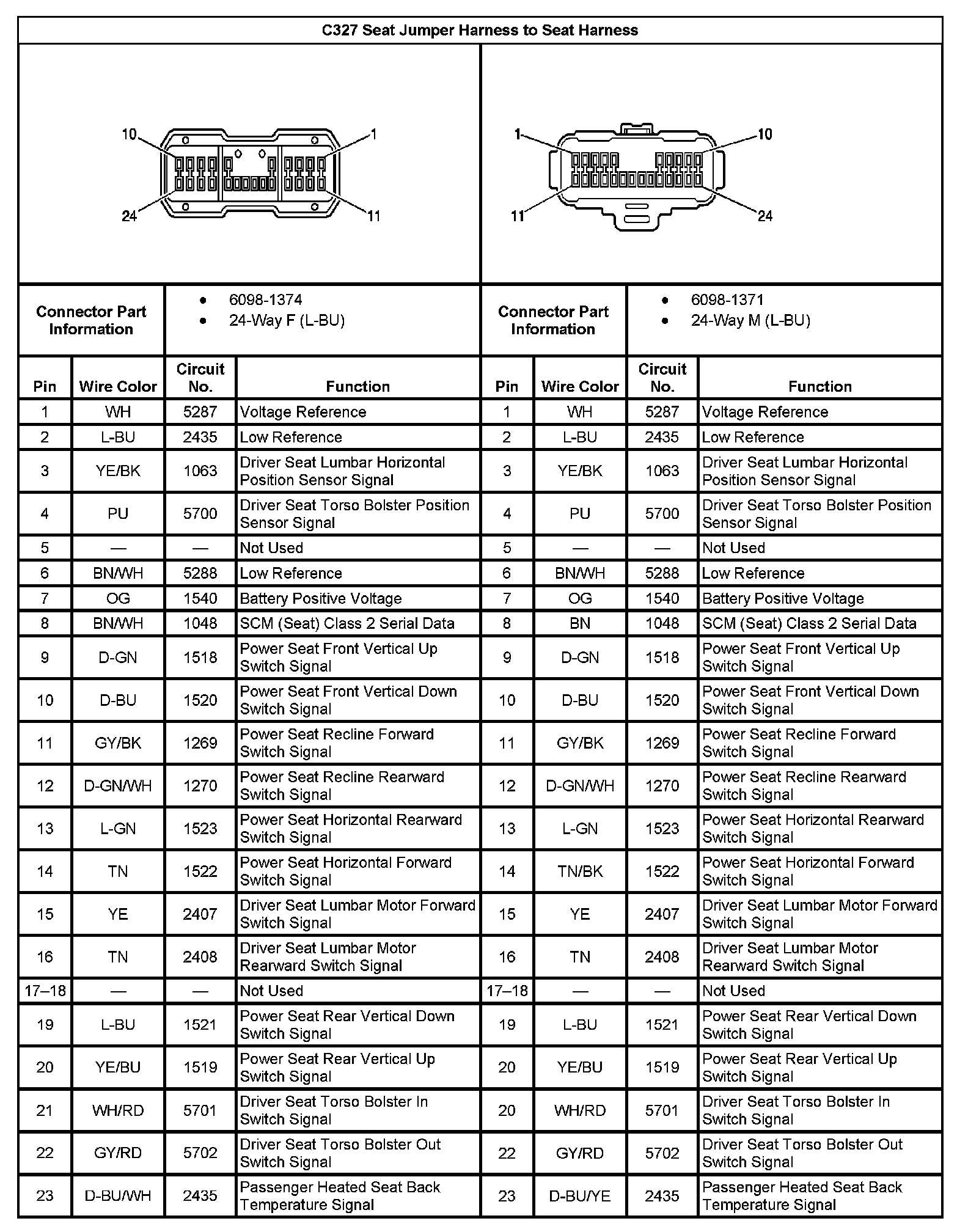

C327 Seat Jumper Harness To Seat Harness (Part 1):

C327 Seat Jumper Harness To Seat Harness (Part 2):
