C201
C201

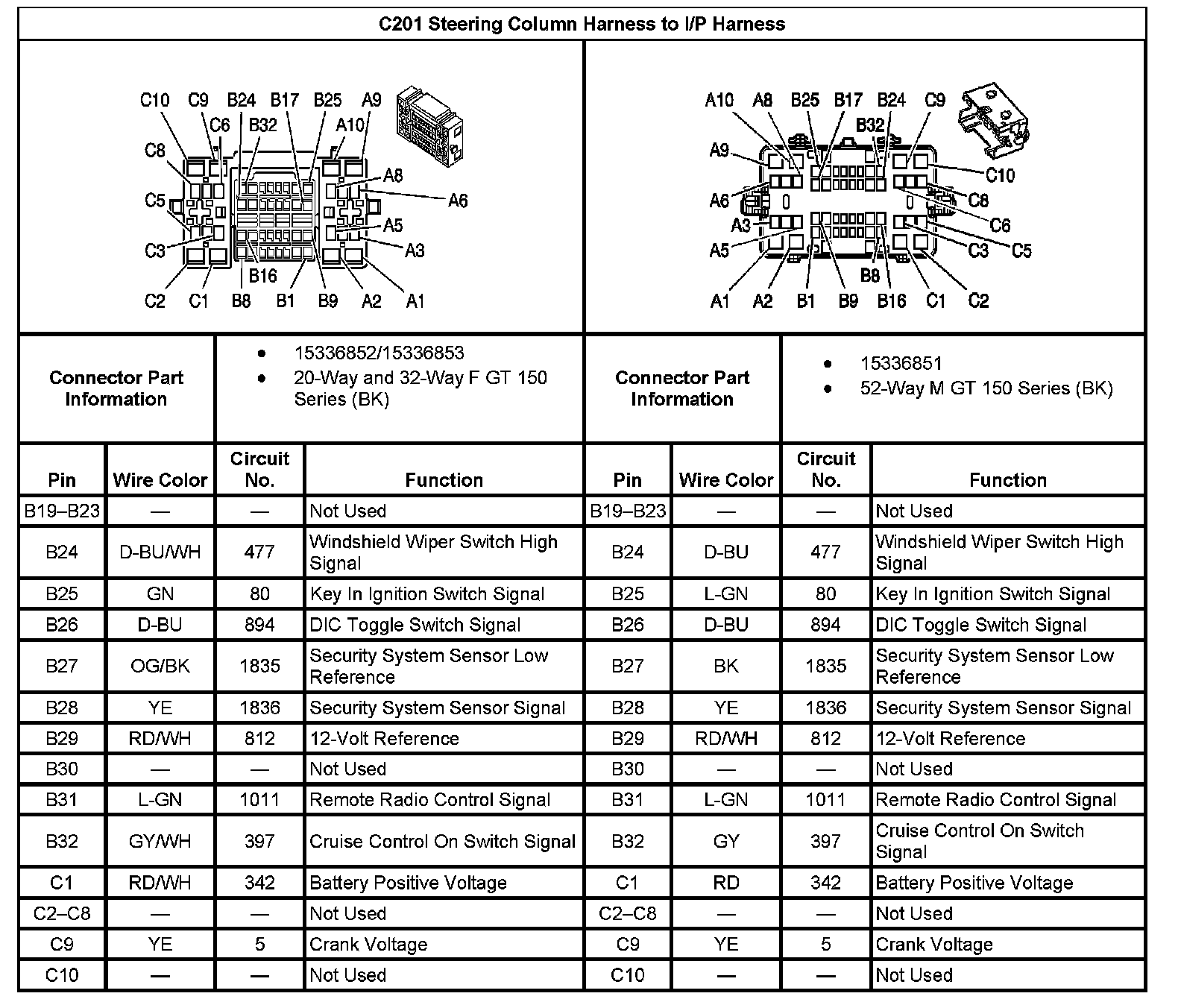

C201 Steering Column Harness To I/P Harness (Part 1):

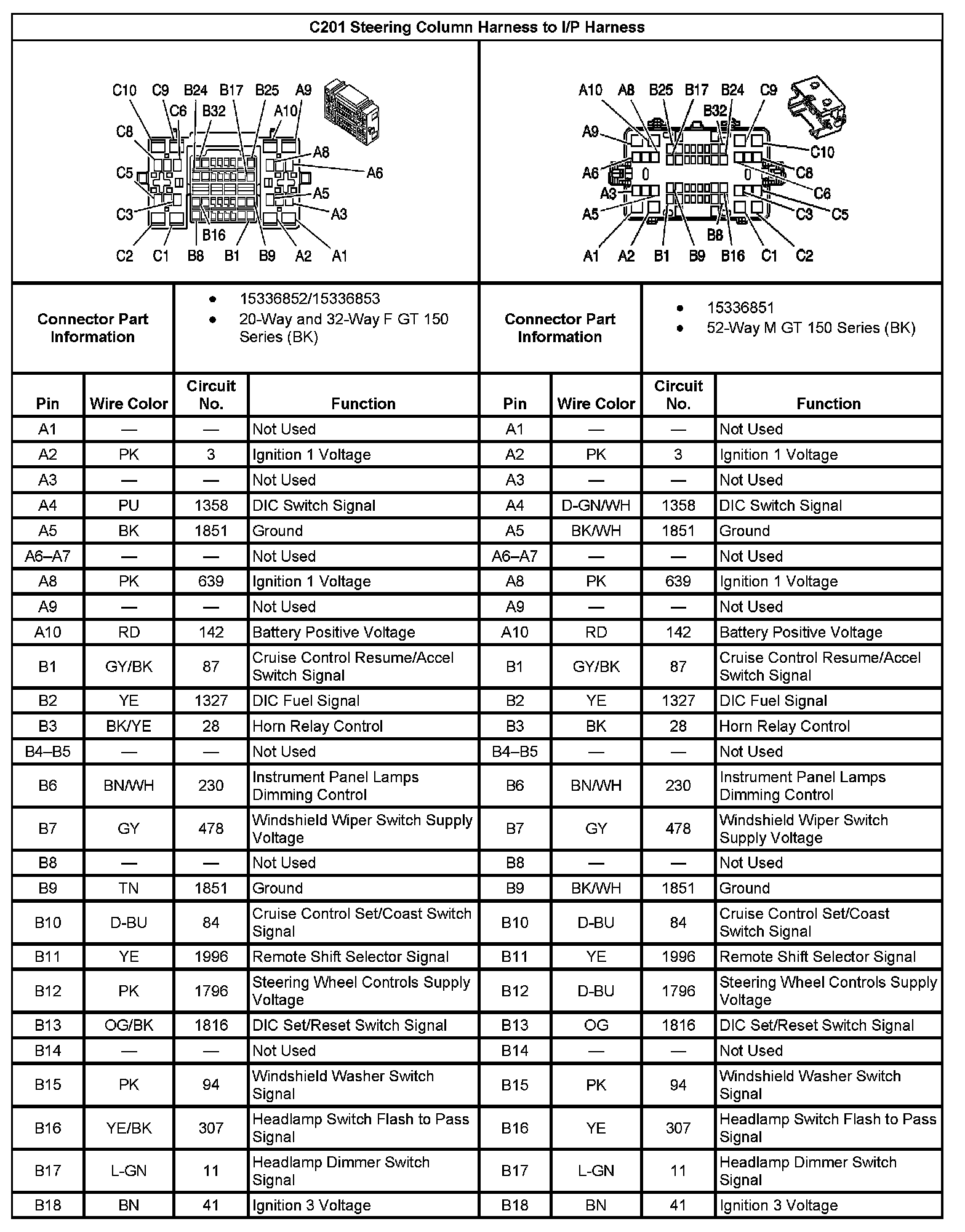

C201 Steering Column Harness To I/P Harness (Part 2):
