C105
C105

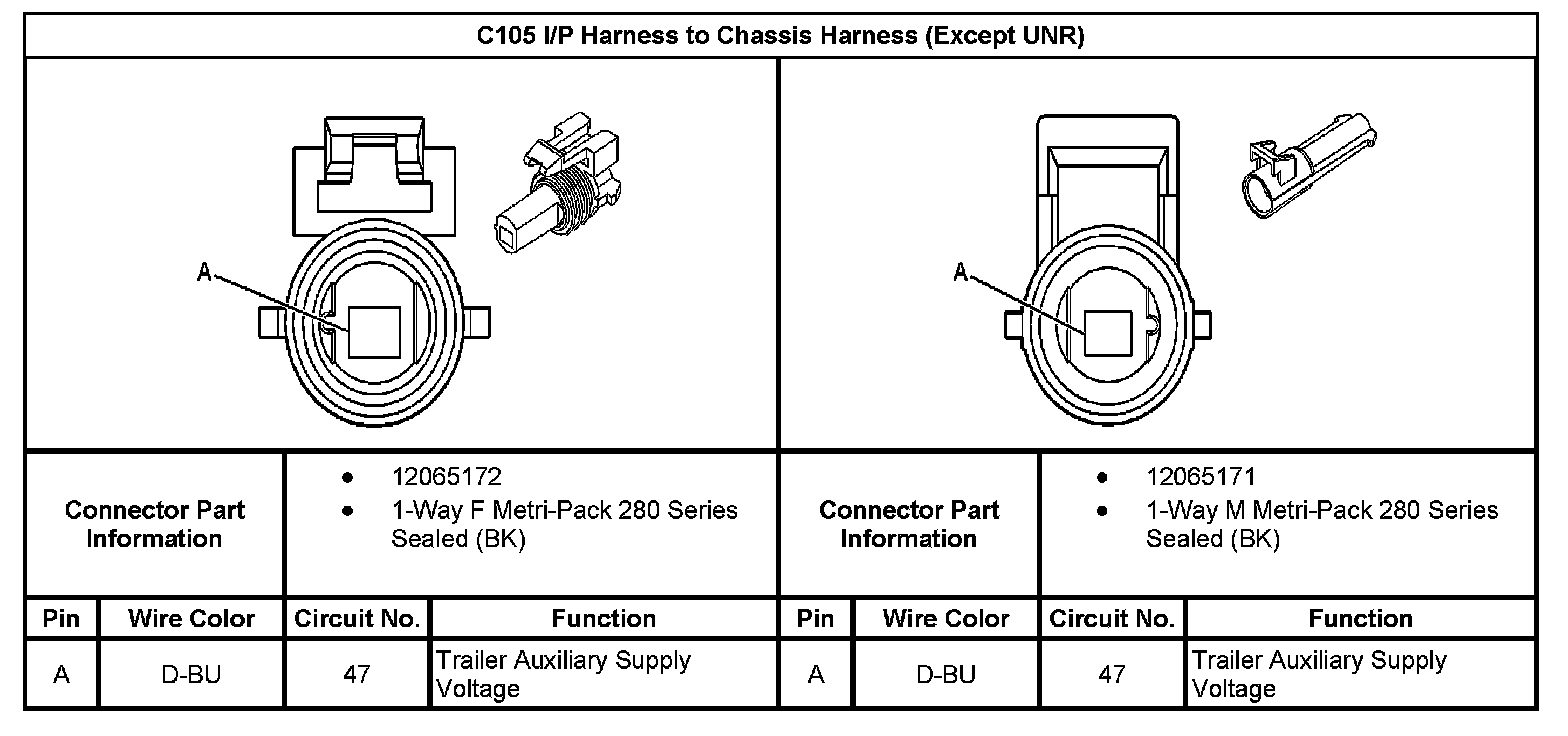

C105 I/P Harness To Chassis Harness (Except UNR):

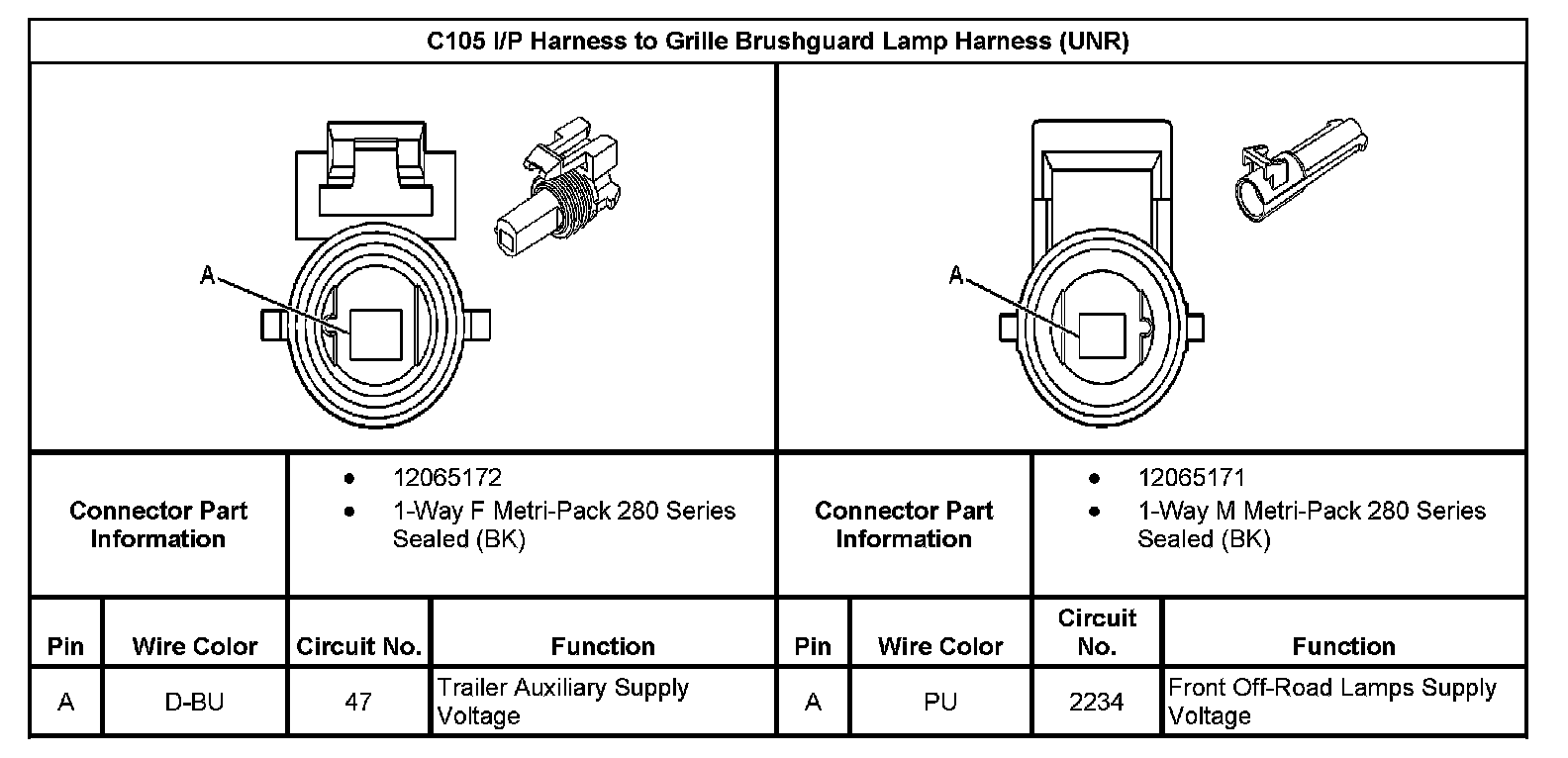

C105 I/P Harness To Grille Brushguard Lamp Harness (With RPO Code UNR):
