Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C100 - C199 >> C104

C104

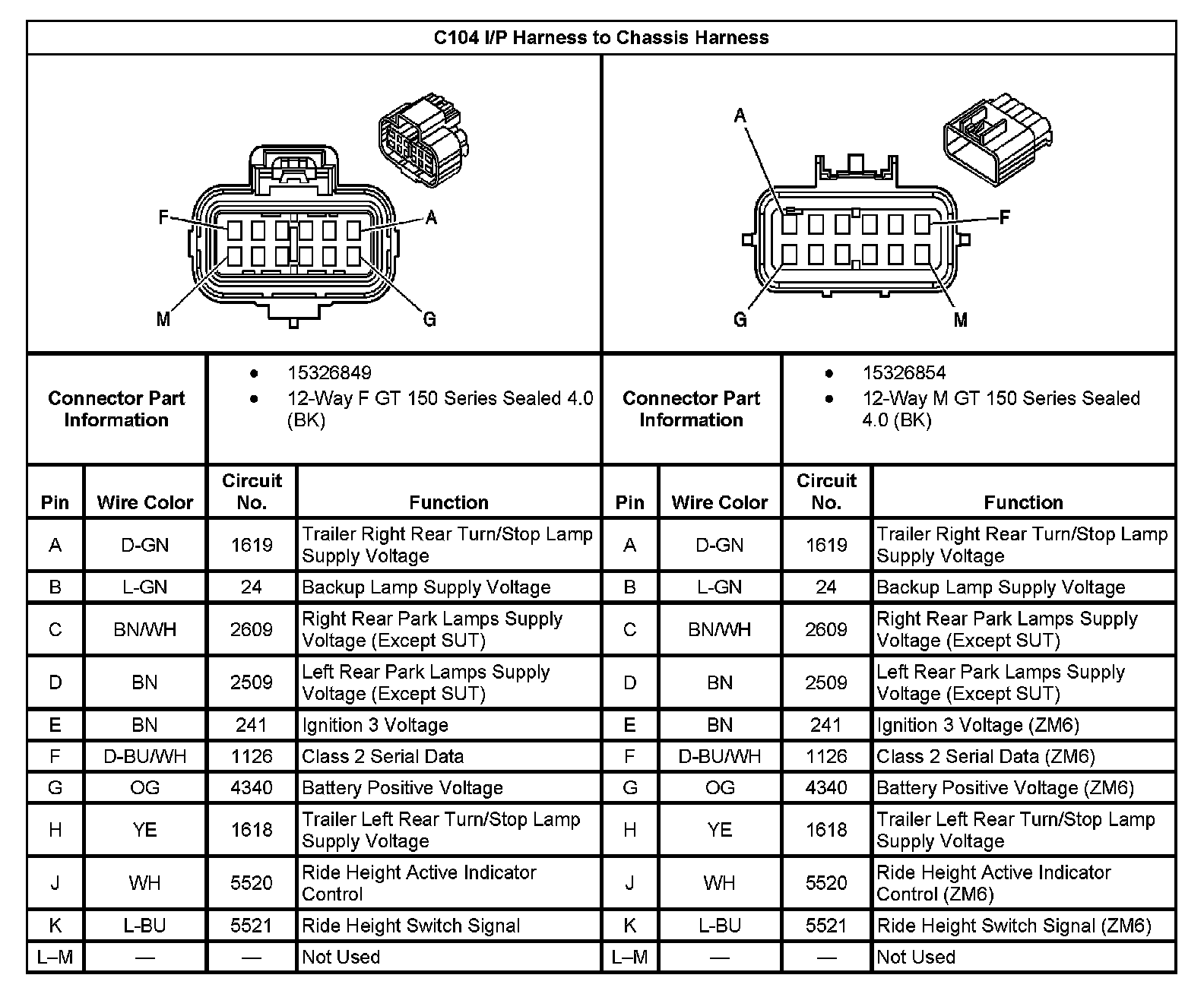

C104 I/P Harness To Chassis Harness:
