Electronic Throttle Actuator
Electronic Throttle Actuator
Throttle Actuator Control (TAC) Assembly:

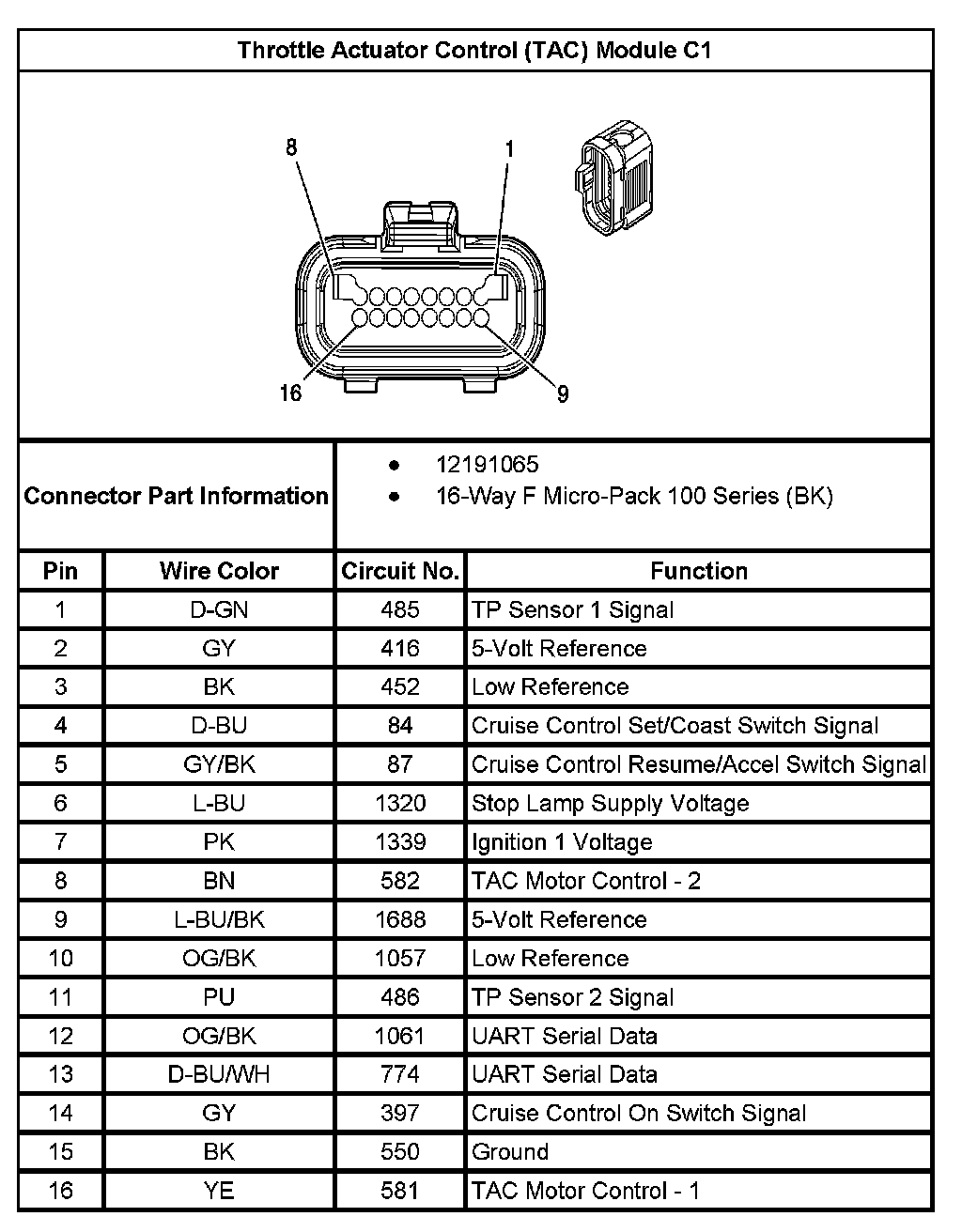

Throttle Actuator Control (TAC) Module C1:
Throttle Actuator Control (TAC) Module C2:
