Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C300 - C399 >> C320

C320

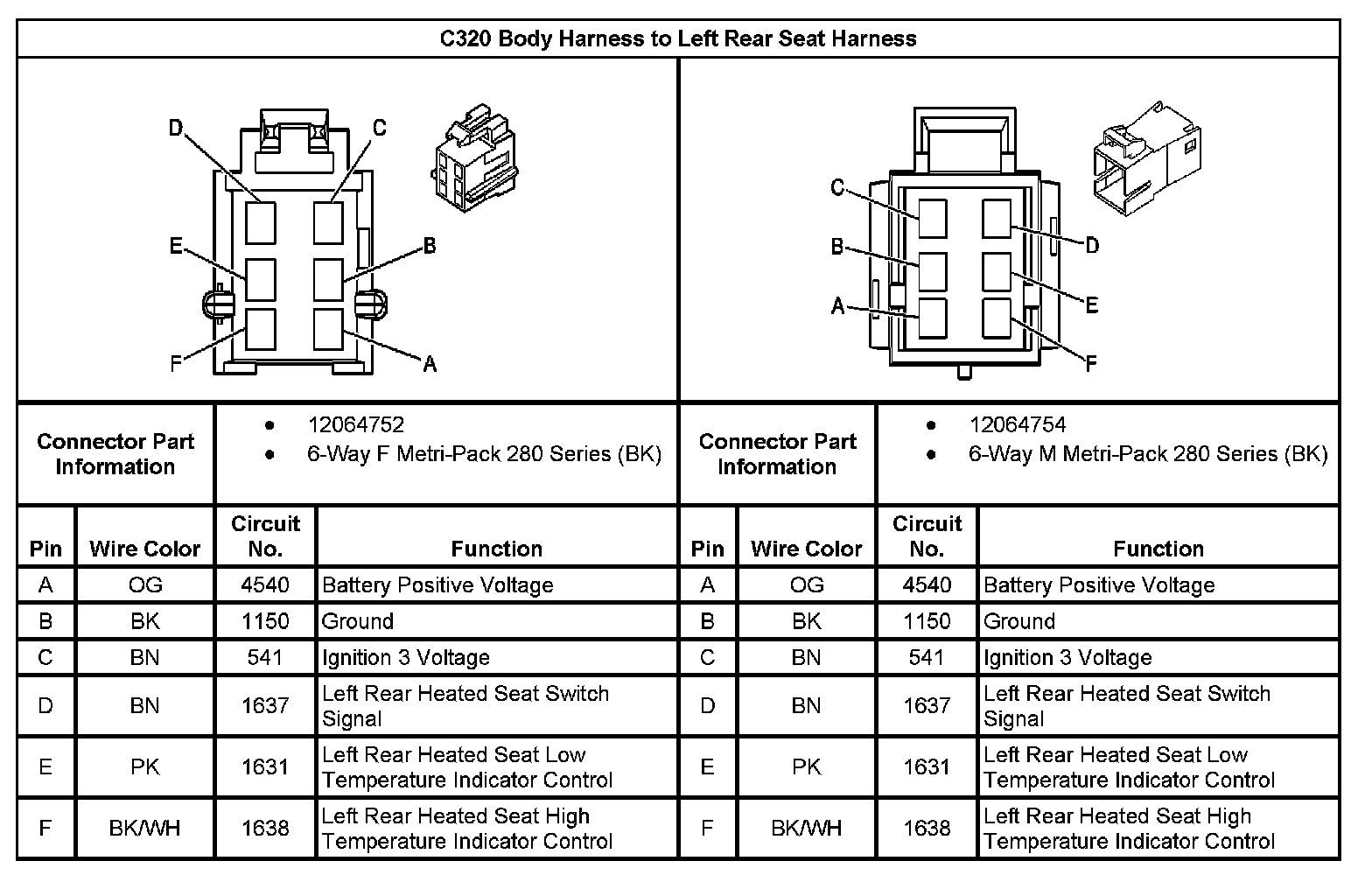

C320 Body Harness To Left Rear Seat Harness:
