Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C200 - C299 >> C200

C200

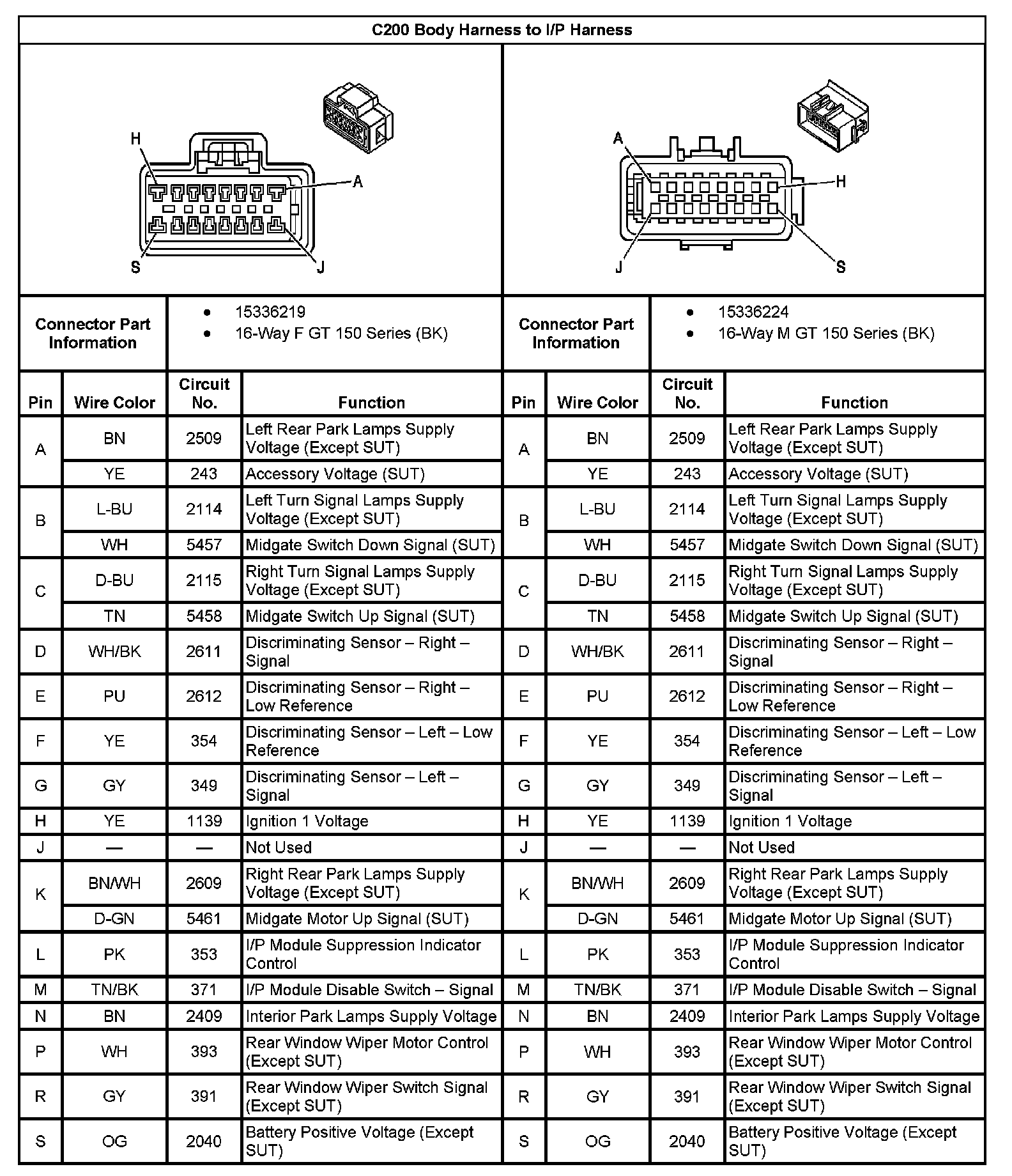

C200 Body Harness To I/P Harness:
