Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations >> Seat Belt Switch-Driver,Heated Seat Element Connector,Bolster/Lumbar Motors and C333

Seat Belt Switch-Driver,Heated Seat Element Connector,Bolster/Lumbar Motors and C333

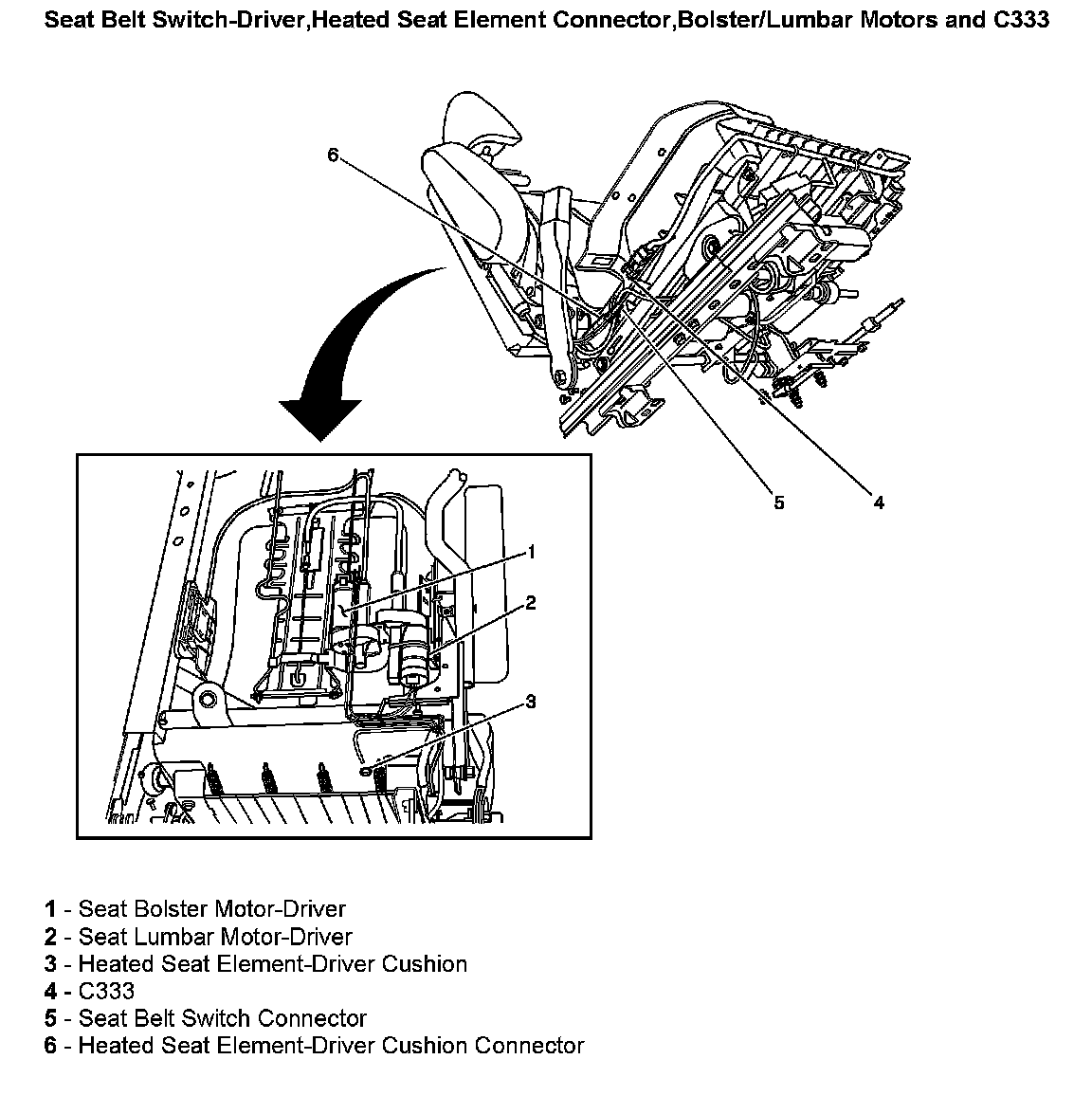

Seat Belt Switch-Driver,Heated Seat Element Connector,Bolster/Lumbar Motors And C333:

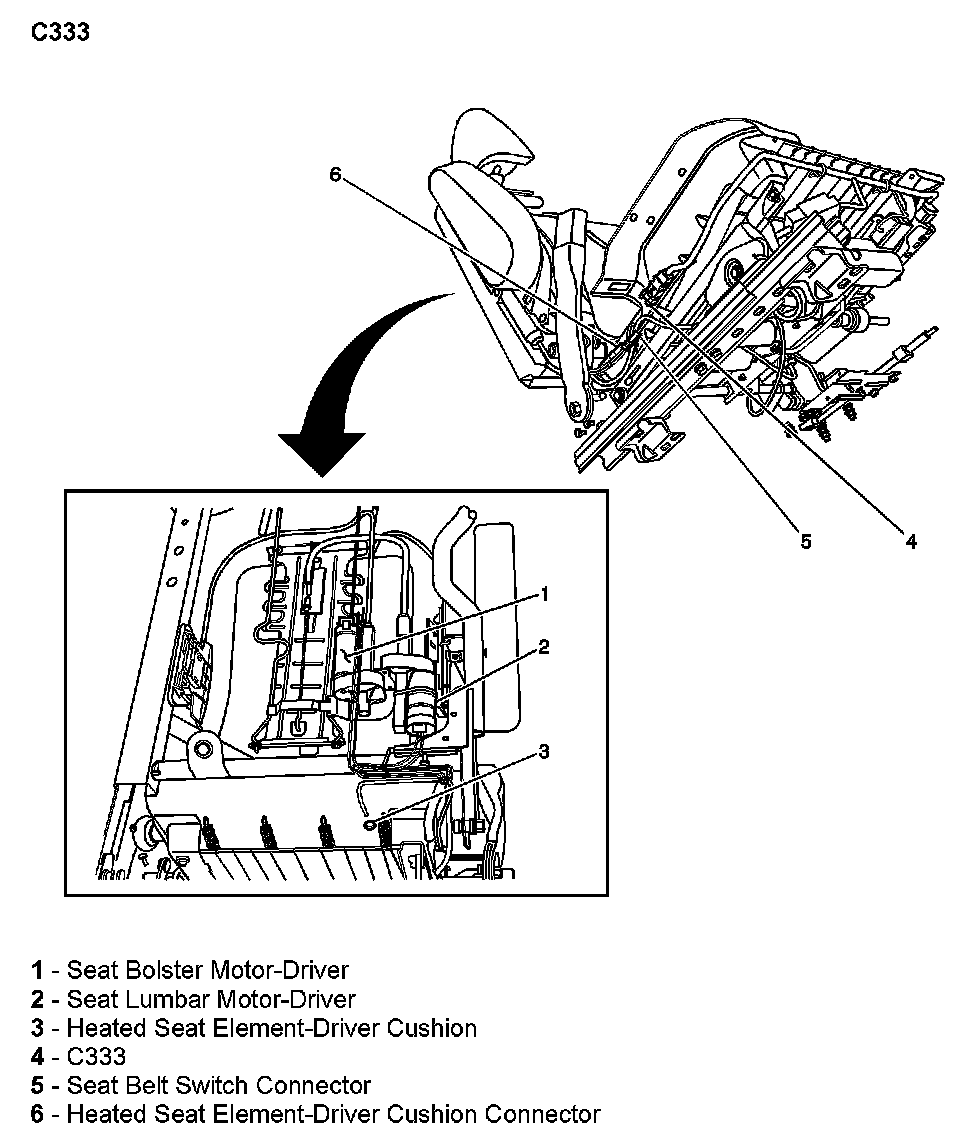

C333:

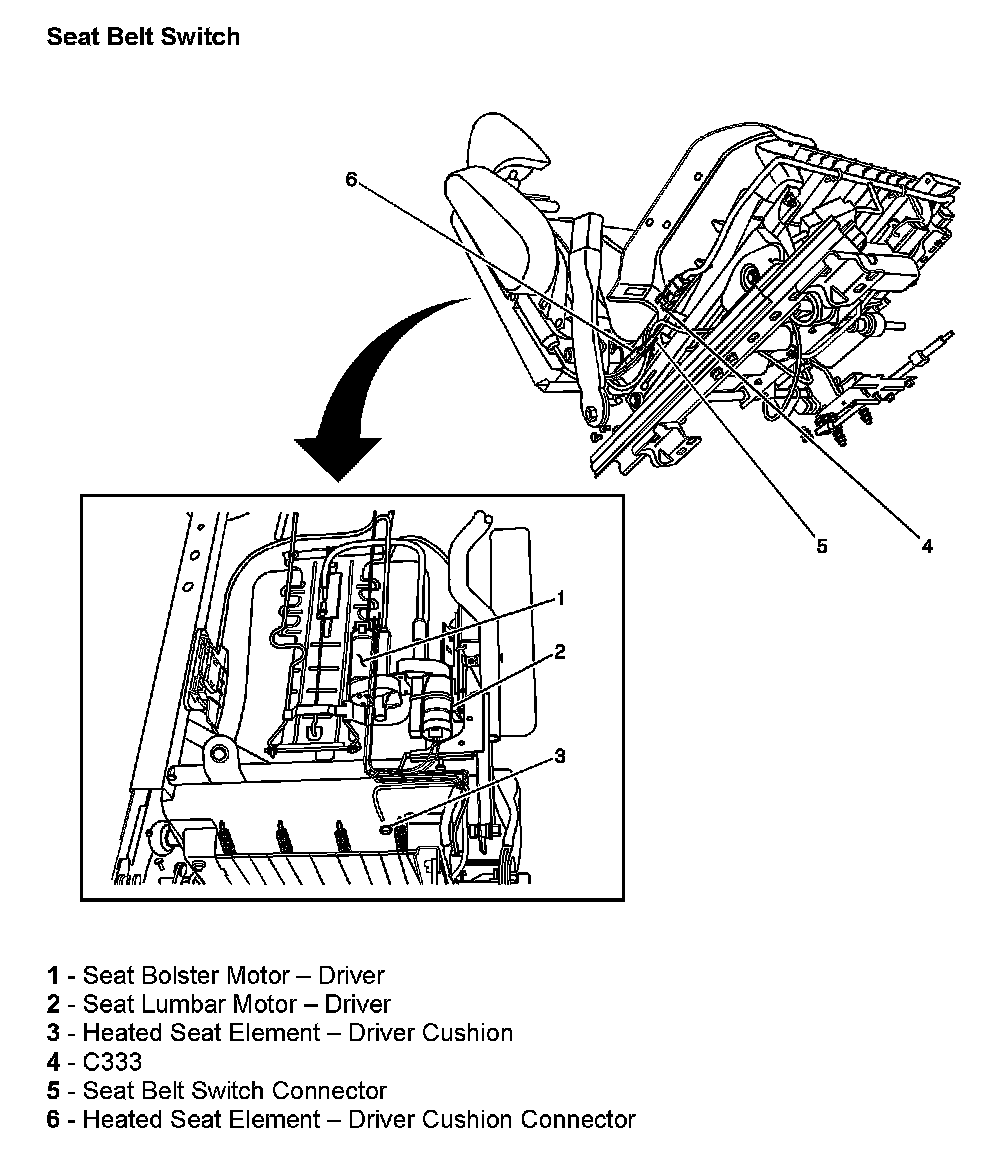

Seat Belt Switch:
