Suspension Control Pressure Sensor/Switch: Locations

Rear Underbody (Early Production SUV)

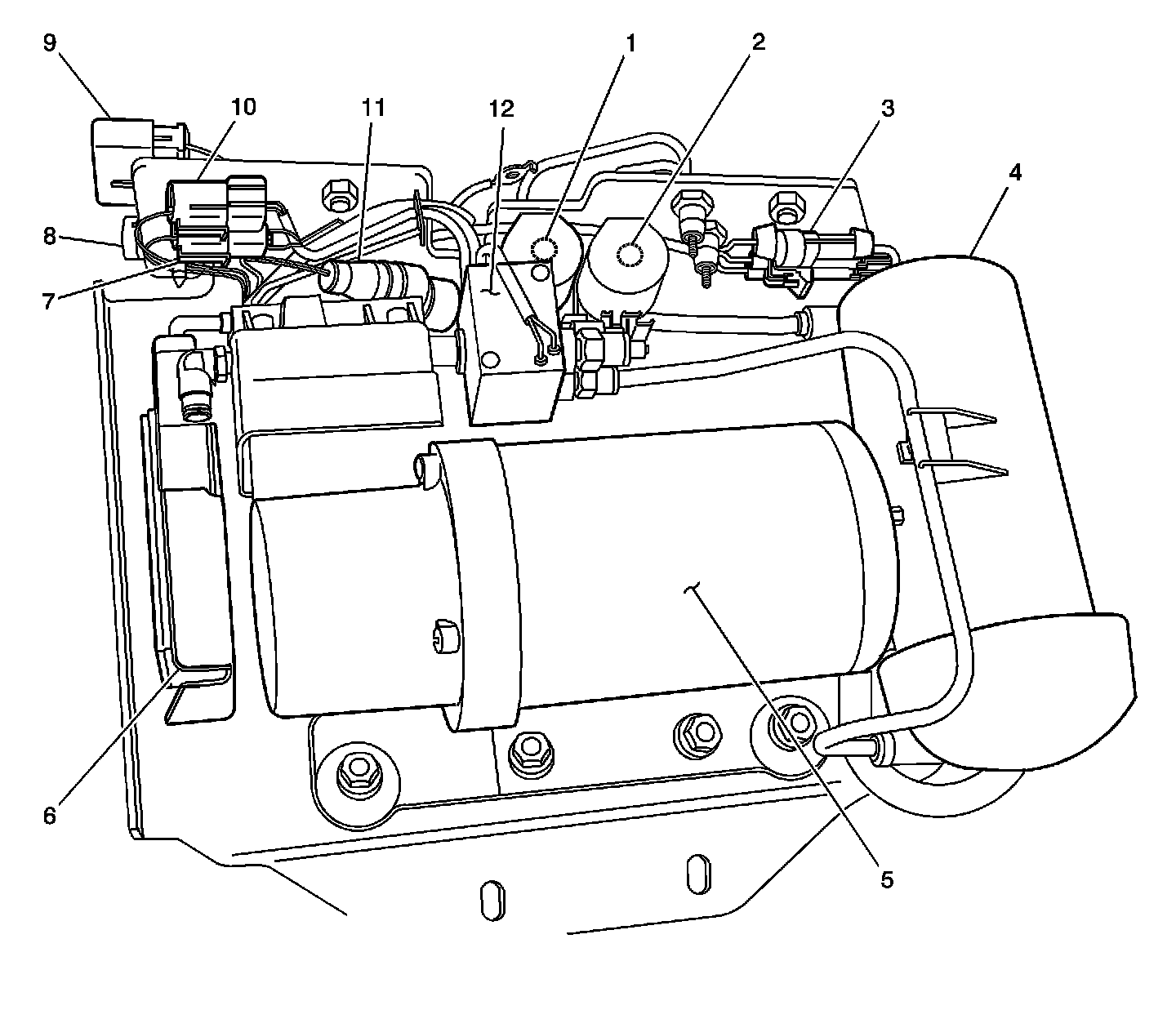

Rear Underbody (Early Production SUV):

1 - Air Suspension Inlet Valve-LR
2 - Air Suspension Inlet Valve-RR
3 - Compressor Connector
4 - Air Suspension Air Dryer
5 - Air Suspension Compressor
6 - Air Suspension Module
7 - Air Suspension Exhaust Valve Connector
8 - C450
9 - C451
10 - Air Suspension Inlet Valve Connector-LR/RR
11 - Air Suspension Pressure Sensor
12 - Air Suspension Exhaust Valve
