Suspension Main Relay: Locations

Chassis and Body Mounted Components

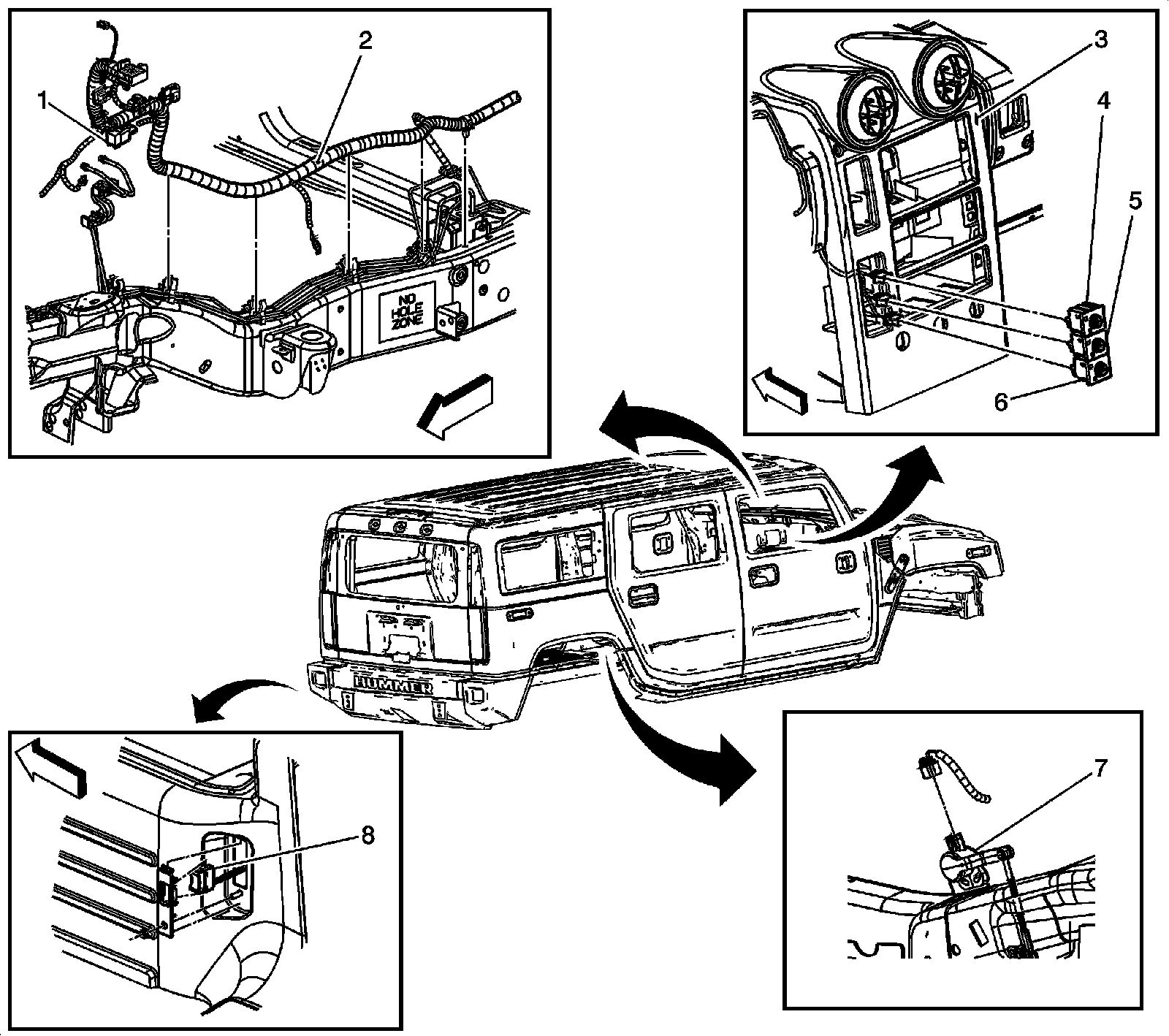

Chassis and Body Mounted Components:

1 - Electronically Controlled Air Suspension Relay
2 - Chassis Harness
3 - I/P Compartment
4 - Traction Control Switch
5 - Tow/Haul Switch
6 - Ride Height Switch
7 - Air Suspension Sensor - LR
8 - Air Suspension Inflator Switch
