Home >> Hummer >> 2005 >> H2 V8-6.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Locations

Power Seat Switch: Locations

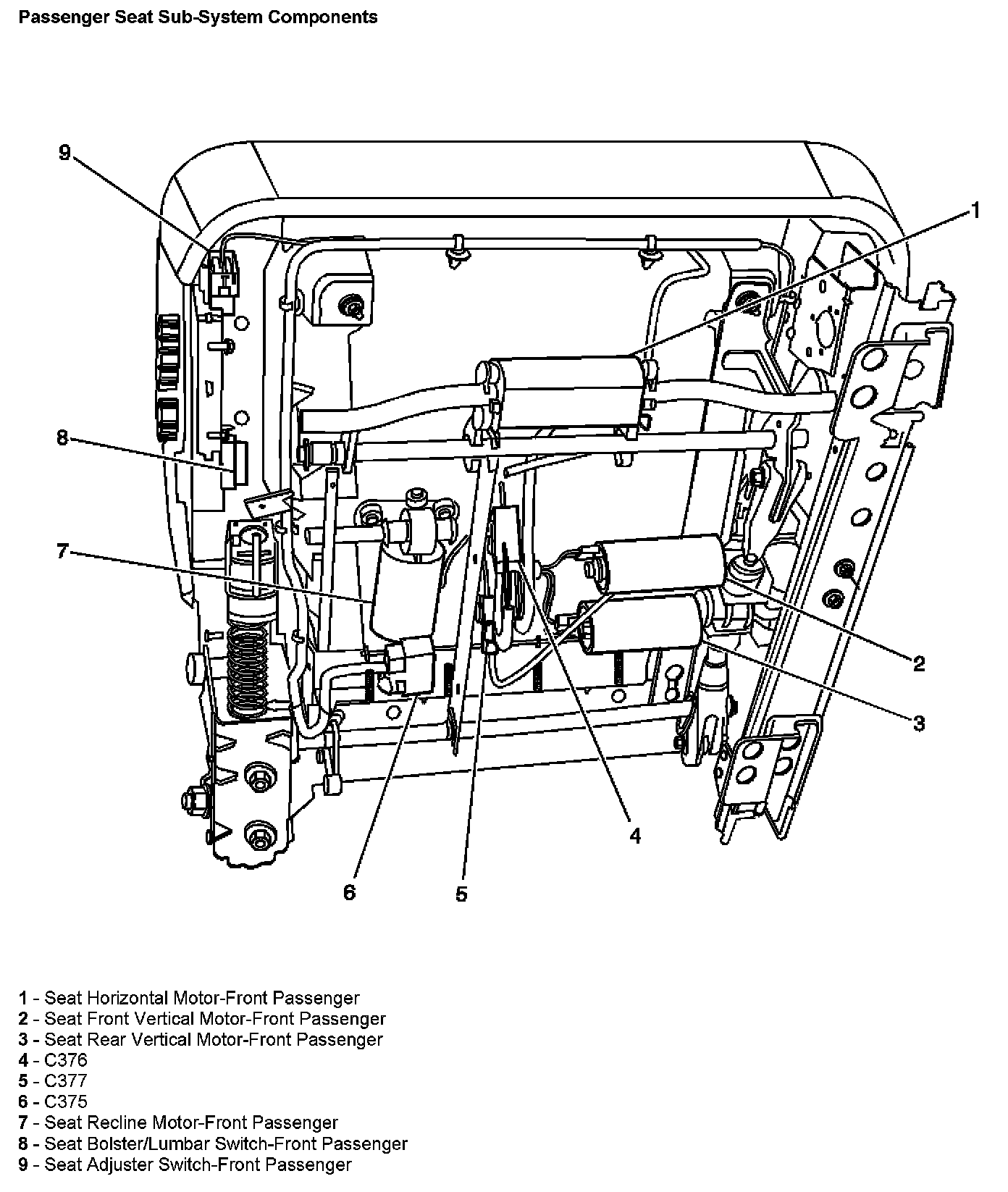

Passenger Seat Sub-System Components:



Driver Seat Sub-System Components:
