Home >> Hummer >> 2005 >> H2 V8-6.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Sensors and Switches - Instrument Panel >> Dimmer Switch >> Diagrams

Dimmer Switch: Diagrams

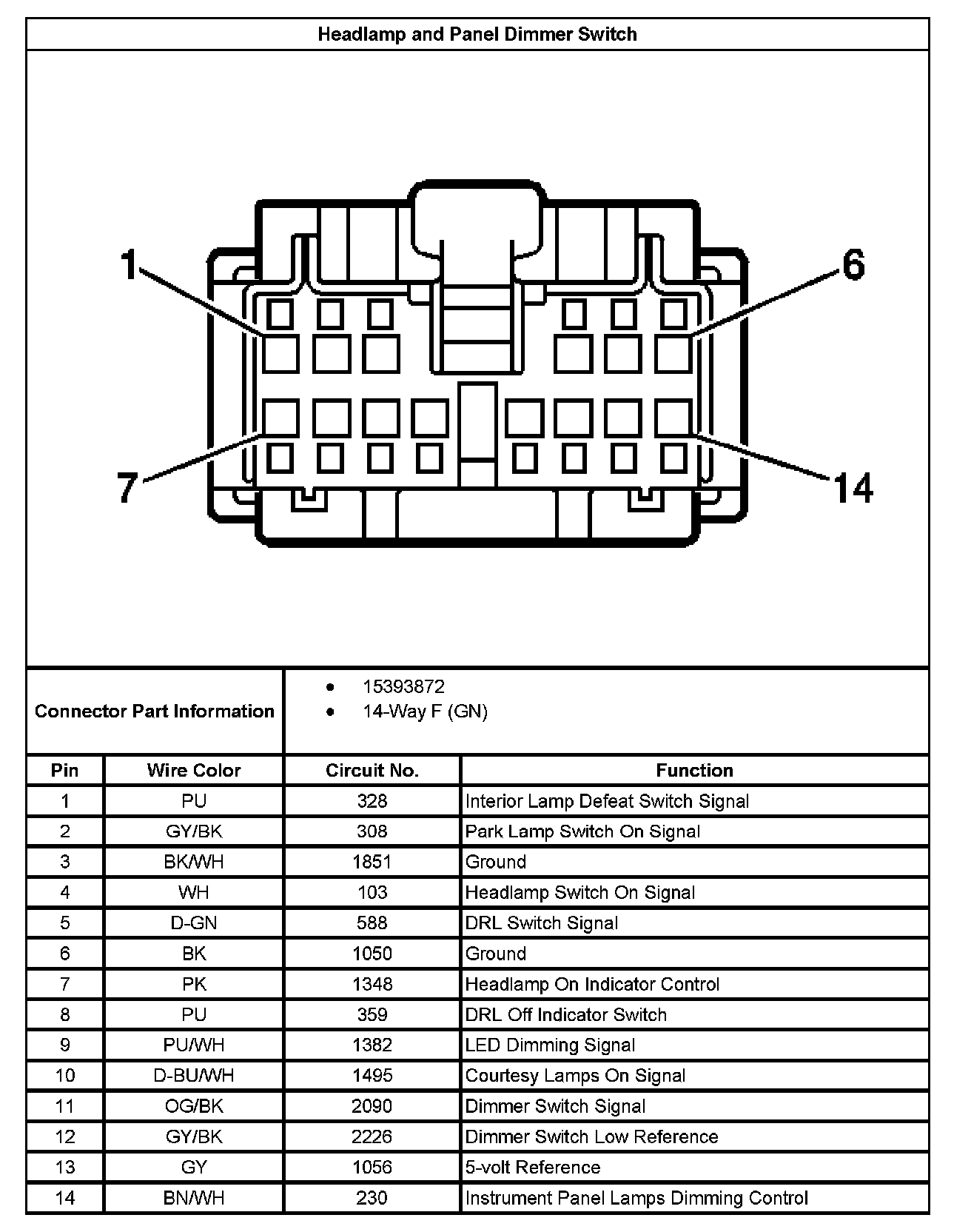

Headlamp And Panel Dimmer Switch:
