Exterior Lights Diagram 5

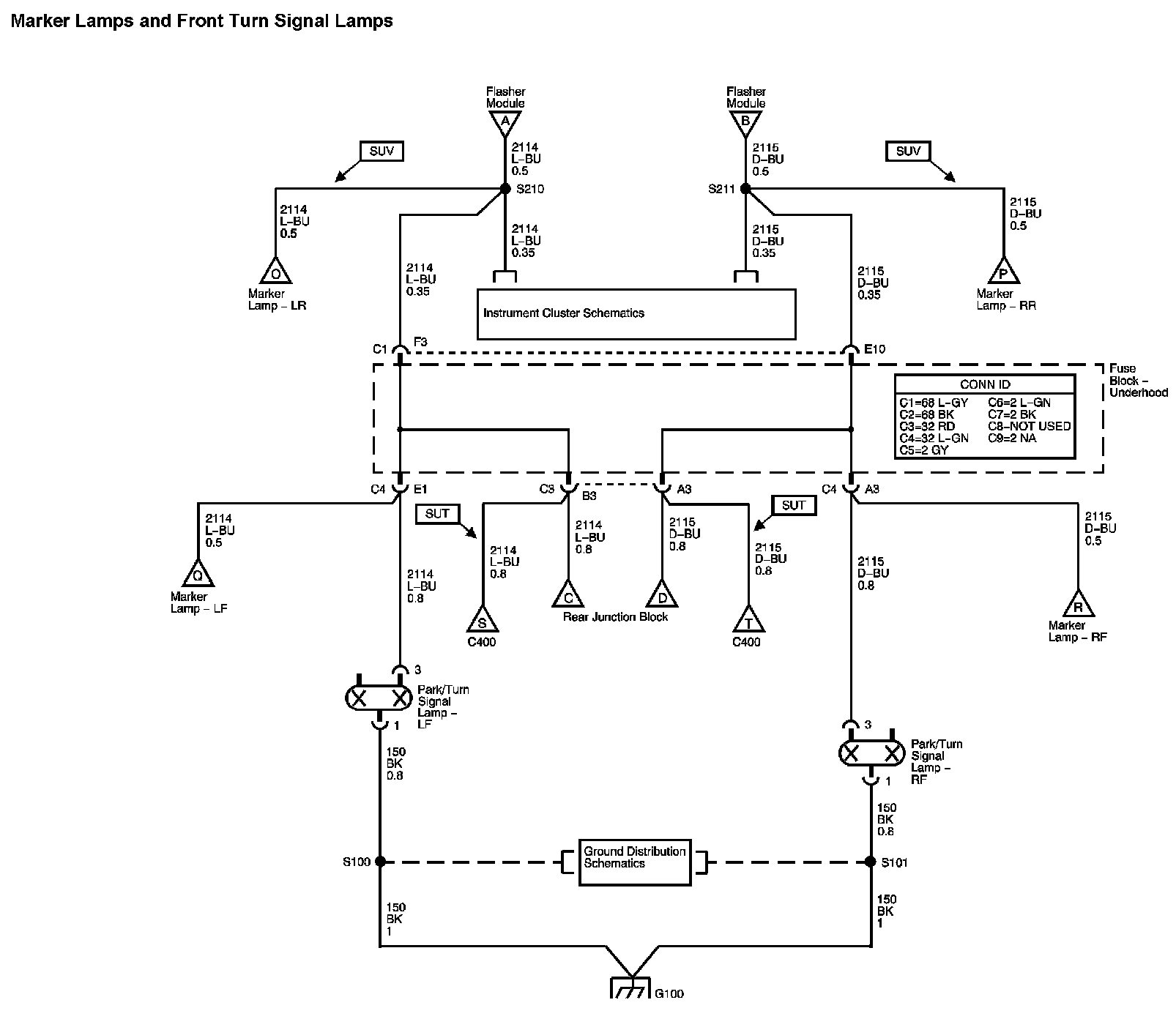

Exterior Lights Diagram 5:






Next Diagram Exterior Lights Diagram 6

Previous Diagram Exterior Lights Diagram 4

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
