Instrument Cluster Schematics

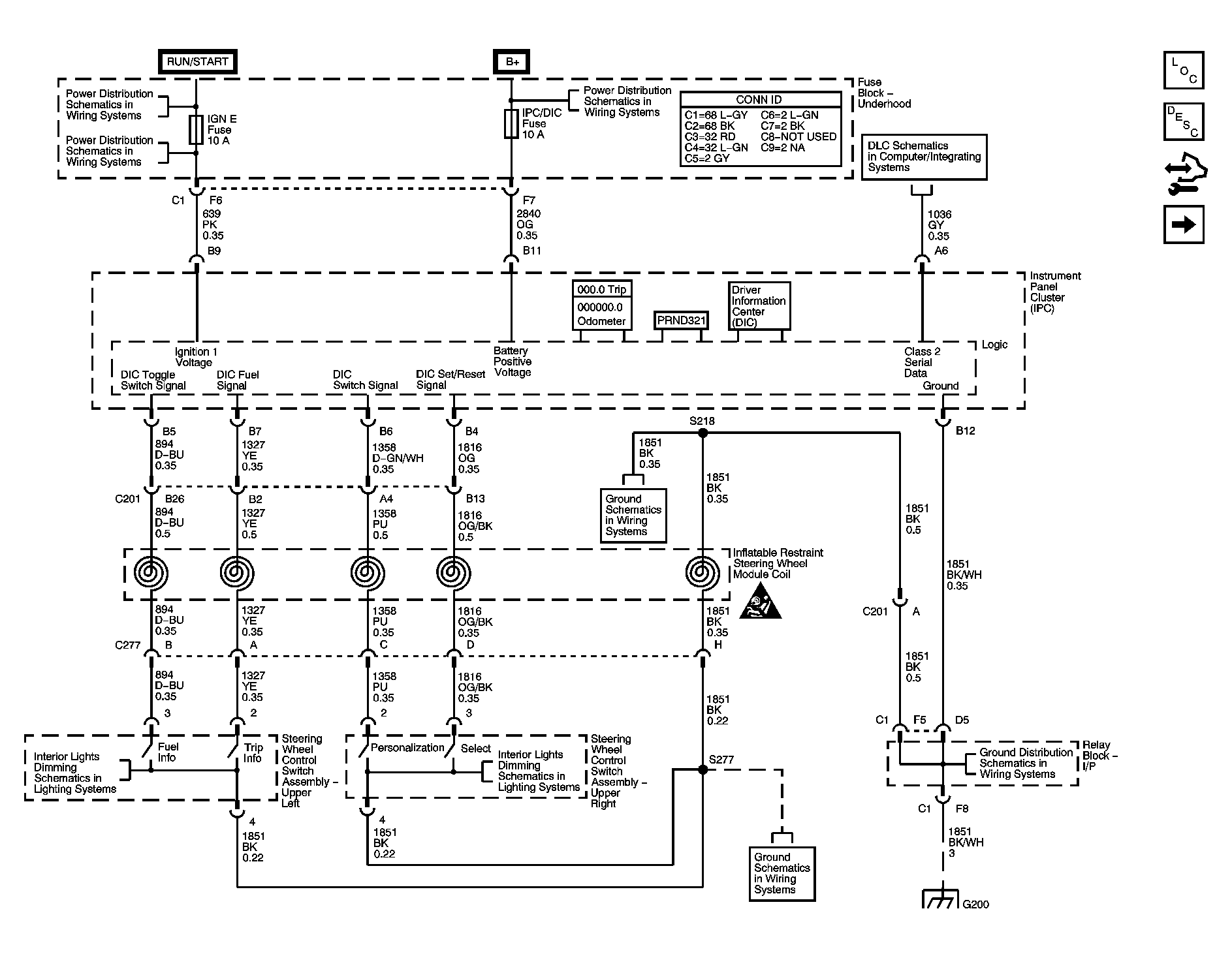

Fig 1: Power, Ground, Serial Data and Driver Information Schematics
GM1471580Courtesy of GENERAL MOTORS CORP.

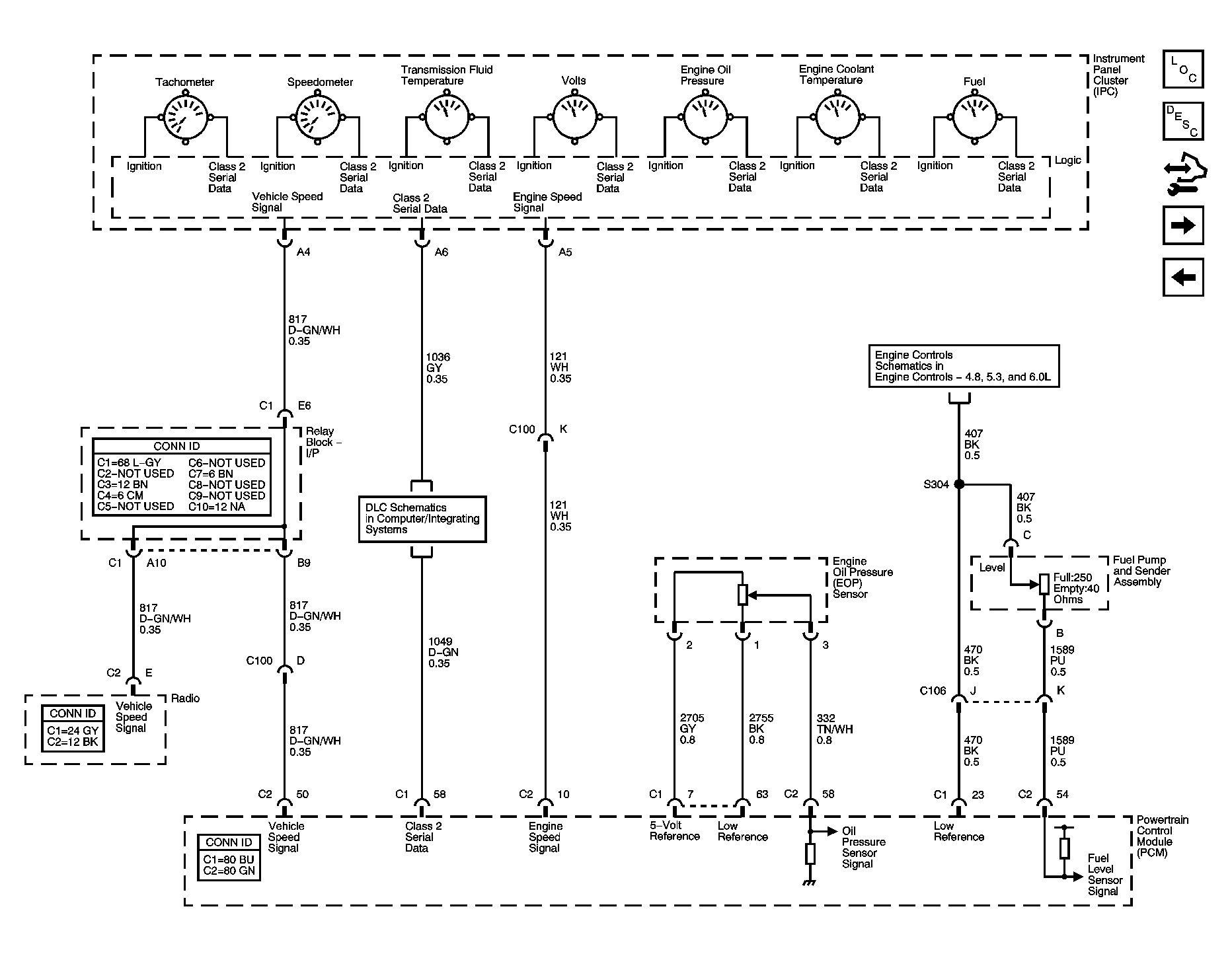

Fig 2: Gages Schematics
GM1471585Courtesy of GENERAL MOTORS CORP.

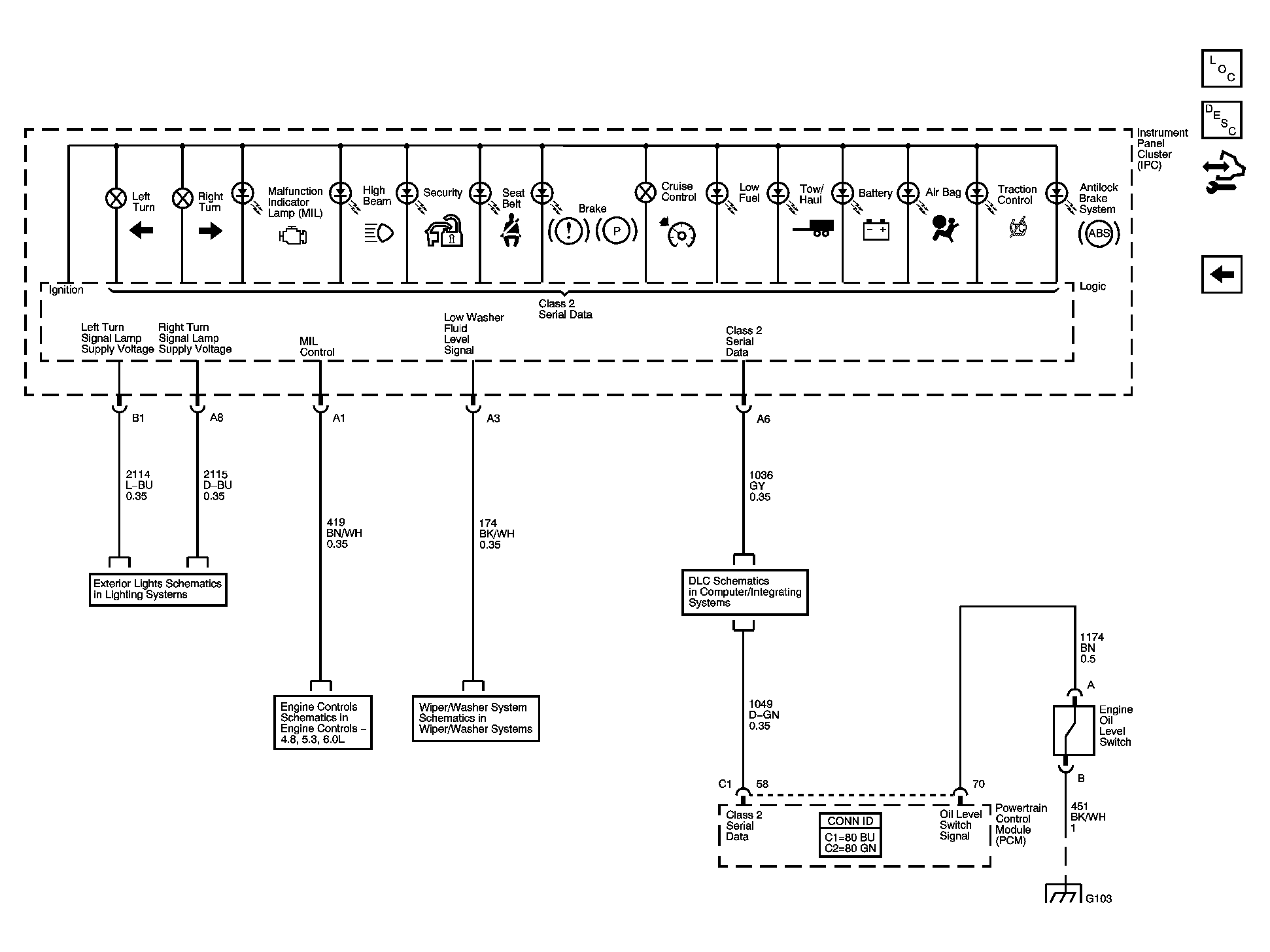

Fig 3: Indicators Schematics
GM1471588Courtesy of GENERAL MOTORS CORP.
