Interior Lights Schematics

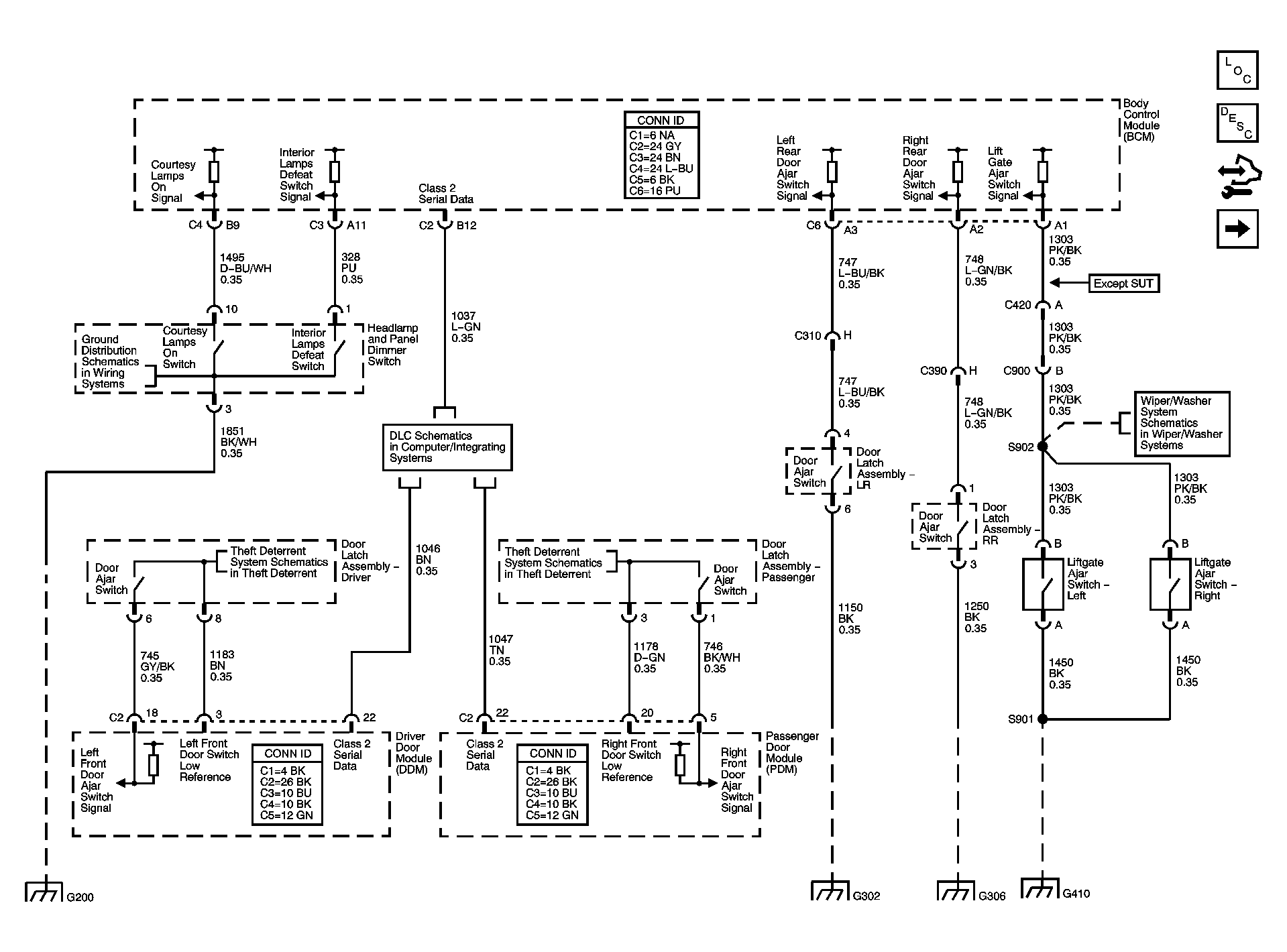

Fig 1: Interior Light Controls, BCM, and Door Ajar Switches Schematics
GM1522078Courtesy of GENERAL MOTORS CORP.

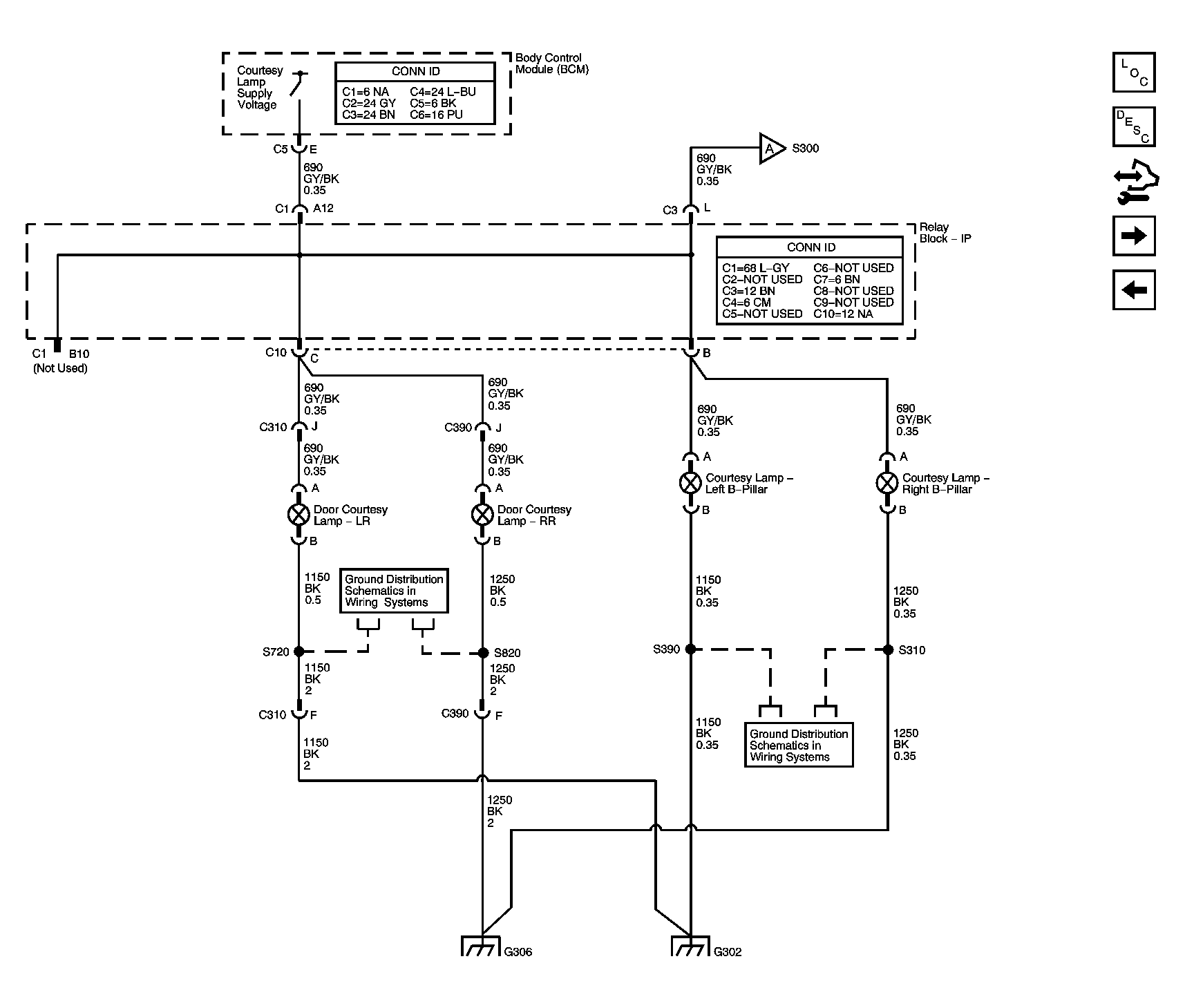

Fig 2: Courtesy Lamps - Rear Doors, and B-Pillars Schematics
GM1522081Courtesy of GENERAL MOTORS CORP.

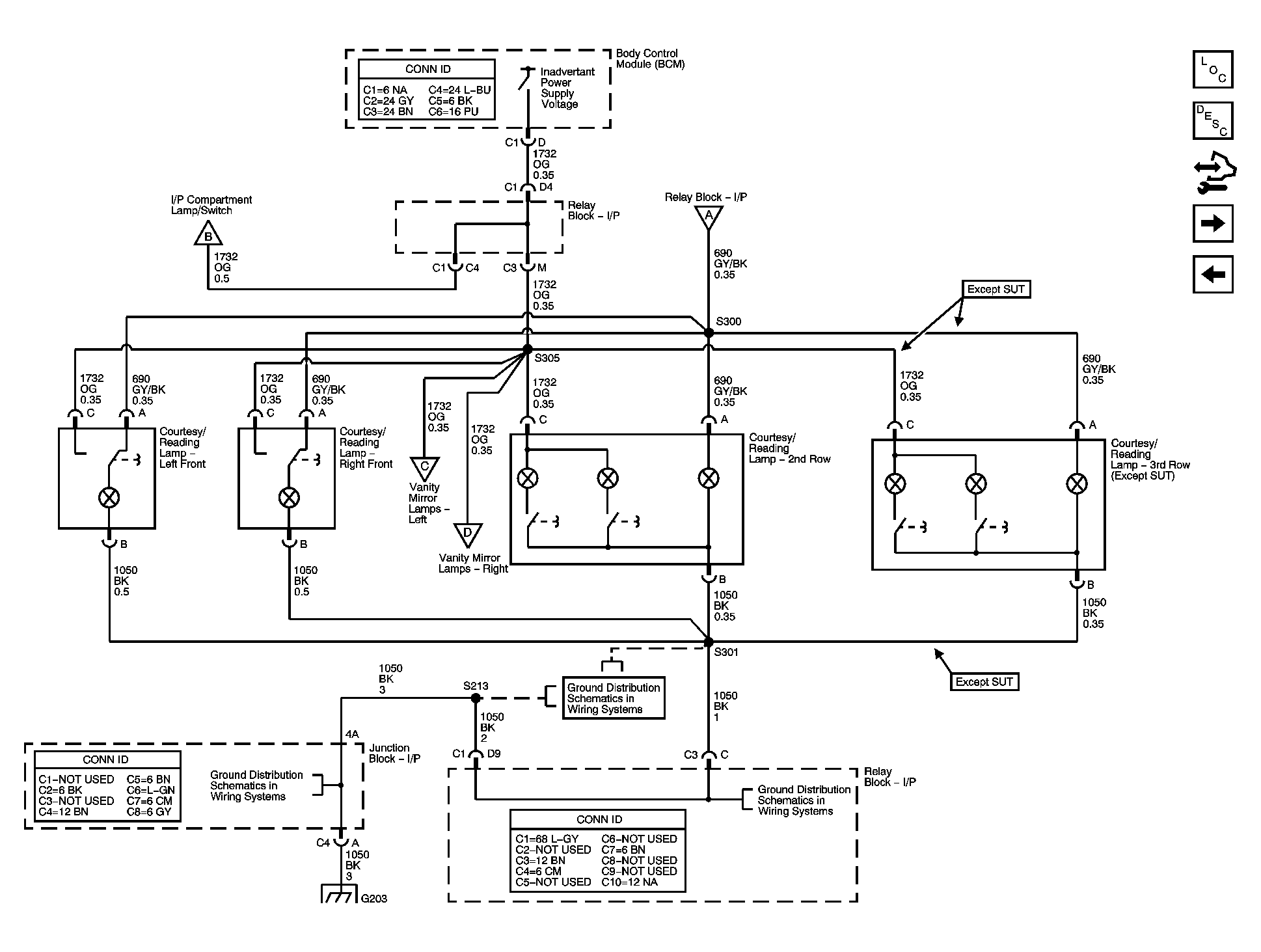

Fig 3: Courtesy Lamps - Headliner Schematics
GM1522082Courtesy of GENERAL MOTORS CORP.

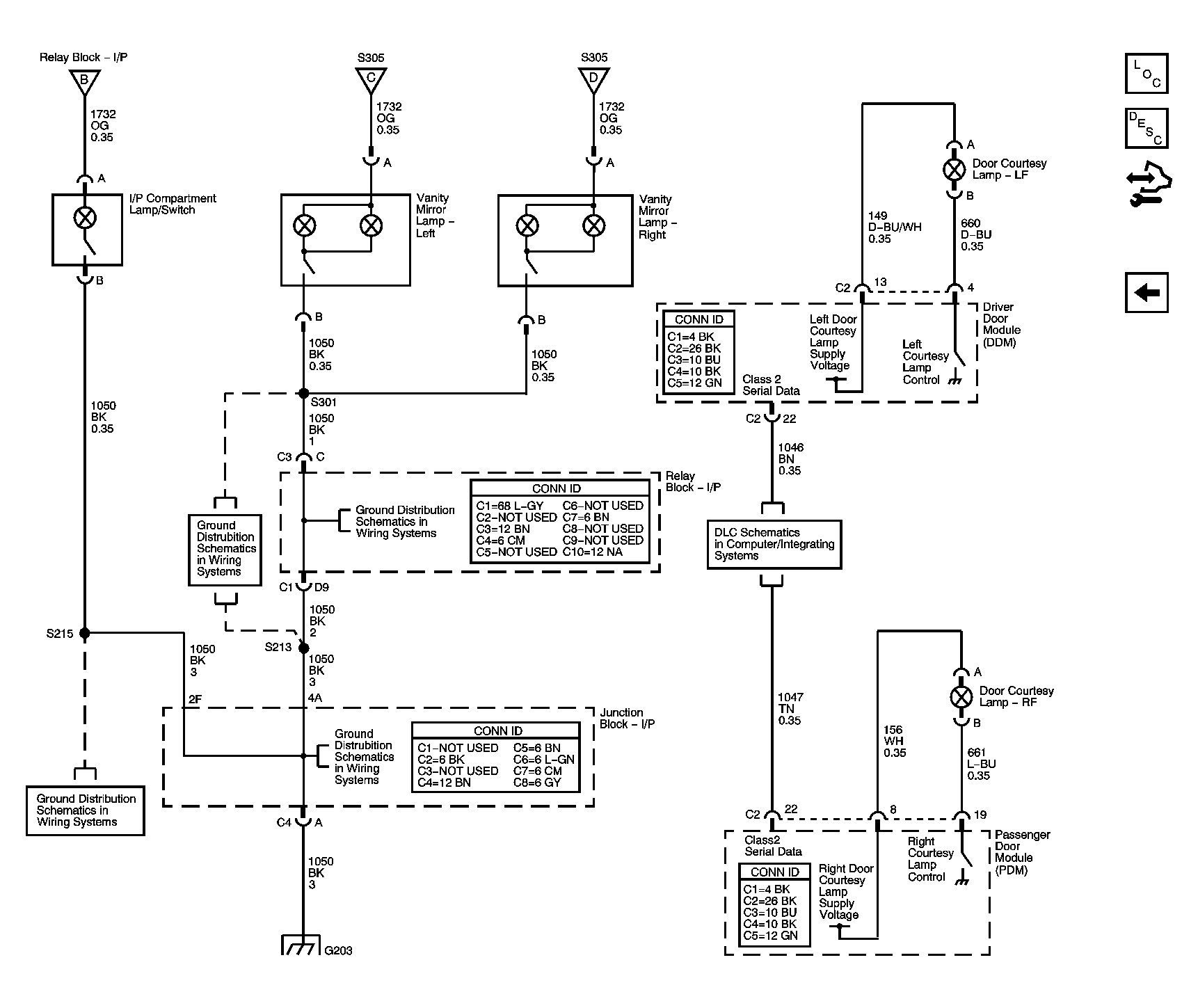

Fig 4: Courtesy Lamps - Front Doors, Vanity Mirror, and I/P Compartment Schematics
GM1522083Courtesy of GENERAL MOTORS CORP.
