Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cooling Fan >> Fan Clutch >> Testing and Inspection

Fan Clutch: Testing and Inspection

Steps 1-7:

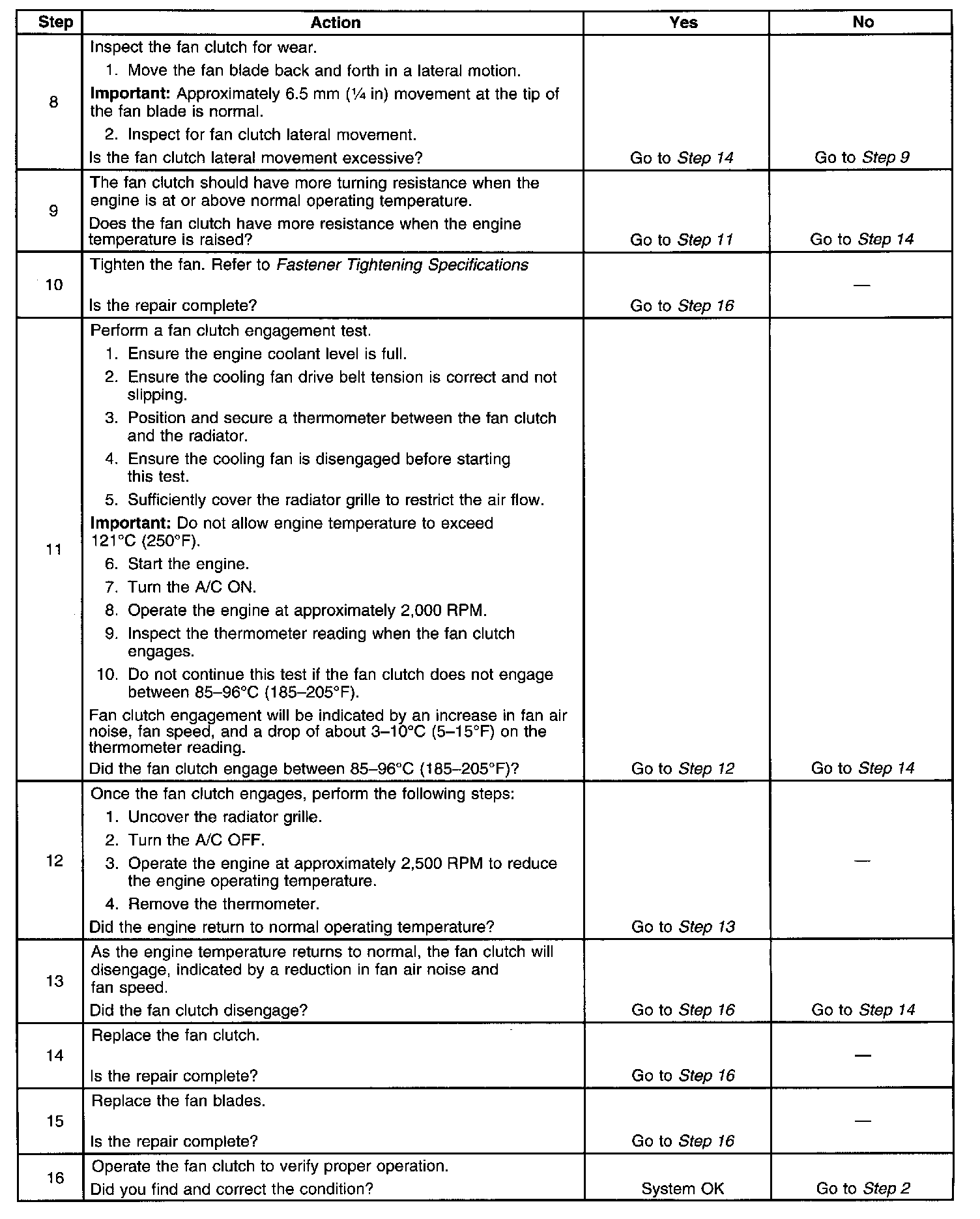

Steps 8-16:
