C450 Chassis Harness to Air Suspension Harness

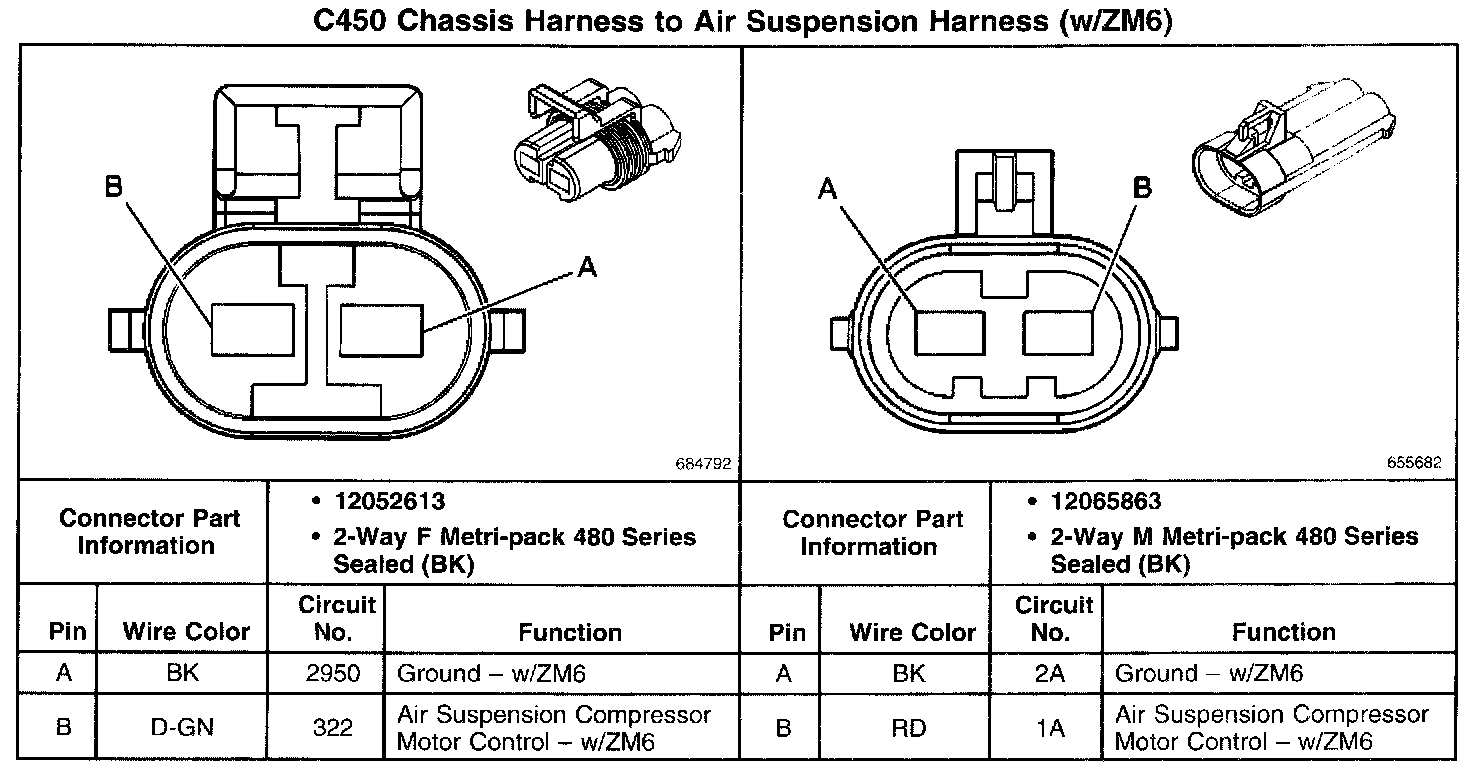

C450 Chassis Harness To Air Suspension Harness (With RPO Code ZM6):
