C380 Body Harness to Right Rear Seat Harness - Heated Seats
C380 Body Harness to Right Rear Seat Harness - Heated Seats

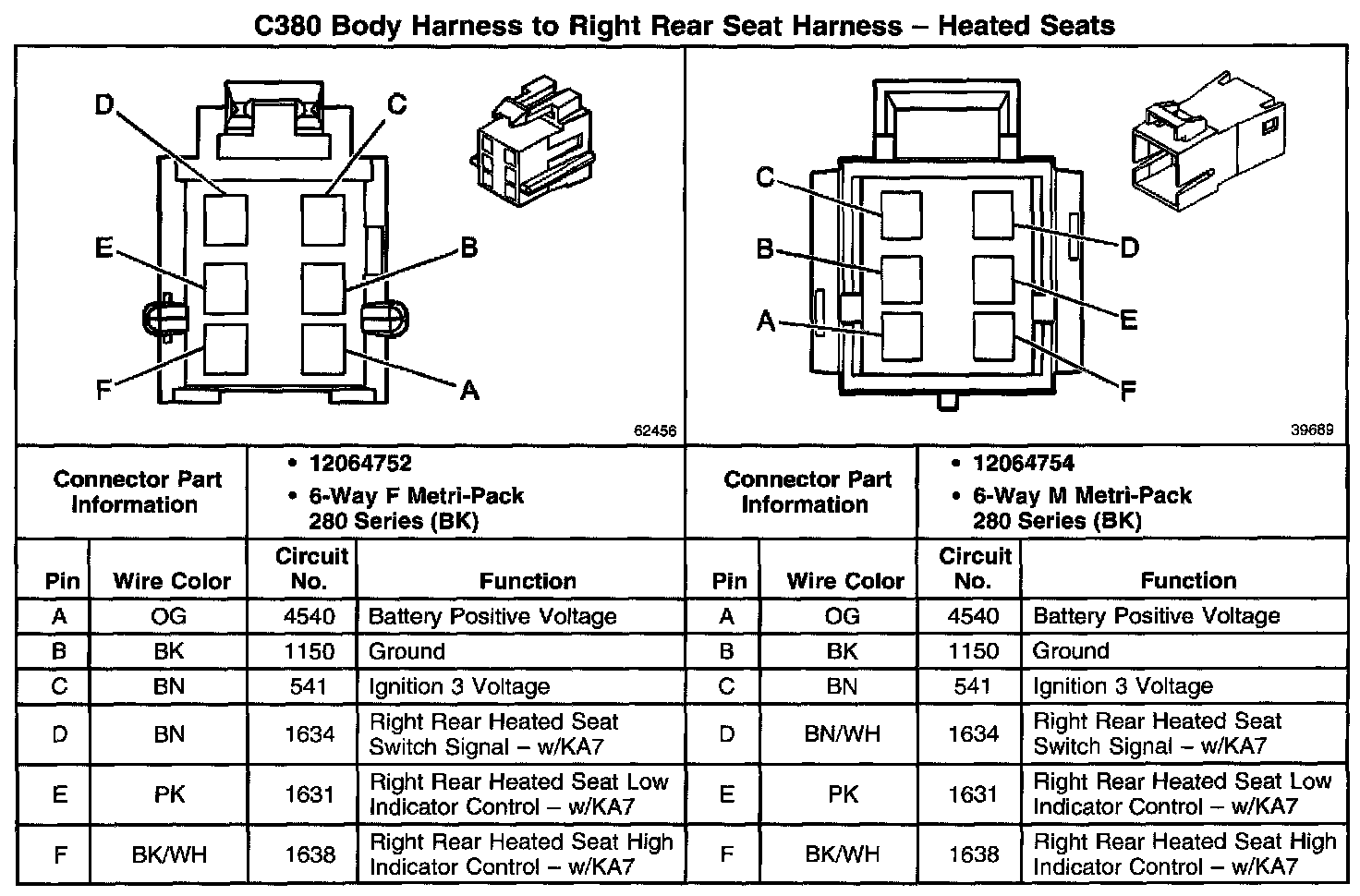

C380 Body Harness To Right Rear Seat Harness - Heated Seats:
