Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Multiple Junction Connector >> C310 - C390 >> C376 Body Harness to Passenger Seat Harness

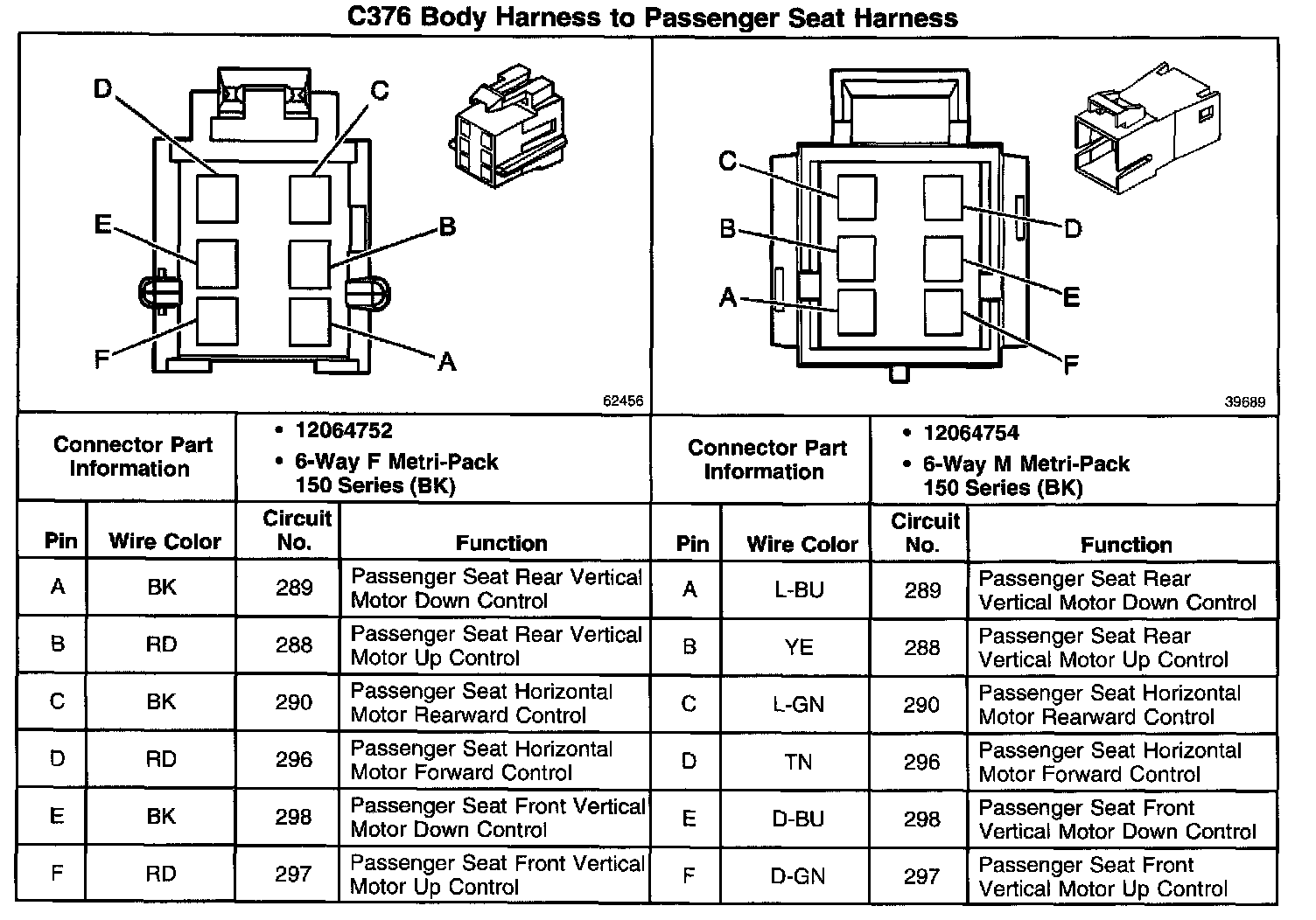

C376 Body Harness to Passenger Seat Harness

C376 Body Harness To Passenger Seat Harness:
