Instrument Cluster Schematics

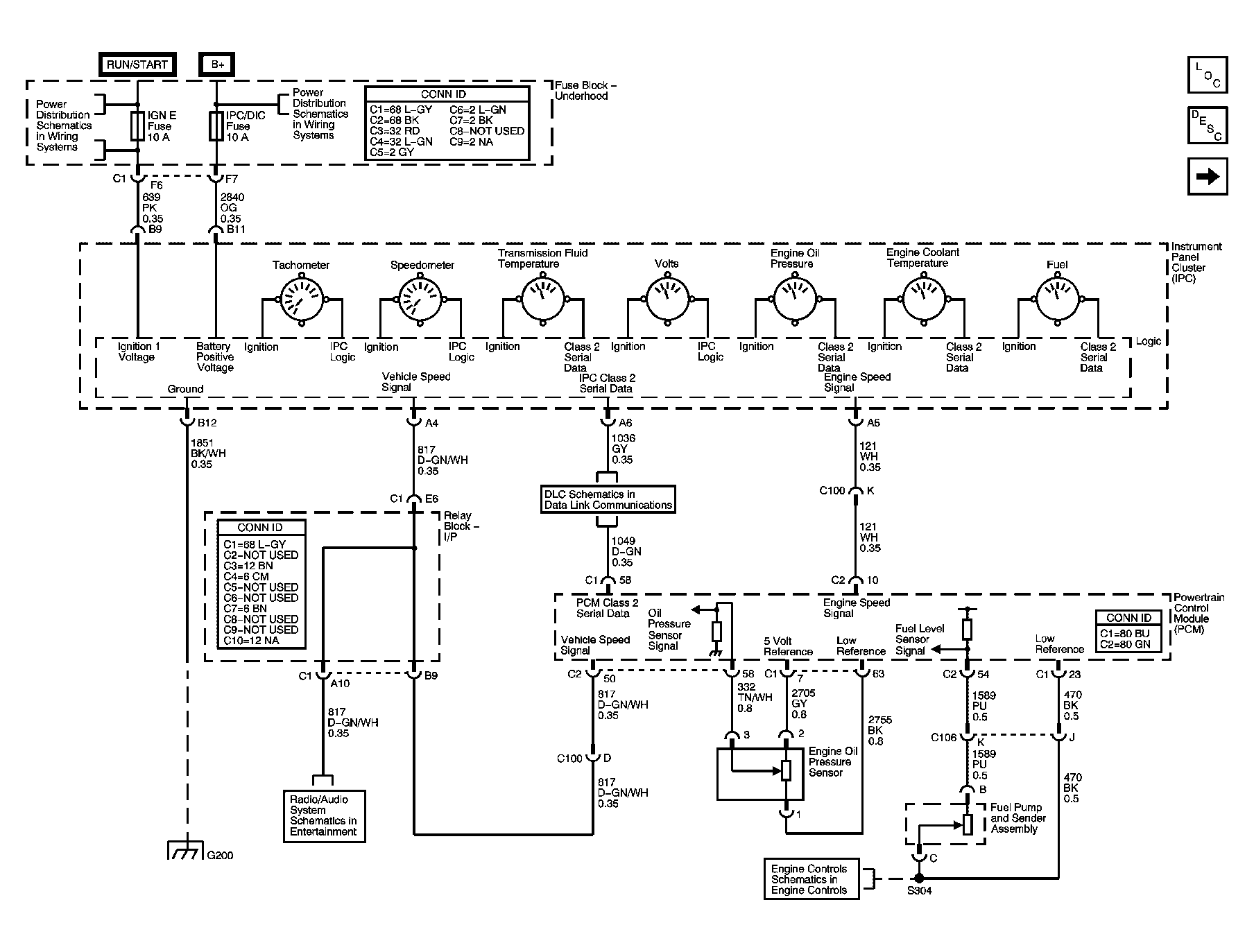

Fig 1: Power, Grounding, DLC, Sensors, and Gauges
GM1196088Courtesy of GENERAL MOTORS CORP.

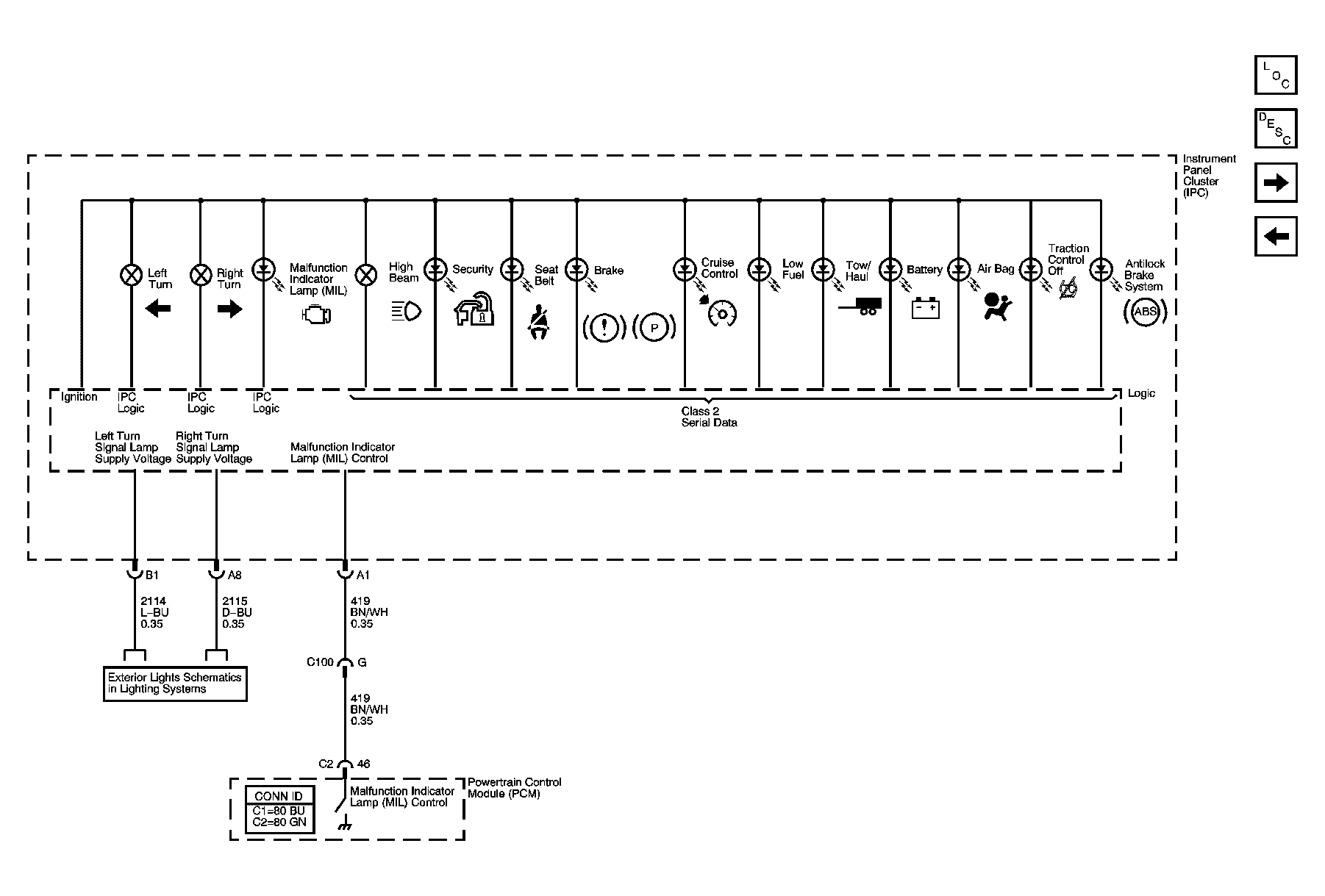

Fig 2: Indicators
GM1196092Courtesy of GENERAL MOTORS CORP.

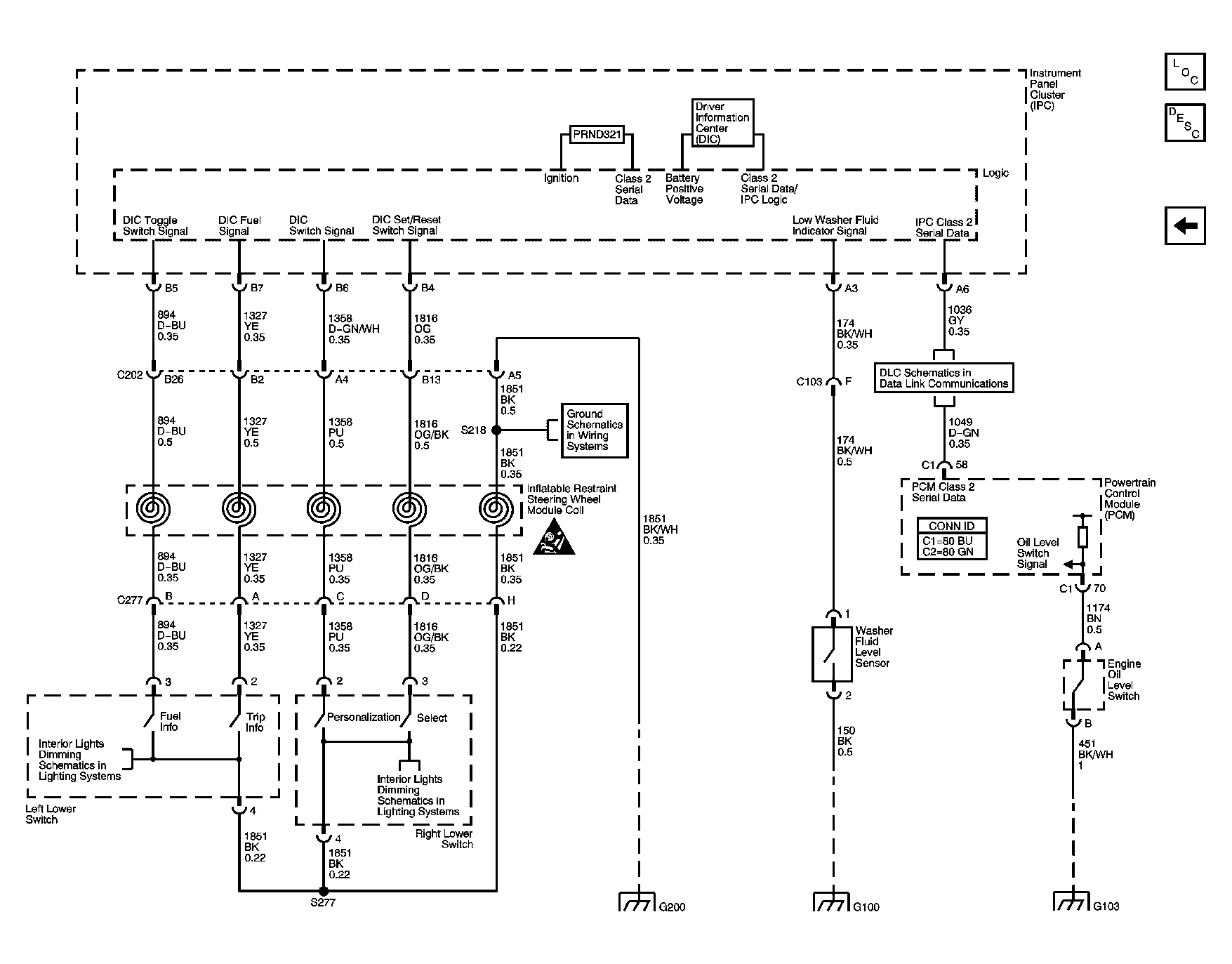

Fig 3: Displays and Personalization Controls
GM1196095Courtesy of GENERAL MOTORS CORP.
