Interior Lights Schematics

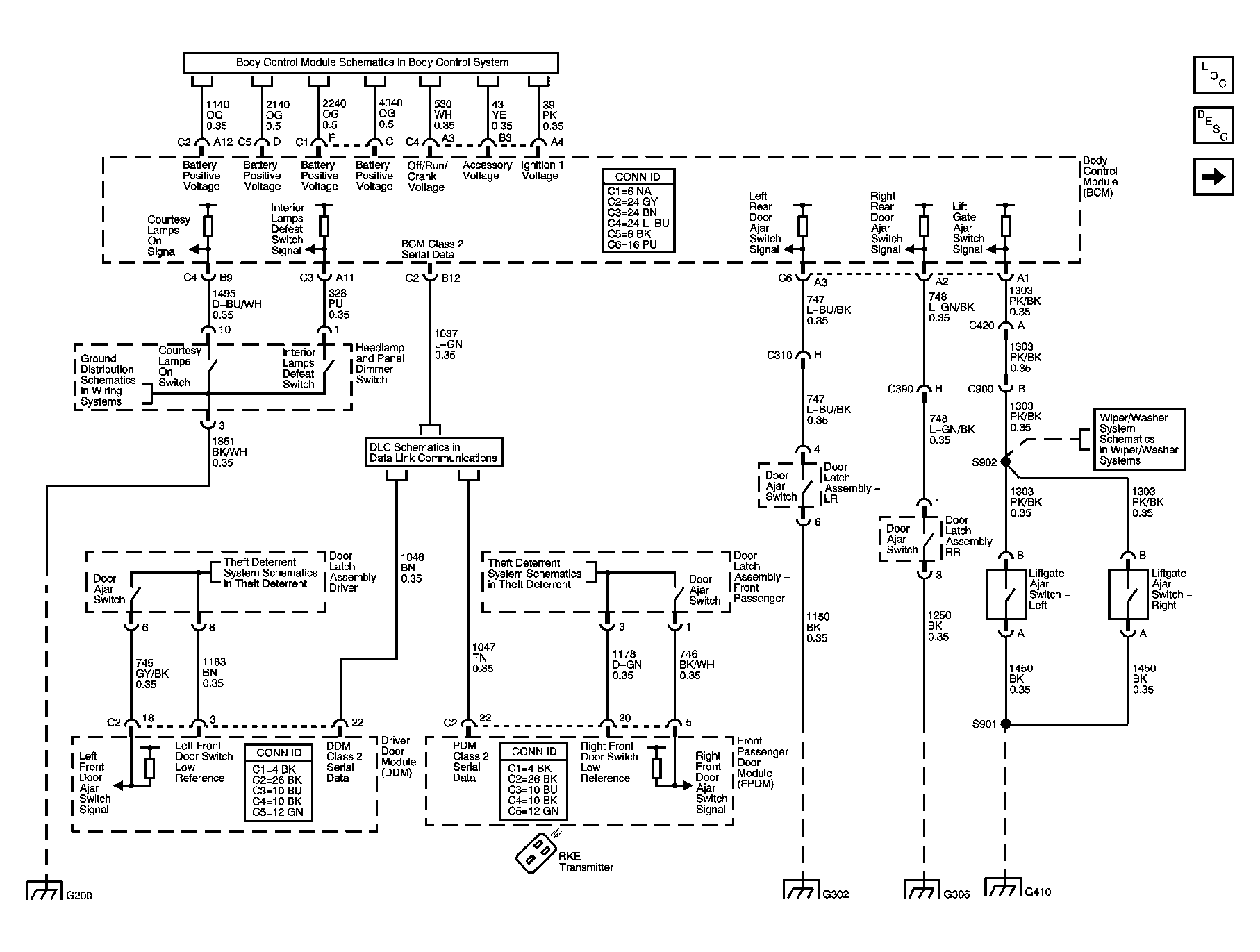

Fig 1: Interior Light Controls, BCM, and Door Ajar Switches
GM1196426Courtesy of GENERAL MOTORS CORP.

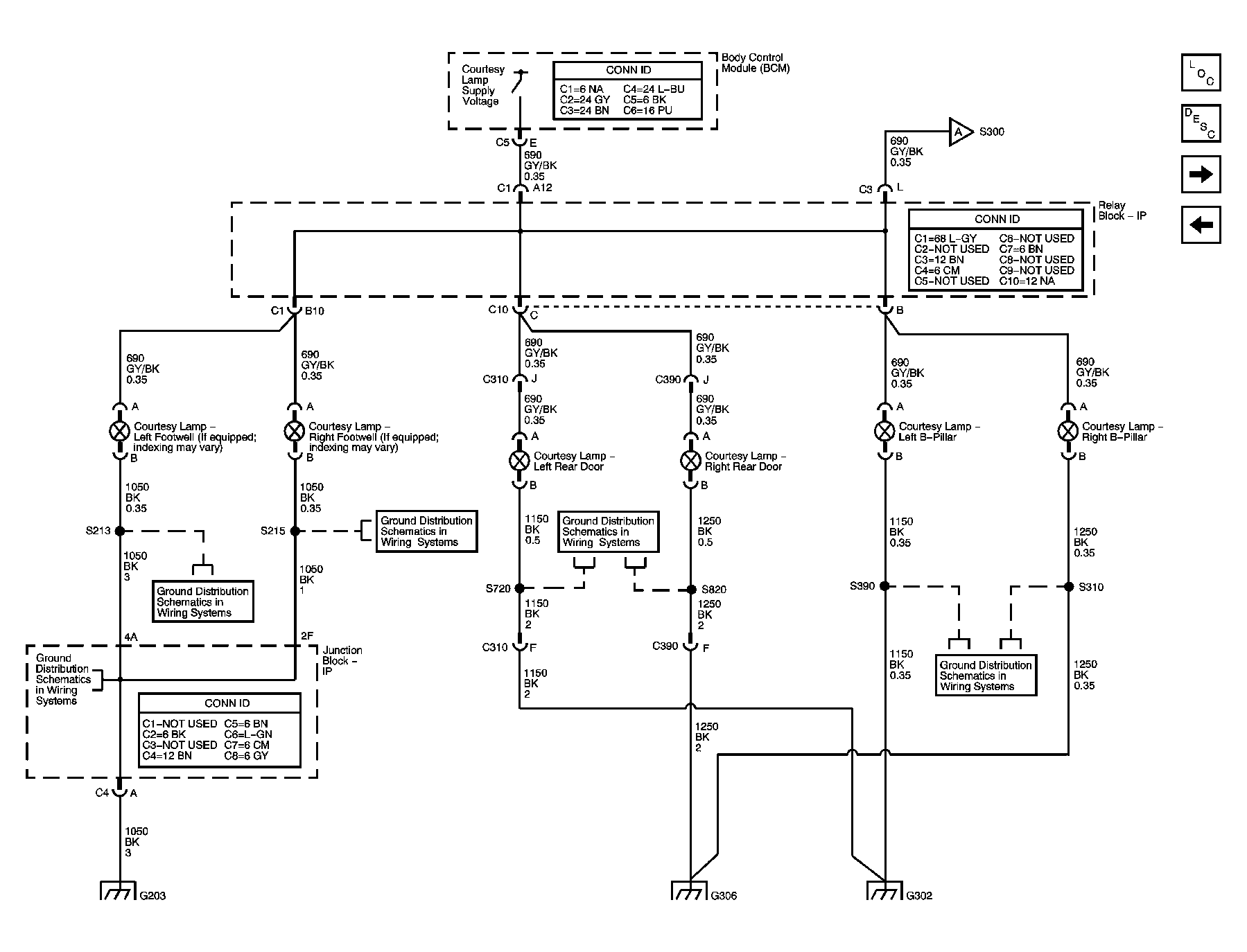

Fig 2: Courtesy Lamps - Footwells, Rear Doors, and B-Pillars
GM1196428Courtesy of GENERAL MOTORS CORP.

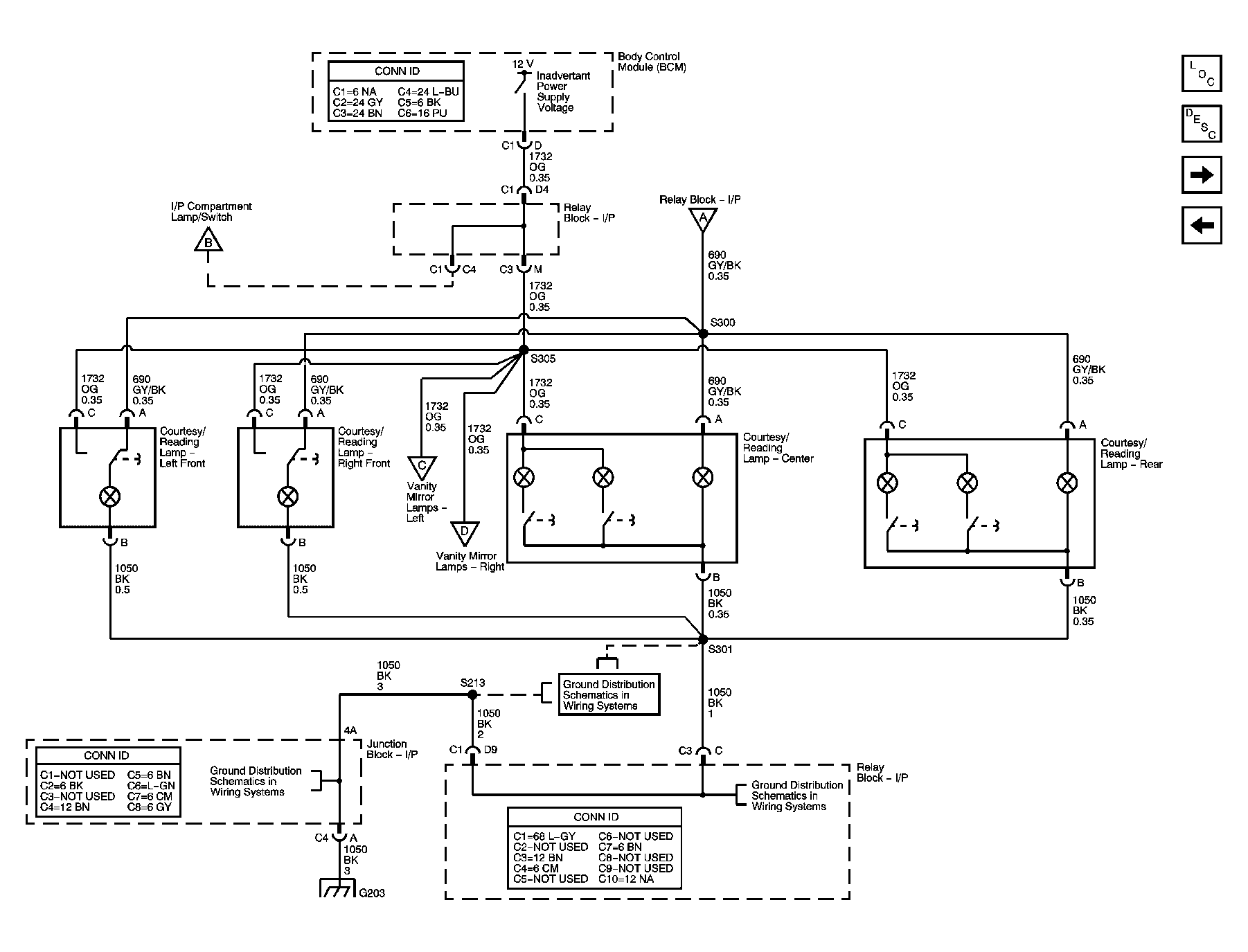

Fig 3: Courtesy Lamps -Headliner Front, Center, and Rear
GM1196429Courtesy of GENERAL MOTORS CORP.

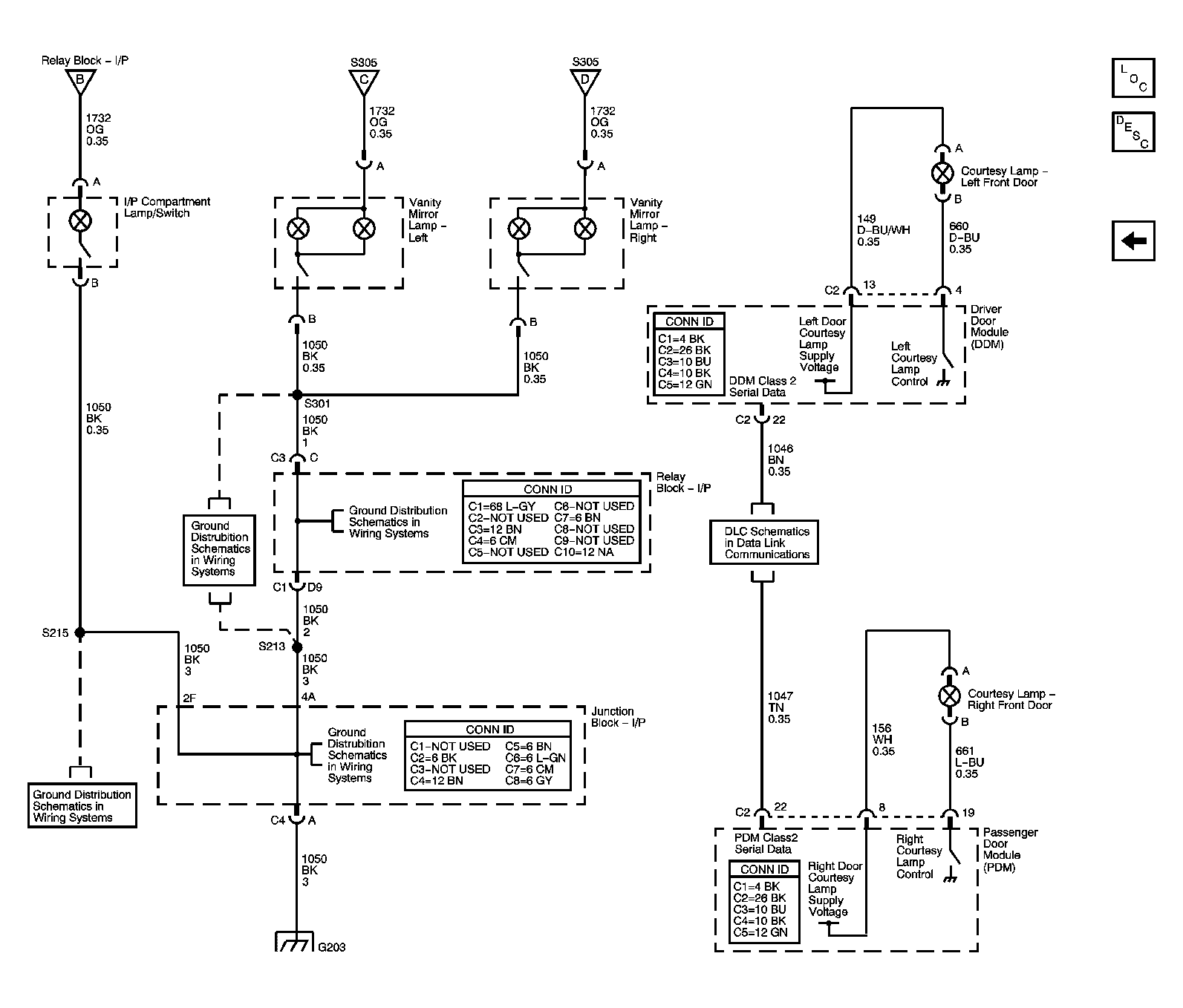

Fig 4: Courtesy Lamps -Front Doors, Vanity Mirror, and I/P Compartment
GM1196430Courtesy of GENERAL MOTORS CORP.
