Instrument Panel, Gauges, and Console Component Views

Fig 1: Left Side Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G105 - Negative Battery Cable
2	G105 - Engine Harness Ground
3	Engine Harness
4	Engine Coolant Temperature (ECT) Sensor

Fig 2: Lower Right Side Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor Connector
2	Starter Motor
3	Engine Oil Level Switch

Fig 3: Upper Rear Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	G103 - Engine Harness Ground
3	G104
4	Camshaft Position (CMP) Sensor Connector
5	Engine Oil Pressure (EOP) Sensor Connector

Fig 4: Upper Left Of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	I/P Harness
3	C210 - I/P Harness Side
4	IPC Connector

Fig 5: Splice Pack SP206 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Transfer Case Shift Control Module
3	Splice Pack SP206
4	Steering Wheel Controls Backlight Fuse

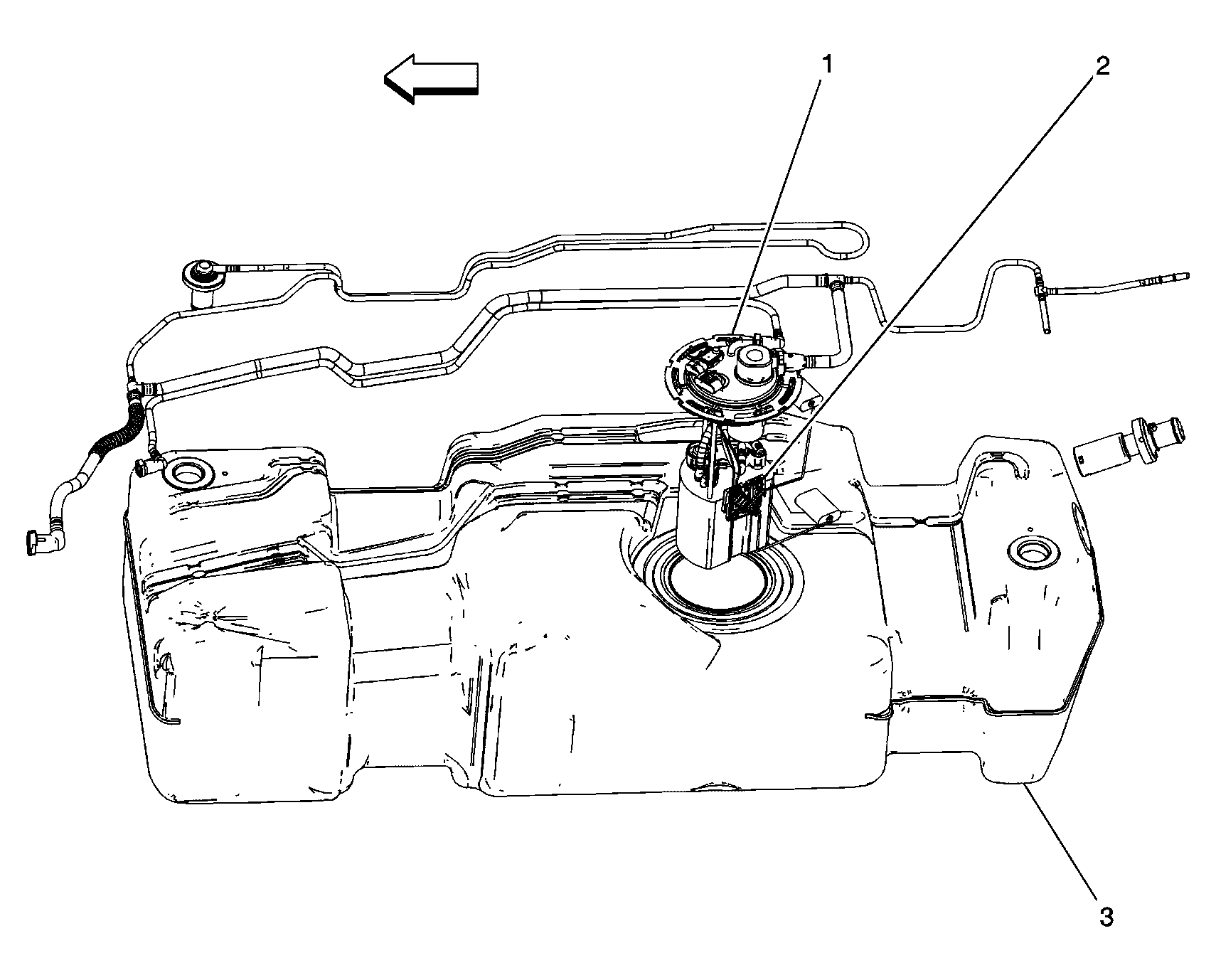

Fig 6: Fuel Level Sensor Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly
2	Fuel Level Sensor
3	Fuel Tank
