Suspension Controls Component Views

Fig 1: Air Suspension Sub-System Component View
GM856216Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Suspension Inlet Valve-LR
2 Air Suspension Inlet Valve-RR
3 Compressor Connector
4 Air Suspension Air Dryer
5 Air Suspension Compressor
6 Air Suspension Module
7 Air Suspension Exhaust Valve Connector
8 C450
9 C451
10 Air Suspension Inlet Valve Connector-LR/RR
11 Air Suspension Pressure Sensor
12 Air Suspension Exhaust Valve

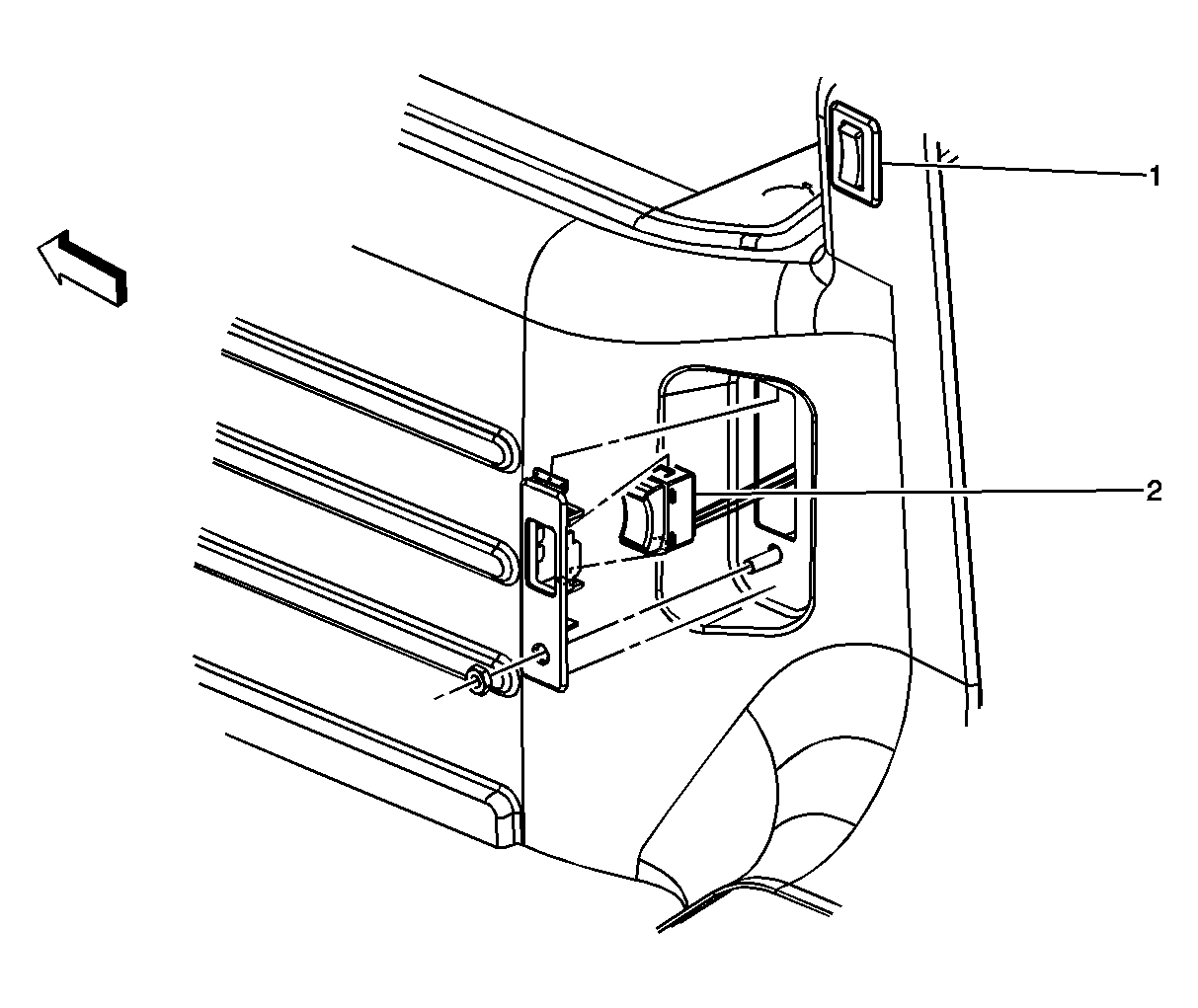

Fig 2: Air Suspension Inflator Switch Component View
GM828266Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch-Rear
2 Air Suspension Inflator Switch
Fig 3: Air Suspension Inflator Switch Connector Component View
GM830015Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RR Body Passthrough Grommet
2 Air Suspension Inflator Switch Pigtail Harness
3 Air Suspension Inflator Switch Connector
Fig 4: Air Suspension Sensor Component View - LR (RR Similar)
GM828258Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Suspension Sensor-LR
2 Left Frame Rail
Fig 5: Electronically Controlled Air Suspension Relay
GM828177Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S304
2 G300
3 Chassis Harness
4 Electronically Controlled Air Suspension Relay
Fig 6: Ride Height Switch Component View
GM819761Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 IP Compartment
2 Traction Control Switch
3 Tow/Haul Switch
4 Ride Height Switch
