Information On Hem Flange Sealer For Corrosion Protection (06-08-51-005C)
Publication date: 2013-10-08Reference number: 06-08-51-005C
Supersedes refnos: 06-08-51-005, 06-08-51-005A, 06-08-51-005B
INFORMATION ON HEM FLANGE SEALER FOR CORROSION PROTECTION
TECHNICAL SERVICE BULLETIN
Reference Number(s): 06-08-51-005C, Date of Issue:
October 30, 2013
Superceded Bulletin(s): 06-08-51-005B
| Affected Model(s): | 2014 and Prior GM Cars and Trucks |
| Attention: | Please direct this bulletin to the Body Shop or any areas of your dealership where sheet metal replacement or corrosion repairs take place. |
| Supercedes: | This bulletin has been revised to add the 2014 model year and update product information. Please discard Corporate Bulletin Number 06-08-51-005B. |
REPLACEMENT SHEET METAL
Metal or aluminum overlap joints and seams, commonly referred to as hem flanges, on replacement doors, hoods, decklids and liftgates should be sealed to prevent moisture from entering the bonded hem flange using a quality 2K sealer such as the following products, or equivalent:
- Lord Fusor 123 or 123EZ Non-Sag Seam Sealer
- 3M 8308 Ultrapro sealer or 3M 8323 Factory Match sealer
- Crest CT-NT Thick-n-Tan
- Crest CB-M1 Black Majik or CB-J2 Black Jack
- Kent E-6000 Non-Sag seal sealer
The applied sealer must meet the following criteria:

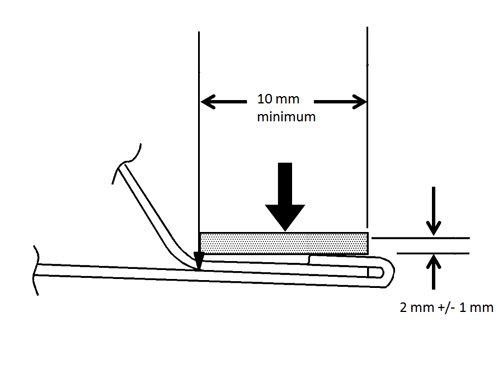

- The sealer must be free of skips using a ribbon tip to locate the bead over the edge of the hem. Refer to the following illustration.
- The sealer must cover all edges with a bead width of approximately 10 mm (0.39 in) and approximately 2 mm (0.08 in) thick.
- The sealer must be paintable.
- The sealer must retain its flexible characteristics after curing.
- The sealer must not block a water drain path.
Always use Genuine GM replacement sheet metal.
