Needle Bearings Found In Oil Pan (Replace Rocker Arms) (02-06-01-029)

Publication date: 2002-09-01
Reference number: 02-06-01-029

NEEDLE BEARINGS FOUND IN OIL PAN (REPLACE ROCKER ARMS)

NEEDLE BEARINGS FOUND IN OIL PAN (REPLACE ROCKER ARMS)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-06-01-029, Date of Issue:  September, 2002
CADILLAC: 2002 Escalade, Escalade EXT 5.7L or 6.0L Engine
CHEVROLET: 1998-2002 Camaro, Corvette; 1999-2002 Silverado; 2000-2002 Suburban, Tahoe; 2002 Avalanche with 4.8L, 5.3L, 5.7L or 6.0L Engine
GMC: 1999-2002 Sierra; 2000-2002 Yukon, Yukon XL with 4.8L, 5.3L, 5.7L or 6.0L Engine
PONTIAC: 1998-2002 Firebird with 5.7L Engine
HUMMER: 2003 H2 with 6.0L Engine
SECTION: 06 - Engine/Propulsion System

DESCRIPTION

Needle Bearings Found in Oil Pan (Replace Rocker Arms)

Some customers may comment or technicians may notice needle bearings being found during an engine oil change. The bearings may be found in either the drain pan used or on the magnetic oil pan drain plug.

BULLETIN CONTENT

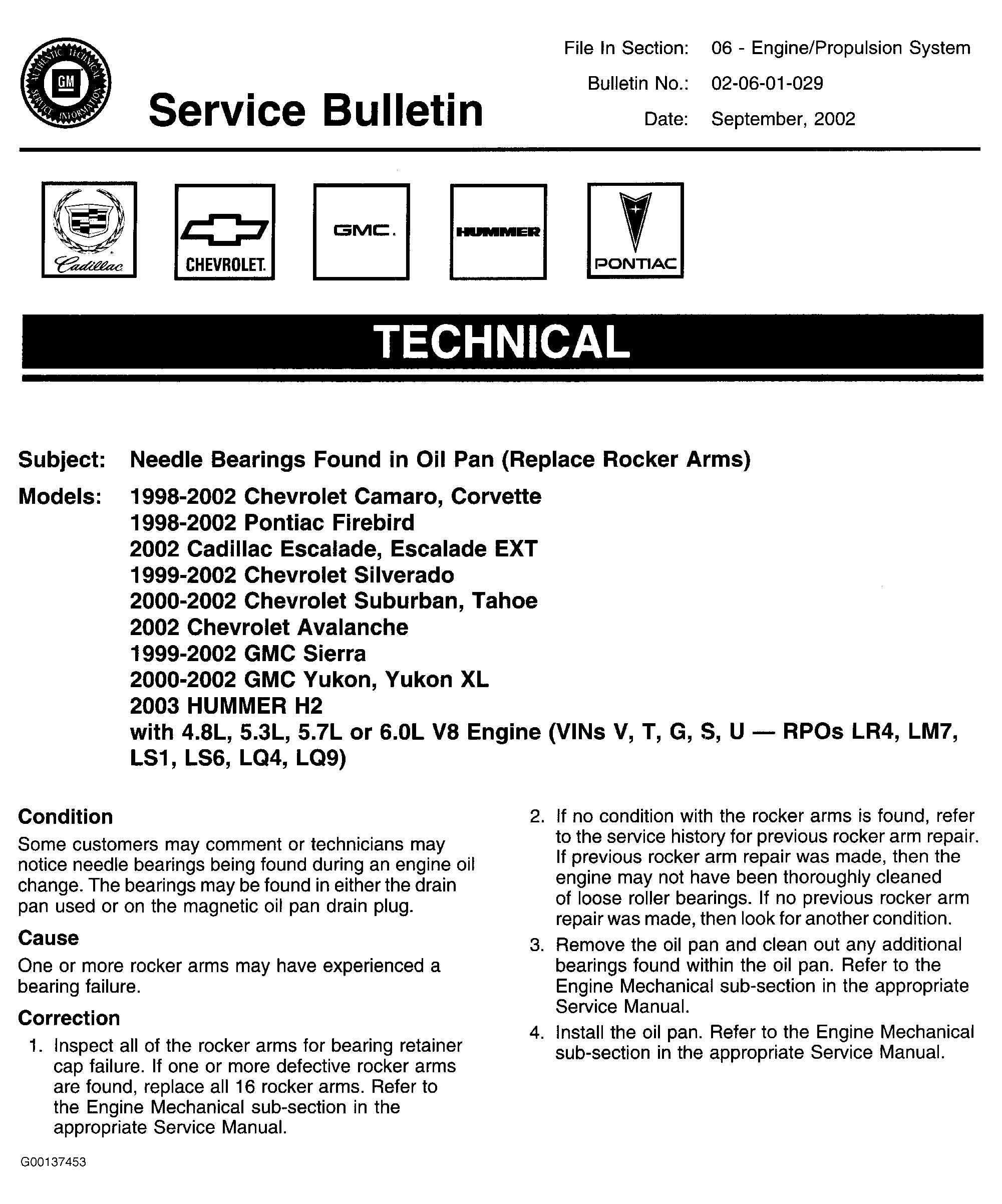

Fig 1: Page 1 of Bulletin
G00137453

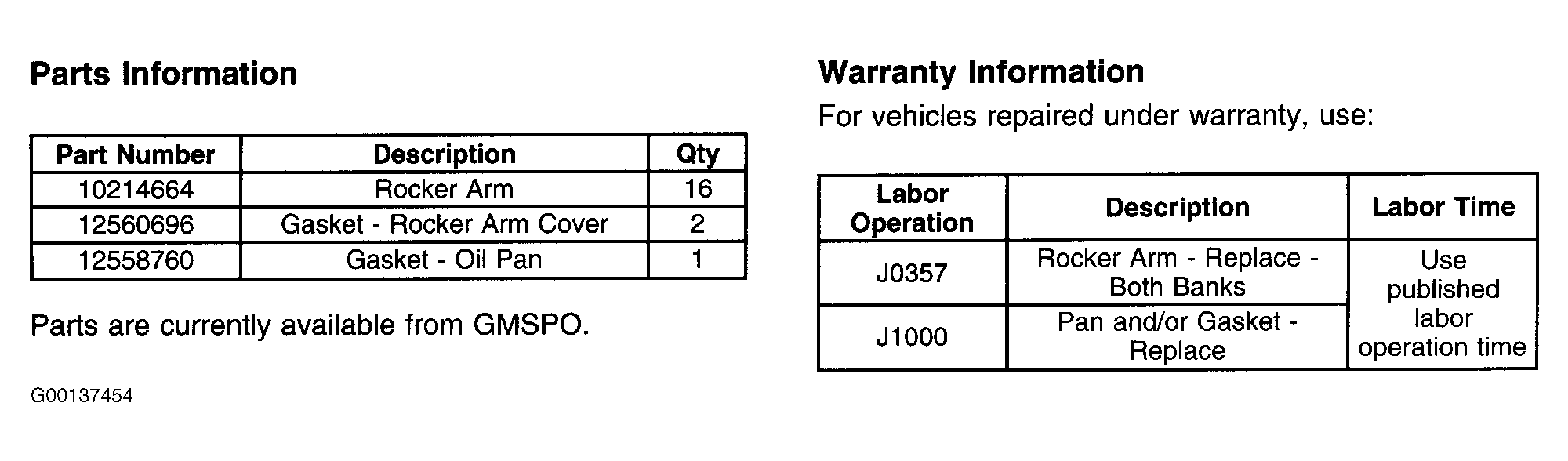

Fig 2: Page 2 of Bulletin
G00137454
