Luggage Carrier Cross Rail Wind Rush Noise With Sunroof Open (Adjust Rail) (03-08-67-002)

Publication date: 2003-03-19
Reference number: 03-08-67-002

LUGGAGE CARRIER CROSS RAIL WIND RUSH NOISE WITH SUNROOF OPEN (ADJUST RAIL)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03-08-67-002, Date of Issue: March 19, 2003

HUMMER:	2003 H2 with Sunroof without Roof-Mounted Spot Light Rail
SECTION:	08 - Body and Accessories

CONDITION

Some customers with vehicles equipped with a roof luggage rack and sunroof may comment that there is excessive noise while driving with the sunroof open.

CAUSE

The roof luggage rack cross bars may be positioned too far forward.

CORRECTION

The roof luggage rack package includes stops that prevent the luggage carrier cross rail from being moved too far forward. This is necessary to avoid damage to the sunroof (if equipped), and to avoid interference with the OnStar system. It will also reduce the noise level while driving with the sunroof open.

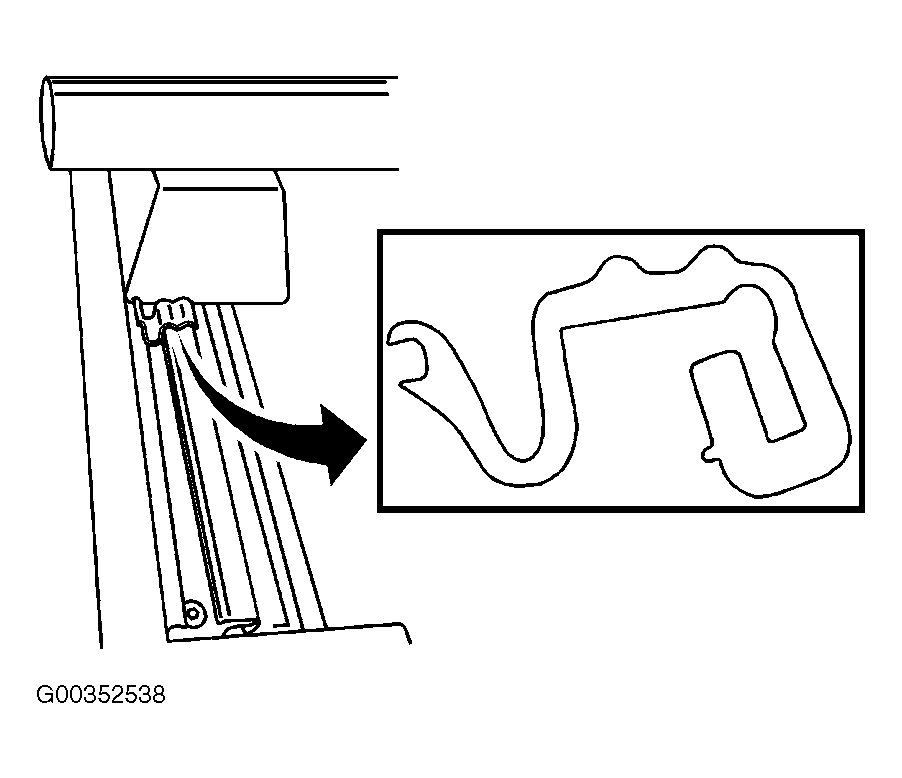

Snap the stops onto the side rails at the location labeled "Sunroof Stop" as shown in Fig 1 .

Fig 1: Sunroof Stop
This illustration, (Fig 2 ), shows the cross rail and the stop clip installed in the correct "Sunroof Stop" position.

Fig 2: Installed Position

WARRANTY INFORMATION

For vehicles repaired under warranty, use:

WARRANTY INFORMATION

Labor Op.	Description	Labor Time
B2942	Luggage Rack Bracket and/or Bar - Adjust	* 0.2 hr
* This is a unique labor time which should only be used for this bulletin.
