Squeak or Rattle Noise from Rear Liftgate (Remove Material/Adjust Striker) (04-08-59-001)

Squeak or Rattle Noise from Rear Liftgate (Remove Material/Adjust Striker)

TECHNICAL SERVICE BULLETIN

Condition 1

Some customers may comment on a squeak noise in the rear of the vehicle when driving over rough roads.

Condition 2

Some customers may comment on a rattle noise in the rear of the vehicle when driving over rough roads.

Cause 1

A rubber closeout strip between the bumper and body may be making contact with the liftgate as seen in illustration above.

Cause 2

The liftgate latch may be making hard contact with the striker.

Correction 1

1. Open the liftgate.
Fig 2: Tail Gate Opening
Courtesy of GENERAL MOTORS CORP.

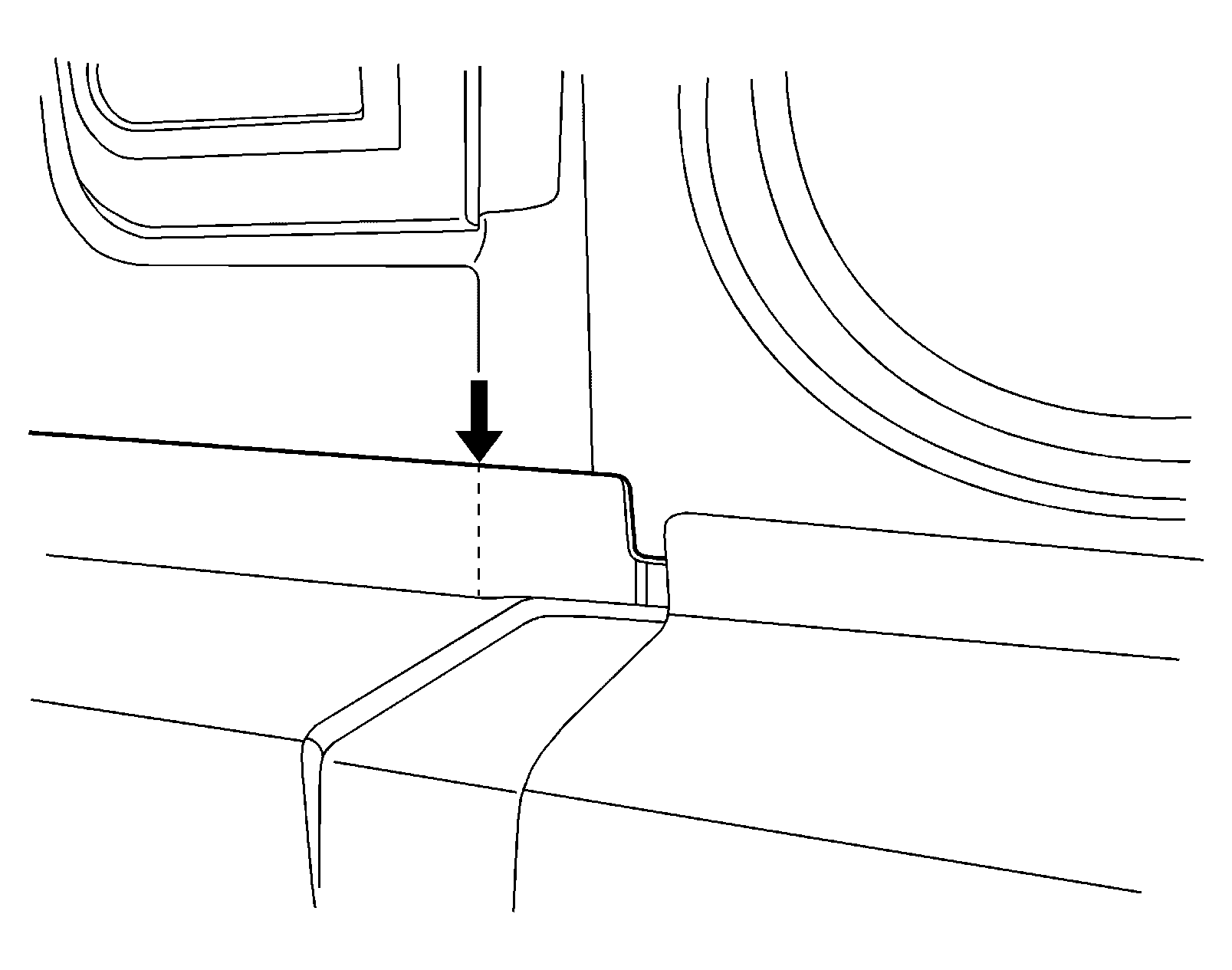

2. Mark the filler strip at the end of the tail gate opening as seen in illustration above.
Fig 3: Filler Strip
Courtesy of GENERAL MOTORS CORP.

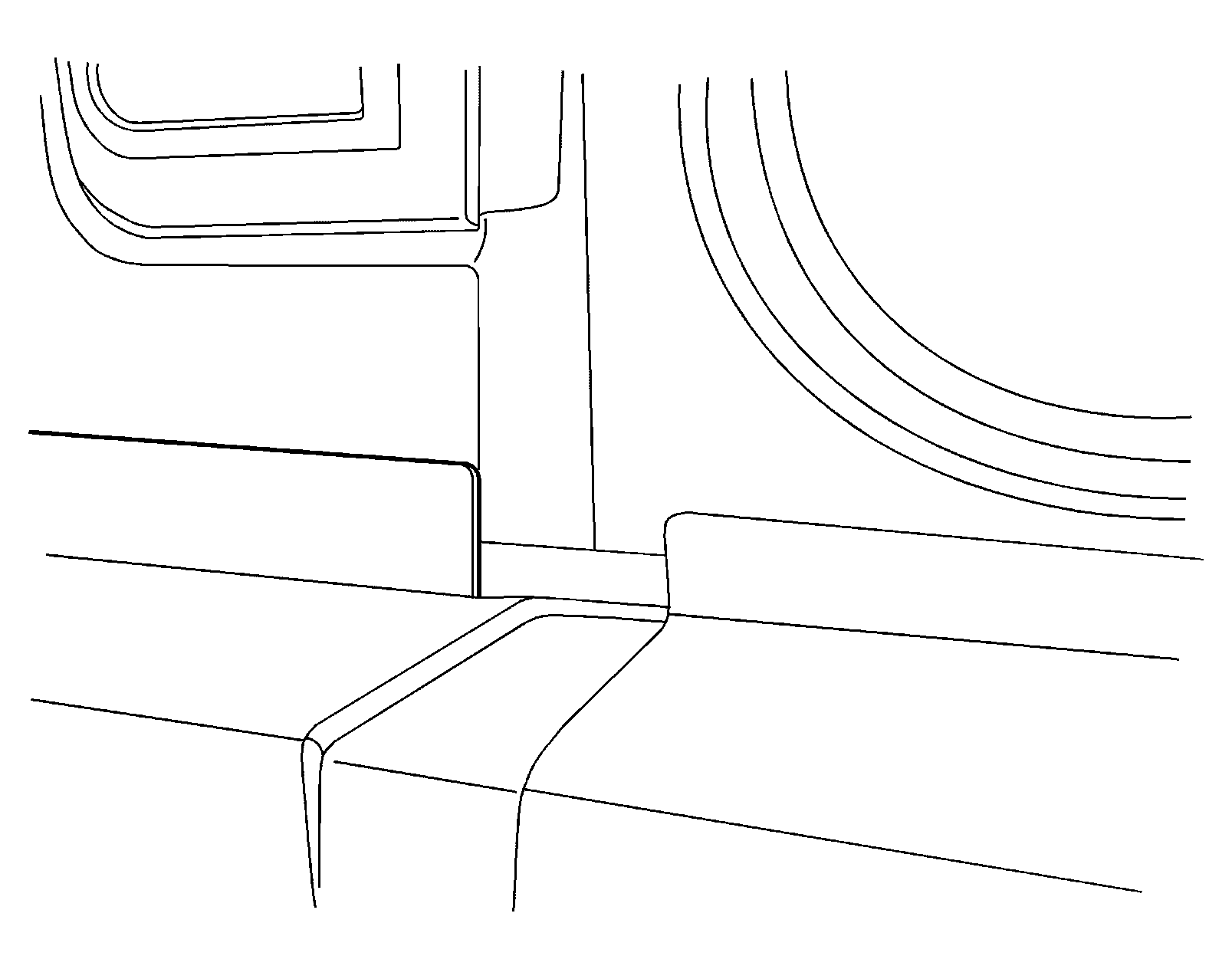

3. Remove the filler strip and cut the excess material off as seen in illustration above.
Fig 4: Reinstallation
Courtesy of GENERAL MOTORS CORP.
4. Install the filler strip.

Correction 2

Adjust the liftgate strikers. Refer to Lock Striker Adjustment (SI Document ID #1080911).

Warranty Information

For vehicles repaired under warranty, use:

Labor Operation	Description	Labor Time
B8714	Rear Bumper Filler Strip - Trim	0.2 hr
B4379	Lift Gate Striker - Adjust	0.2 hr
