Replacement Of Air Inlet Grille Panel Or End Cap Retainers When Damaged (03-08-111-001)

Publication date: 2003-02-27
Reference number: 03-08-111-001

REPLACEMENT OF AIR INLET GRILLE PANEL OR END CAP RETAINERS WHEN DAMAGED

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03-08-111-001, Date of Issue: February 27, 2003

HUMMER:	2003 H2
SECTION:	08 - Body and Accessories

SERVICE INFORMATION

NOTE: Use extreme caution not to damage the end caps or air inlet grille panel when removing. Refer to Air Inlet Grille Panel Replacement (SI Document ID #839312).

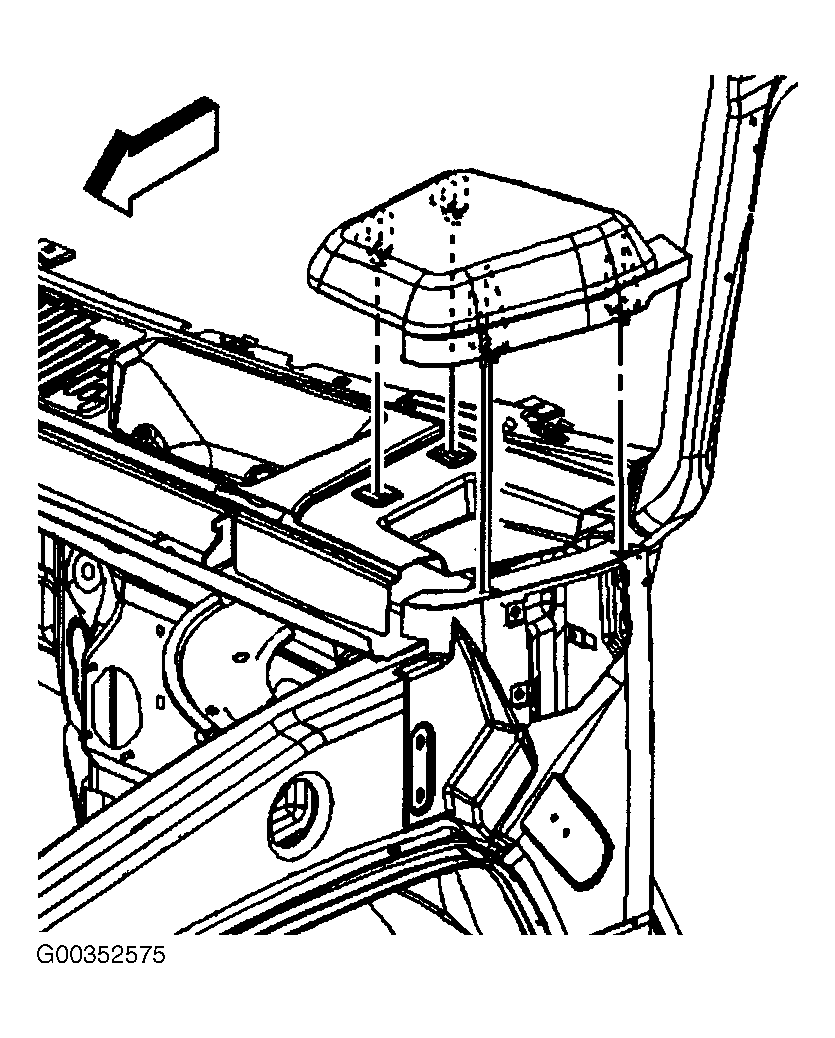

Fig 1: End Cap

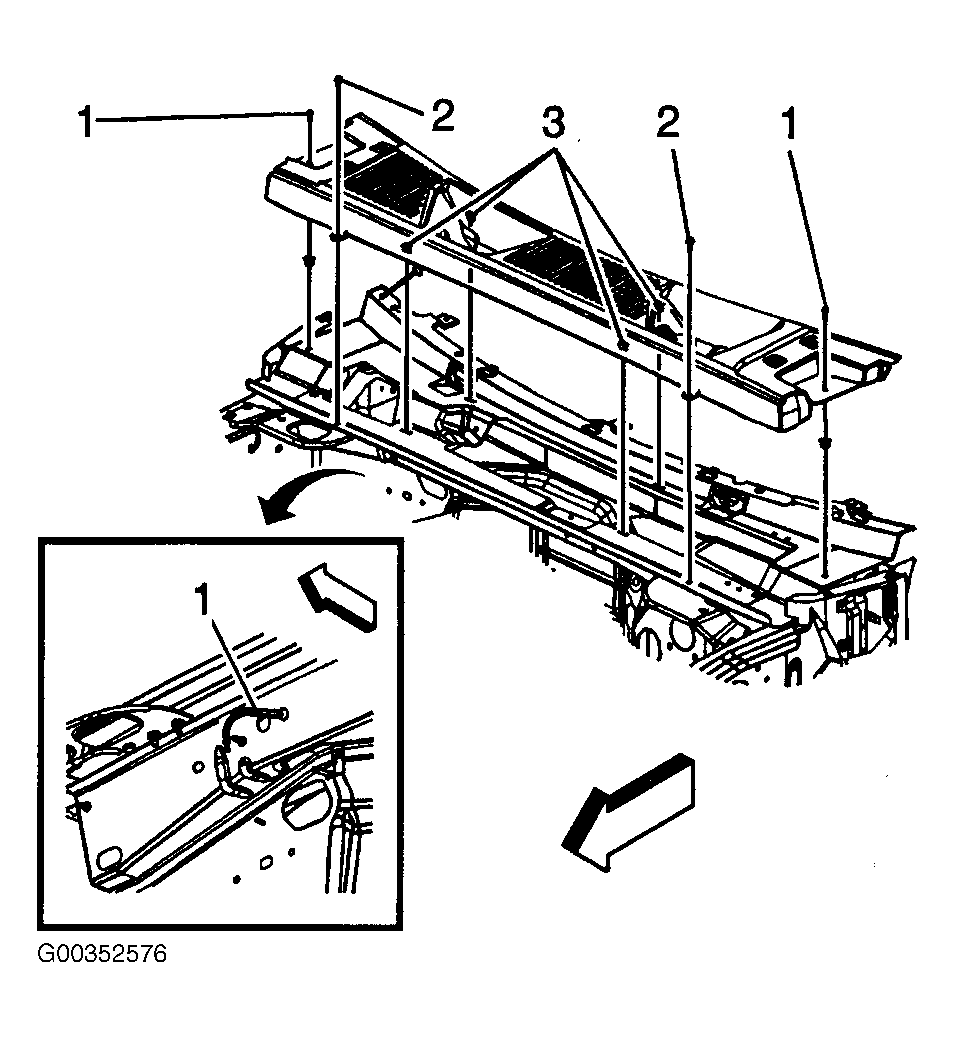

Fig 2: Air Inlet Grille Panel

When removal of the air inlet grille panel (sometimes referred to as the cowl screen panel) or end caps is necessary, damage may occur to one or more of the retainers (3). If a retainer (3) is damaged/broken upon removal, replace all damaged retainers (3) with P/N 15033681.

PARTS INFORMATION

Part Number	Description	Qty
15033681	Retainer	As Needed

Parts are currently available from GMSPO.
