Power & Grounding Component Views

Fig 1: Fuse Block - Underhood - Stud #1 & Stud #2
GM819806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Stud #2-Trailer Connector Power Feed
2 Stud #1
3 Fuse Block-Underhood
4 IP Harness
5 C102

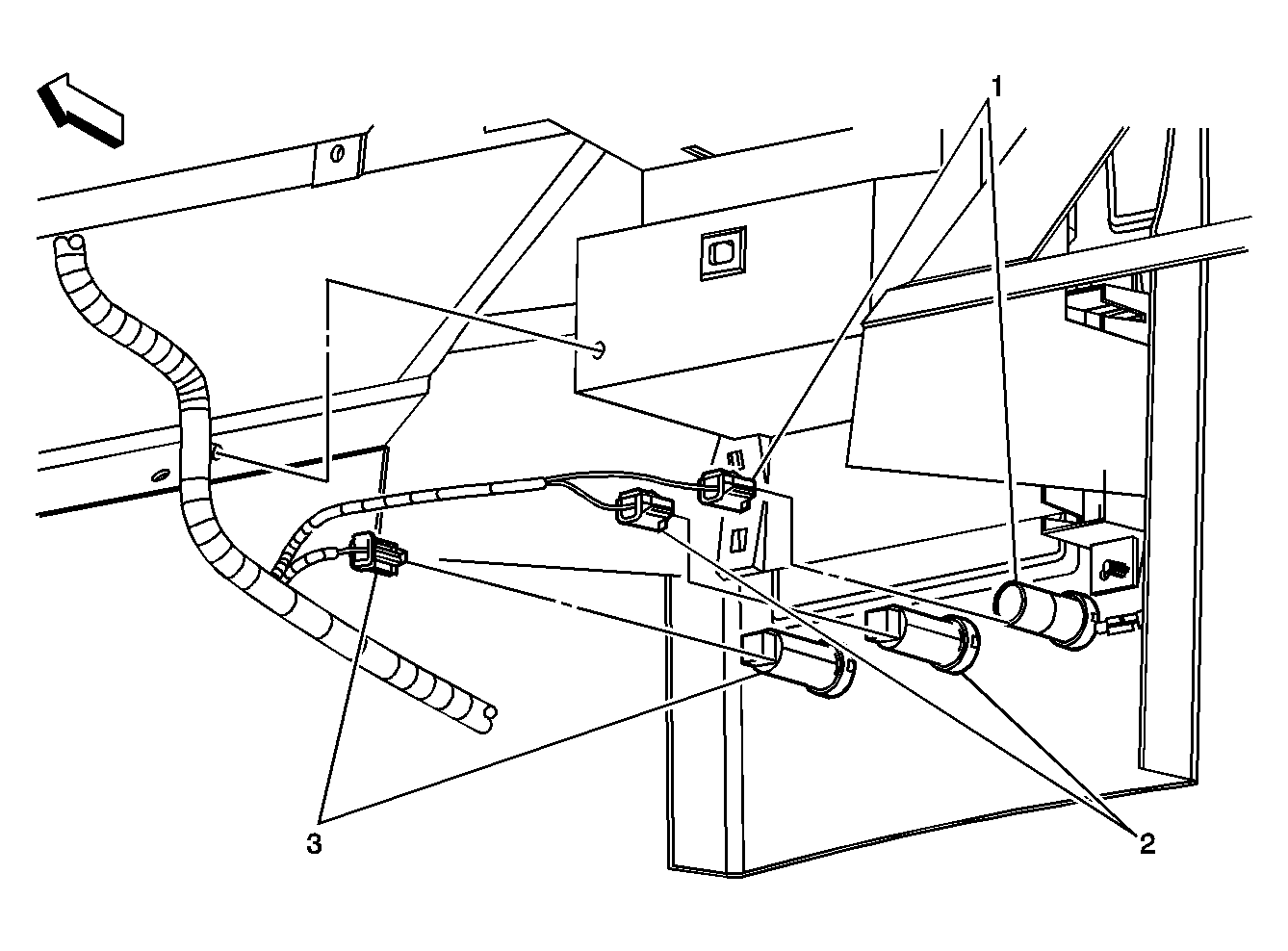

Fig 2: Accessory Power Outlets - IP
GM819933Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
2 Accessory Power Outlet
3 Accessory Power Outlet
Fig 3: Accessory Power Outlets - Rear Console
GM828480Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RSA Controller
2 Heated Seat Switch-RR
3 Accessory Power Outlet-RR
4 Accessory Power Outlet-LR
5 Heated Seat Switch-LR

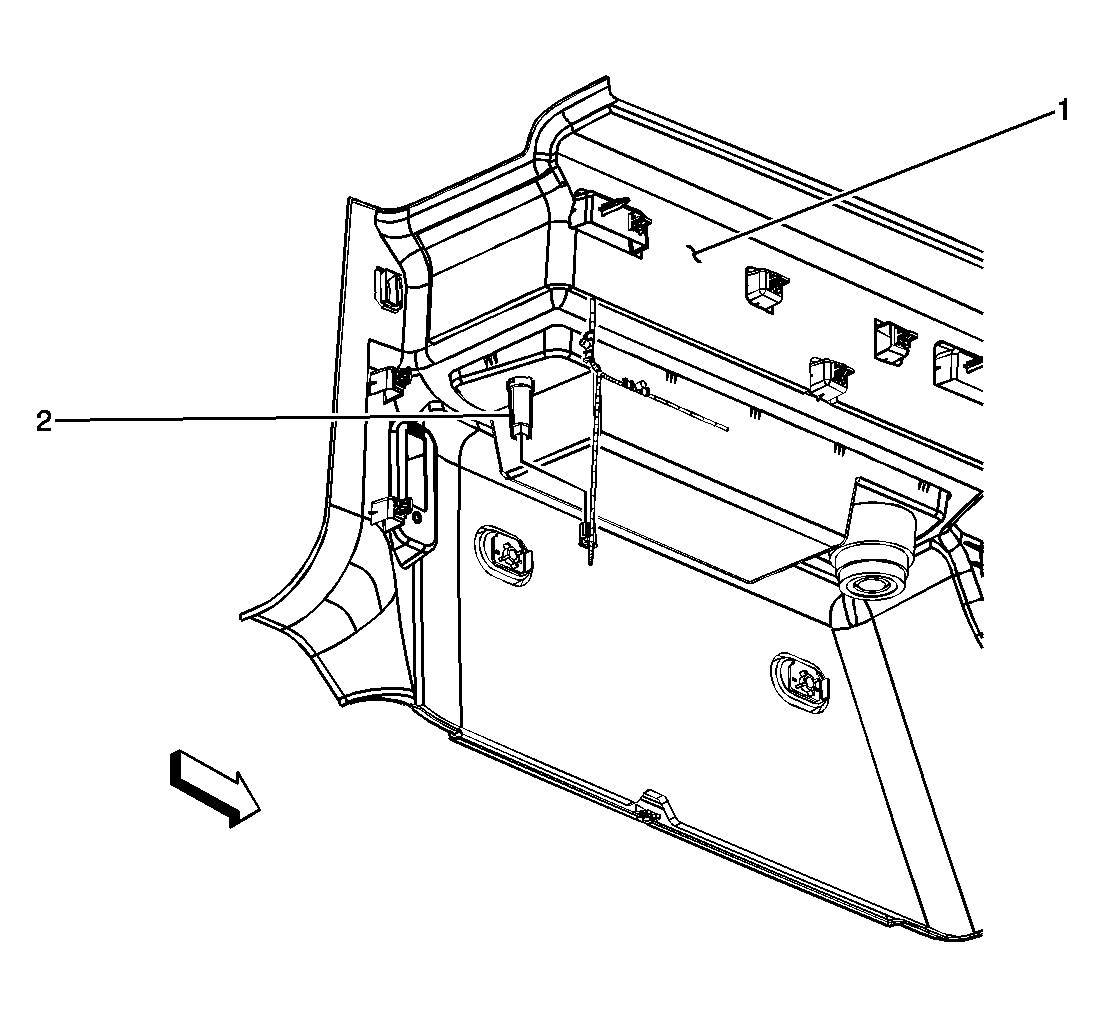

Fig 4: Accessory Power Outlet - Rear
GM825890Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Cargo Storage Bin
2 Accessory Power Outlet-RR
Fig 5: Electronically Controlled Air Suspension Relay & G300
GM828177Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S304
2 G300
3 Chassis Harness
4 Electronically Controlled Air Suspension Relay
Fig 6: Steering Wheel Controls Backlight Fuse
GM857908Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Transfer Case Shift Control Module
3 Splice Pack SP206
4 Steering Wheel Controls Backlight Fuse
Fig 7: G100
GM825388Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Negative Battery Cable
2 Left Front Frame Rail
3 G100-Negative Battery cable
4 G100-Forward Lamp Harness
5 Forward Lamp Harness
Fig 8: G103 & G104
GM825336Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 G103-Engine Harness Ground
3 G104
4 Camshaft Position (CMP) Sensor Connector
5 Engine Oil Pressure (EOP) Sensor Connector
Fig 9: G102
GM825321Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102-Negative Battery Cable
2 G102-Engine Harness Ground
3 Engine Harness
Fig 10: G106
GM825386Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G106
2 Dash Panel
3 Engine Ground Strap
Fig 11: G200
GM820070Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200-I/P Harness Side
2 C201-I/P Harness Side
3 G200
4 I/P Harness

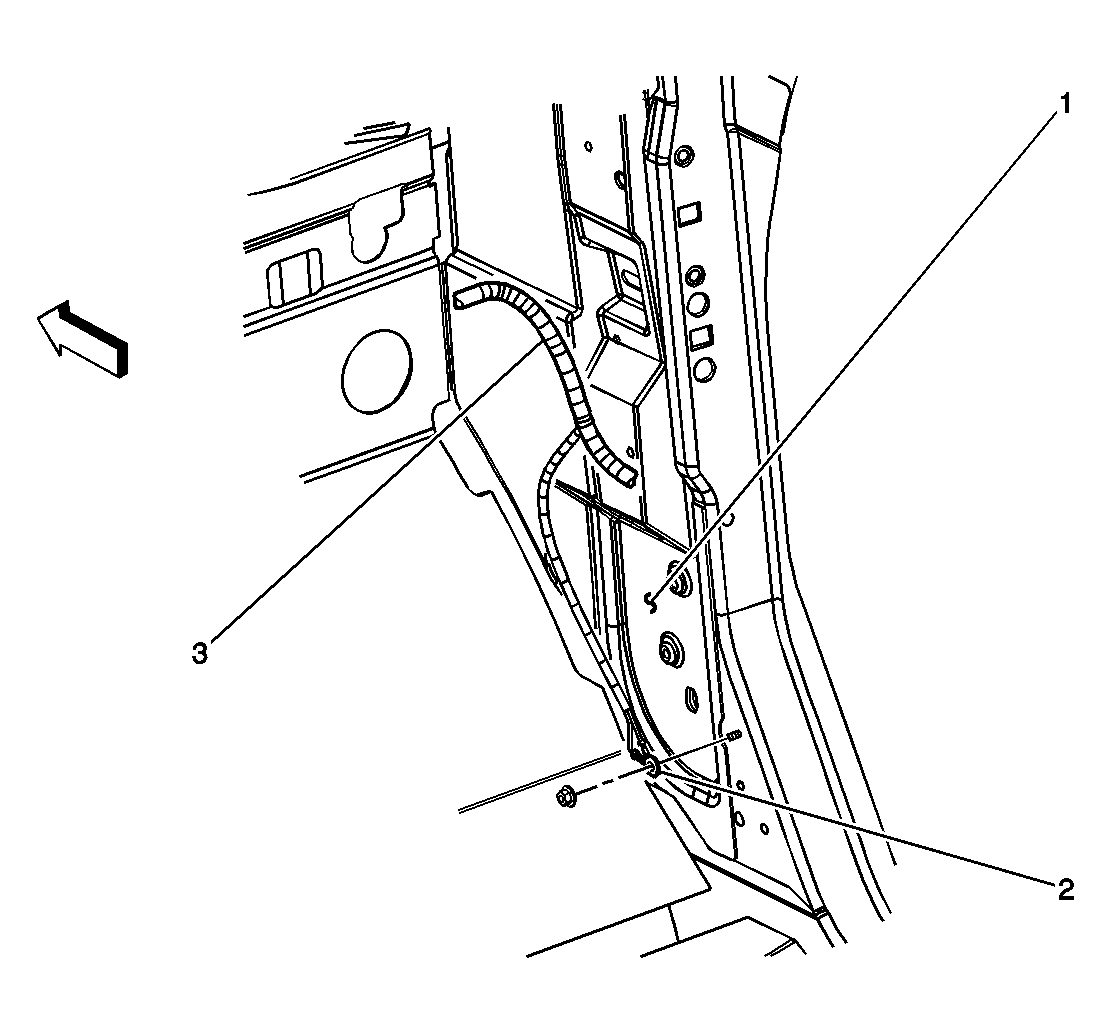

Fig 12: G203
GM825302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cowl Panel Insulator
2 G203
3 HVAC Harness
Fig 13: G300
GM825346Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G300
3 Left Frame Body Mount
Fig 14: G302
GM825282Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B Pillar
2 Body Harness
3 G302
Fig 15: G304
GM828959Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G304
2 Body Harness
3 Inflatable Restraint and Diagnostic Module (SDM) Connector
Fig 16: G306
GM825292Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B Pillar
2 Body Harness
3 G306
Fig 17: G308
GM825382Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G308
2 Body Mount-RH
3 Chassis Harness
Fig 18: G310
GM825379Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Mount-LH
2 G310
3 Chassis Harness
Fig 19: G401
GM825380Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G401
2 Body Mount-LH
3 Fuel Tank Filler Ground
4 Chassis Harness
Fig 20: G405
GM825384Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G405
3 Body Mount-RH
4 Air Suspension Inflator Switch Connector
Fig 21: G410 & SP410
GM825429Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inner Side Panel-RH
2 G410
3 SP410

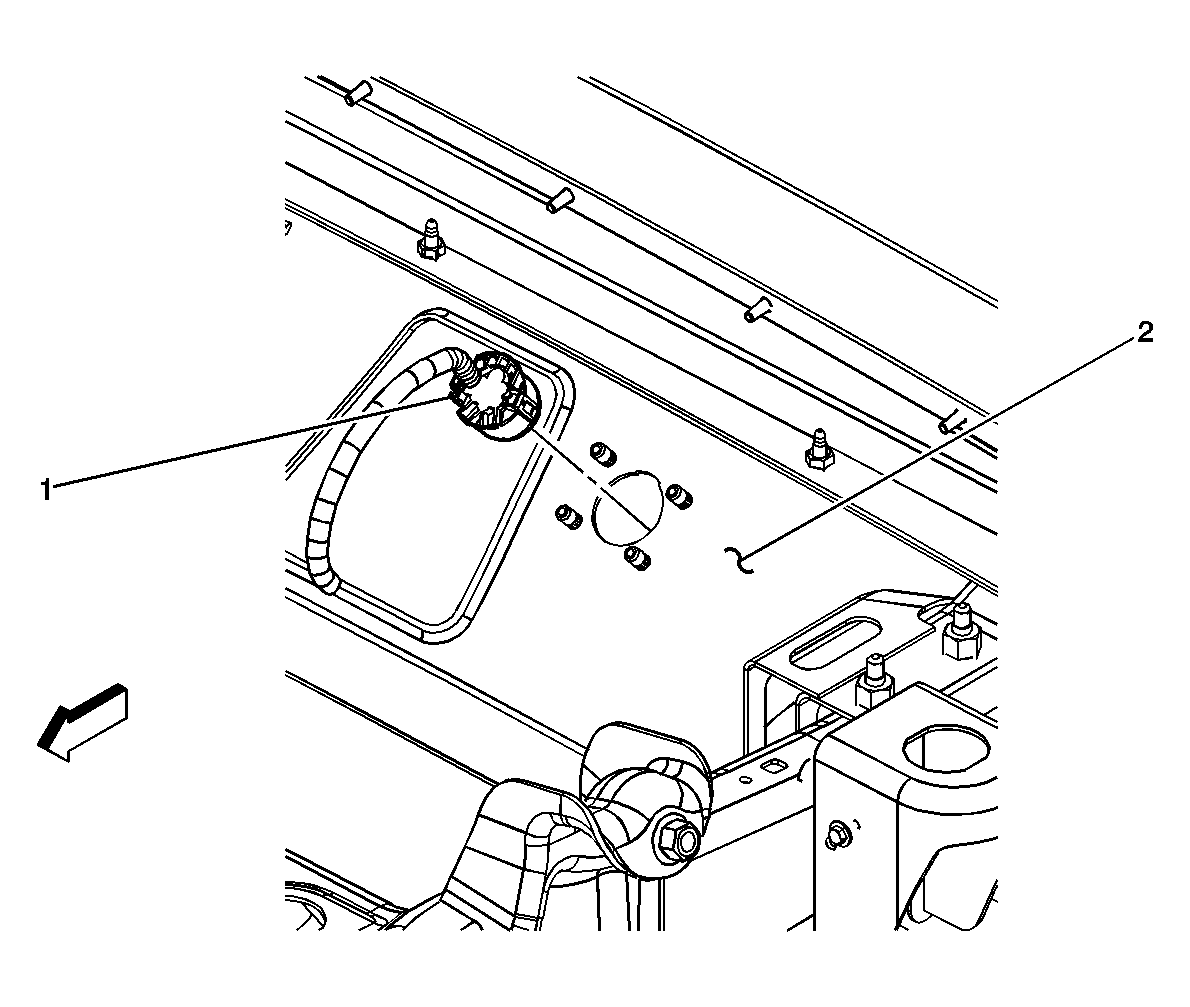

Fig 22: Trailer Receptacle
GM828318Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Trailer Receptacle
2 Rear Bumper Fascia
