Instrument Cluster Schematics

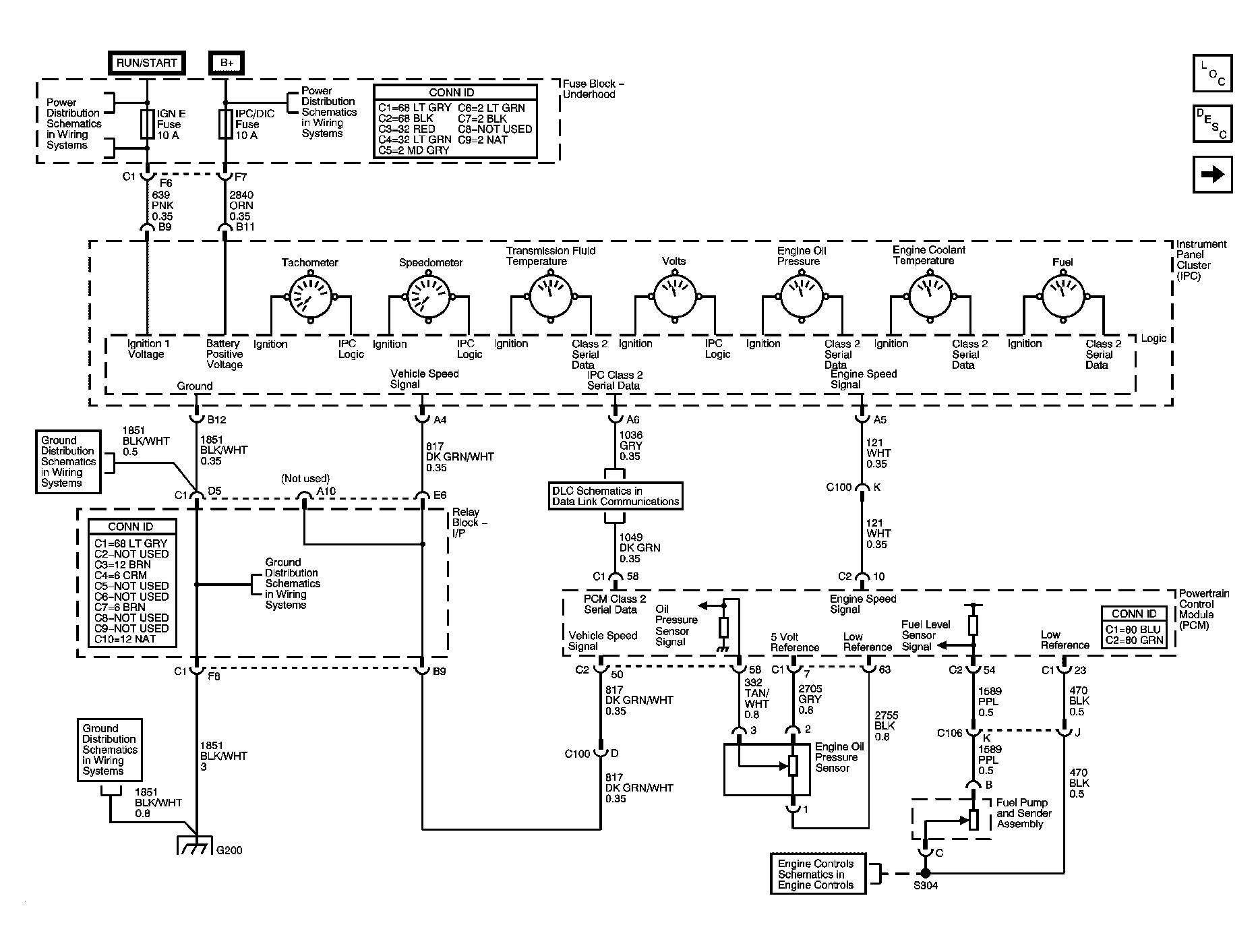

Fig 1: Power, Grounding, DLC, Sensors and Gages Schematic
GM840950Courtesy of GENERAL MOTORS CORP.

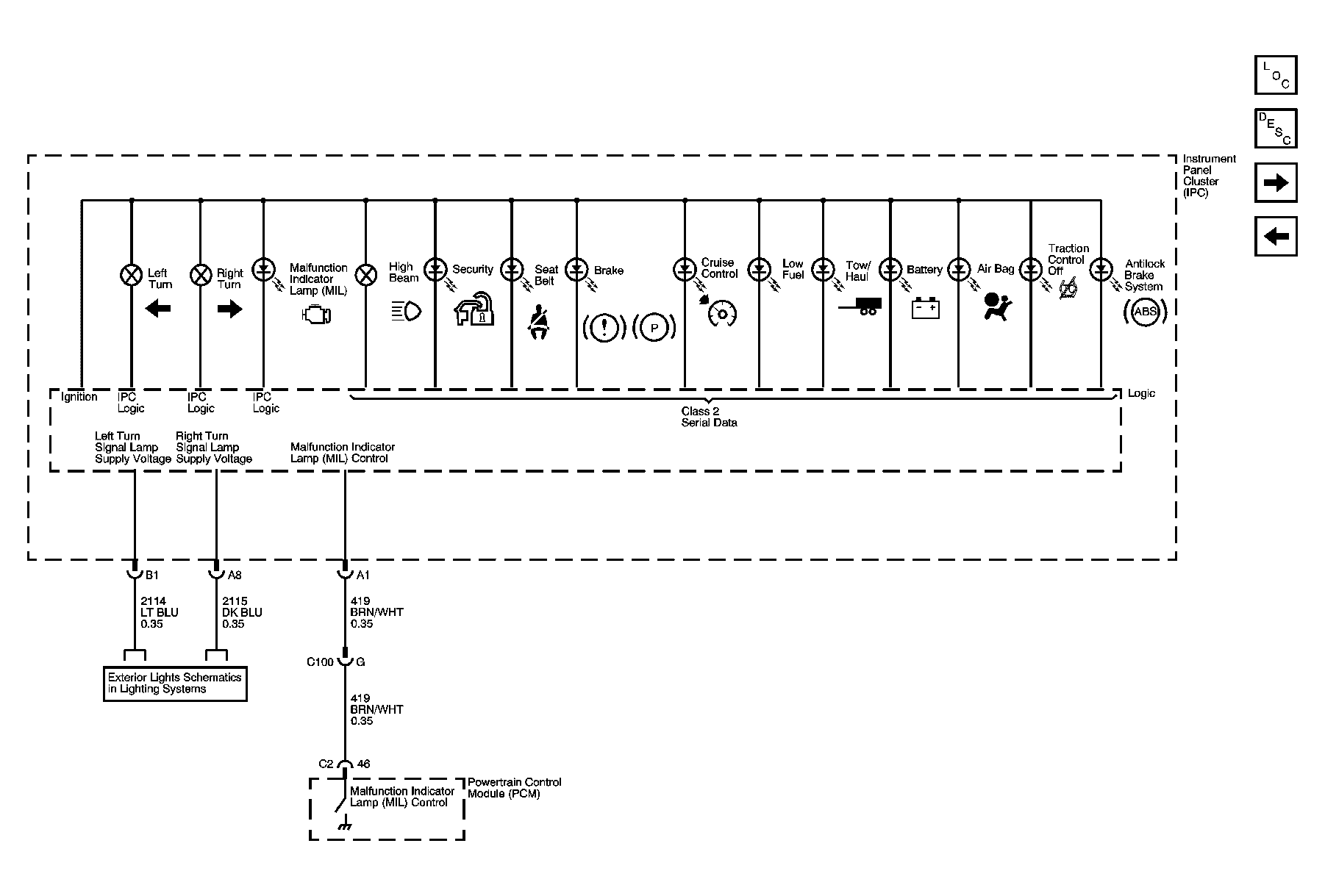

Fig 2: Indicators Schematic
GM840953Courtesy of GENERAL MOTORS CORP.

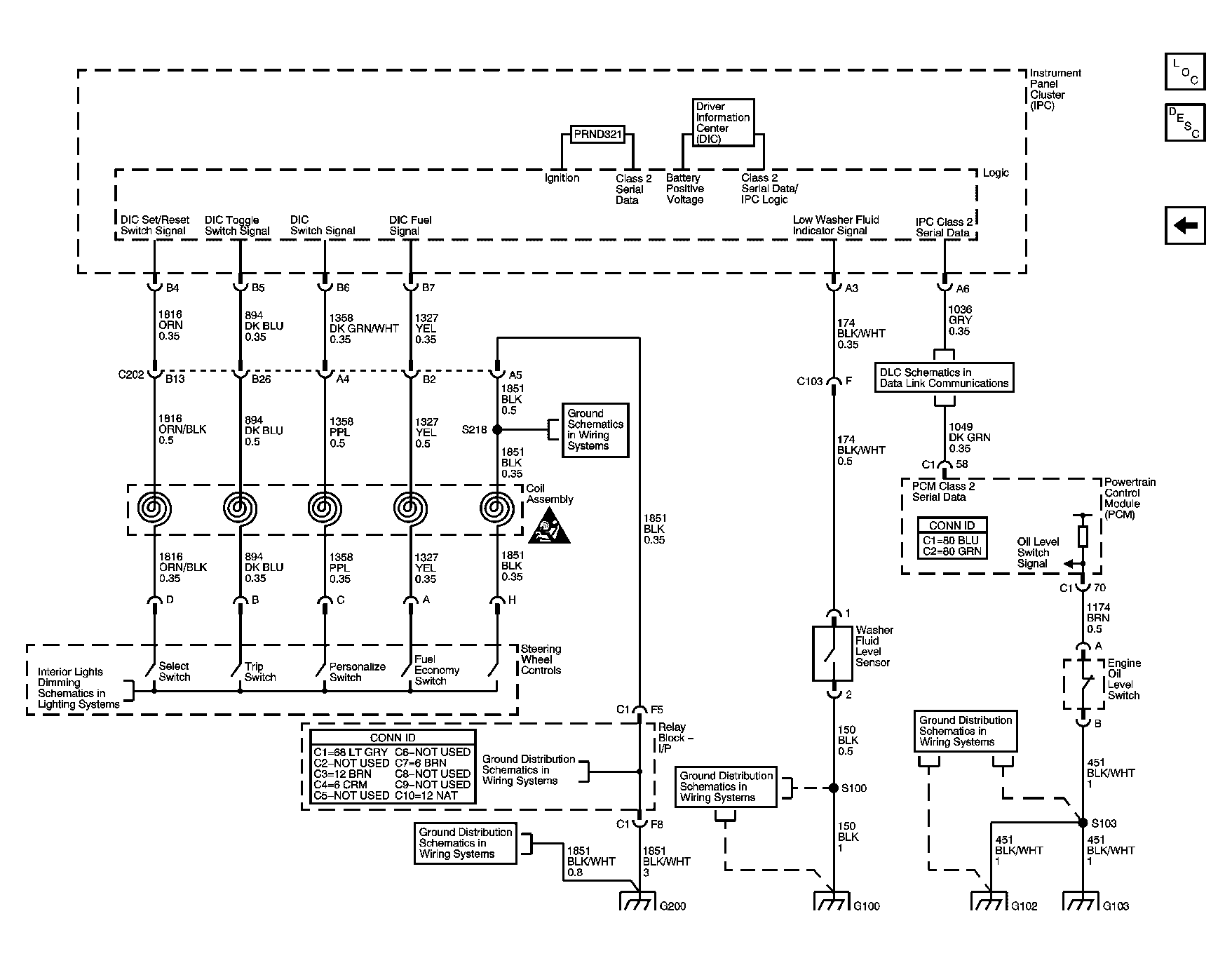

Fig 3: Displays Schematic
GM840955Courtesy of GENERAL MOTORS CORP.
