Instrument Panel, Gages, & Console Component Views

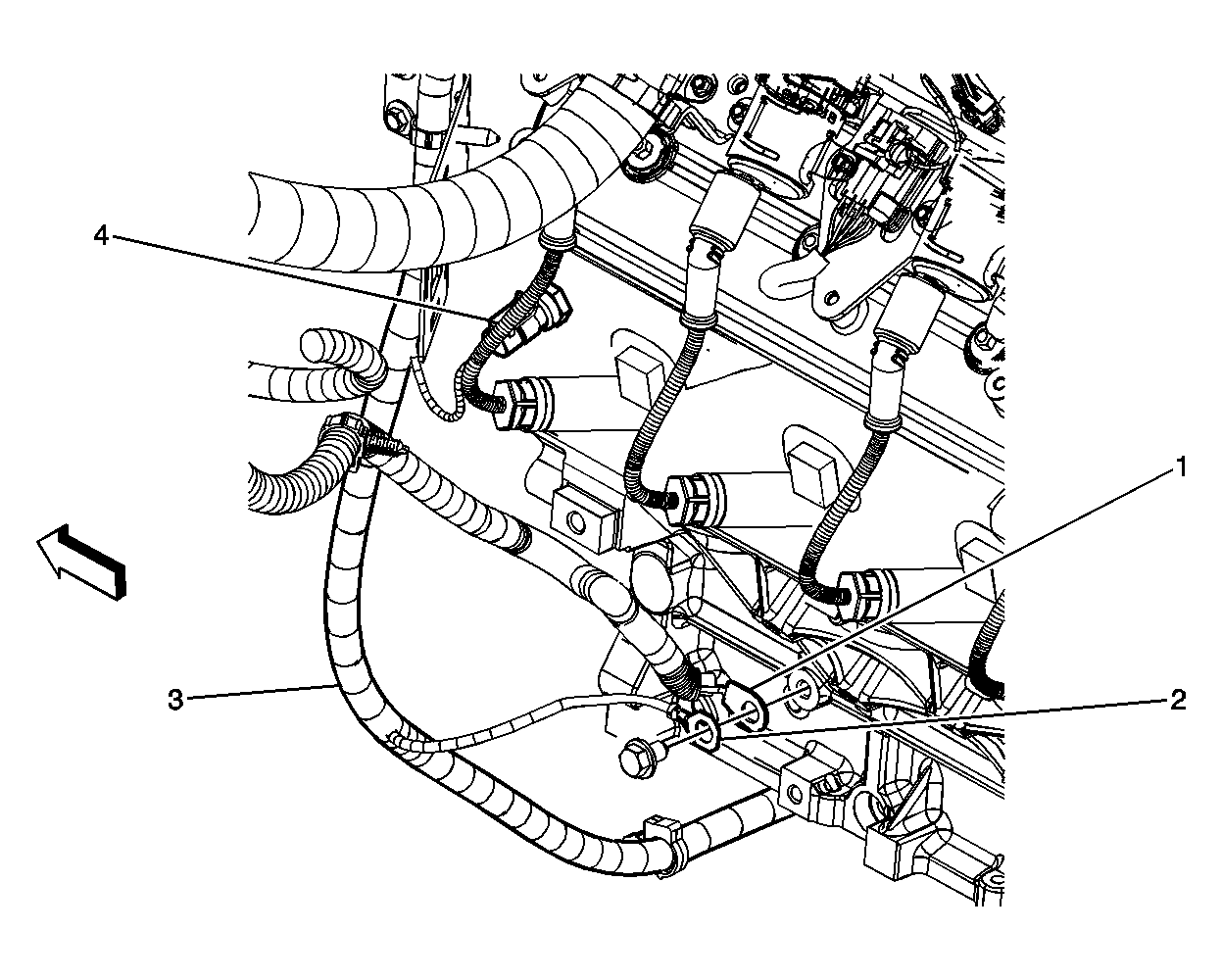

Fig 1: Engine Coolant Temperature (ECT) Sensor And G105

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G105-Negative Battery Cable
2	G105-Engine Harness Ground
3	Engine Harness
4	ECT Sensor

Fig 2: Engine Oil Level Switch, Starter And CKP Sensor Connector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CRP) Sensor Connector
2	Starter Motor
3	Engine Oil Level Switch

Fig 3: Engine Oil Pressure (EOP) Sensor Connector, CMP Sensor Connector, G103 And G104

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	G103-Engine Harness Ground
3	G104
4	Camshaft Position (CMP) Sensor Connector
5	Engine Oil Pressure (EOP) Sensor Connector

Fig 4: Instrument Panel Cluster (IPC) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	IPC
2	I/P Harness
3	C210-I/P Harness Side
4	IPC Connector
