Interior Lights Dimming Schematics

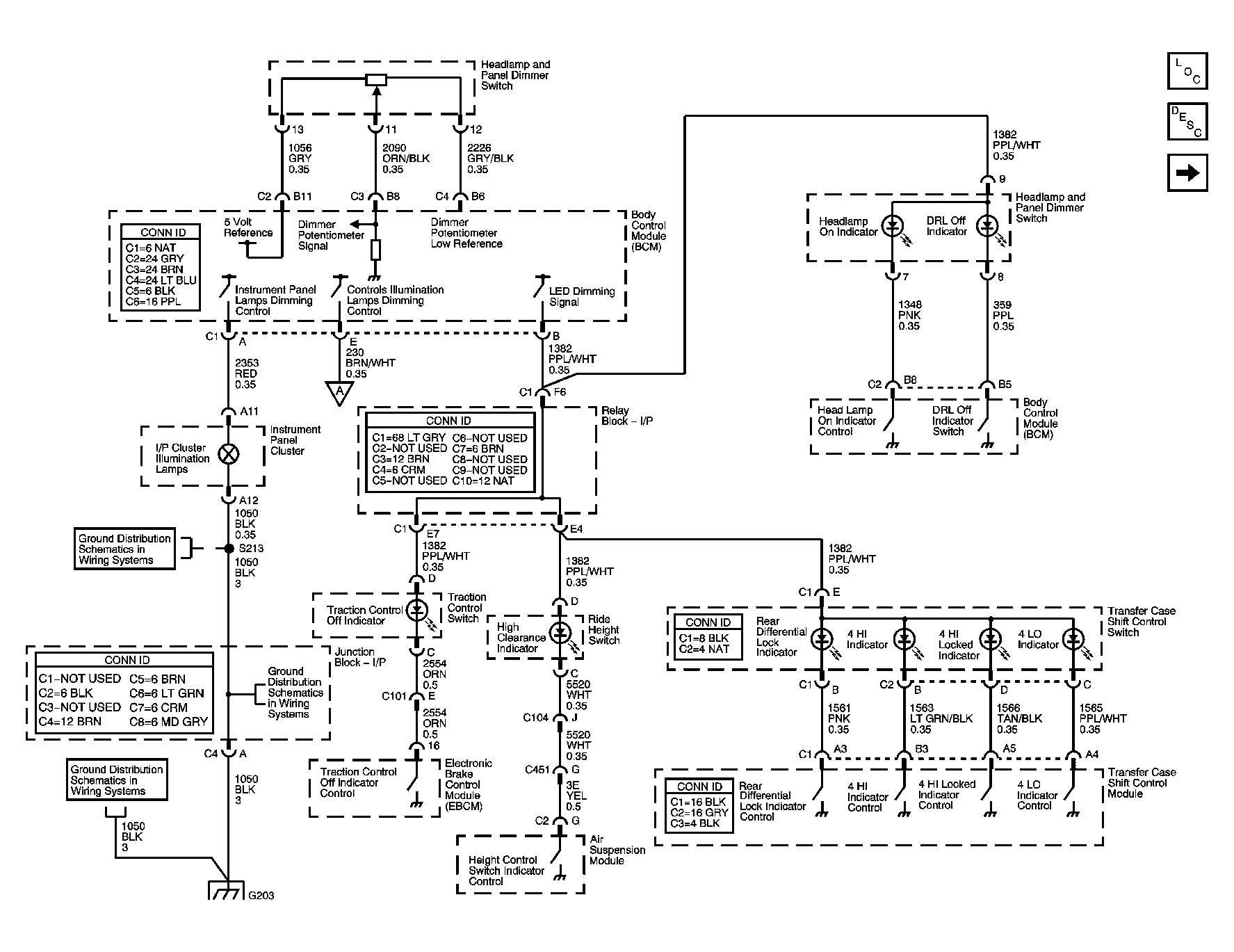

Fig 1: Dimmer Controls, I/P Cluster Illumination, and Switch Indicators

Courtesy of GENERAL MOTORS CORP.

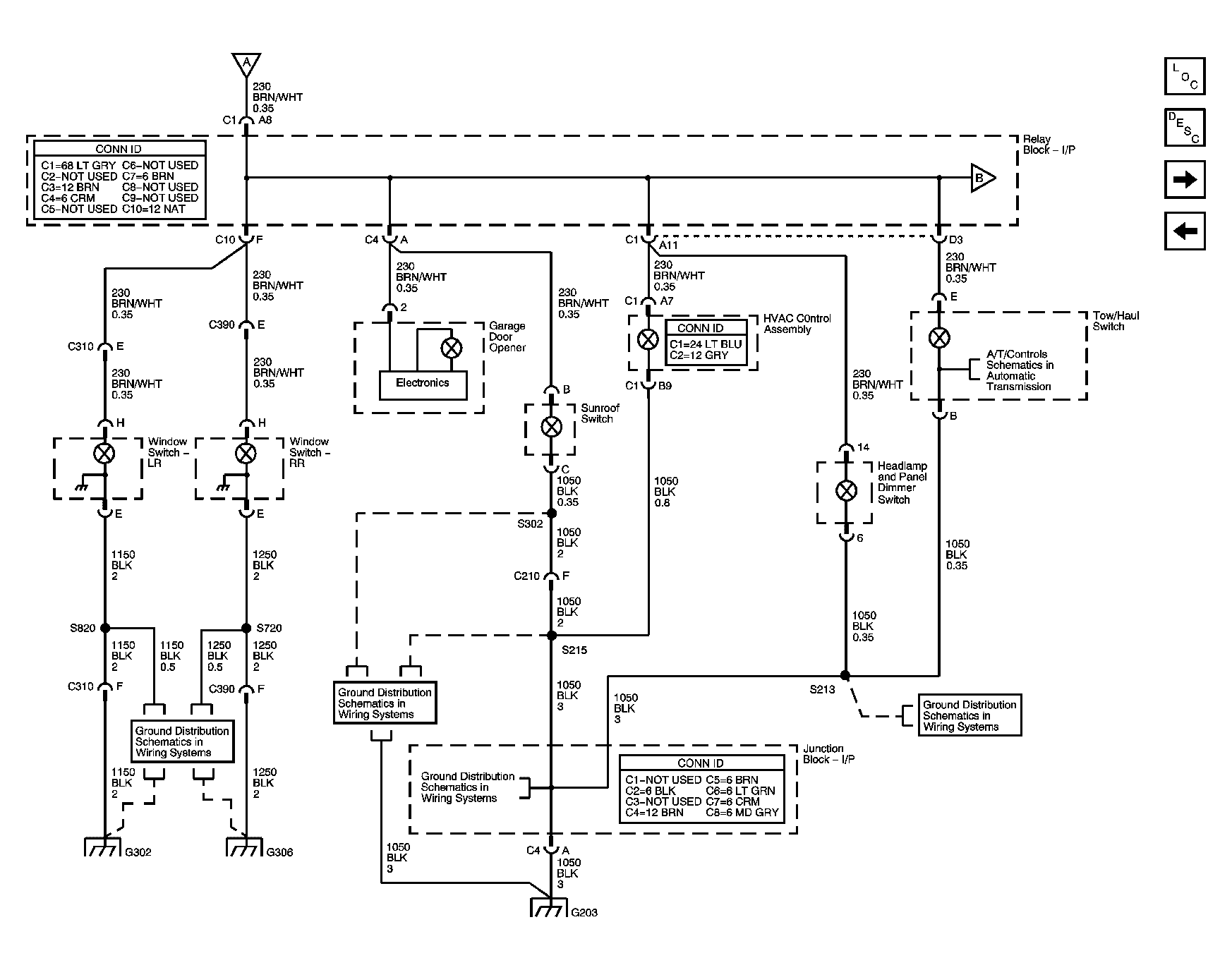

Fig 2: Illumination - Rear Window, Garage Door Opener, Sunroof, HVAC Control, Headlamp, and Tow/Haul Switches

Courtesy of GENERAL MOTORS CORP.

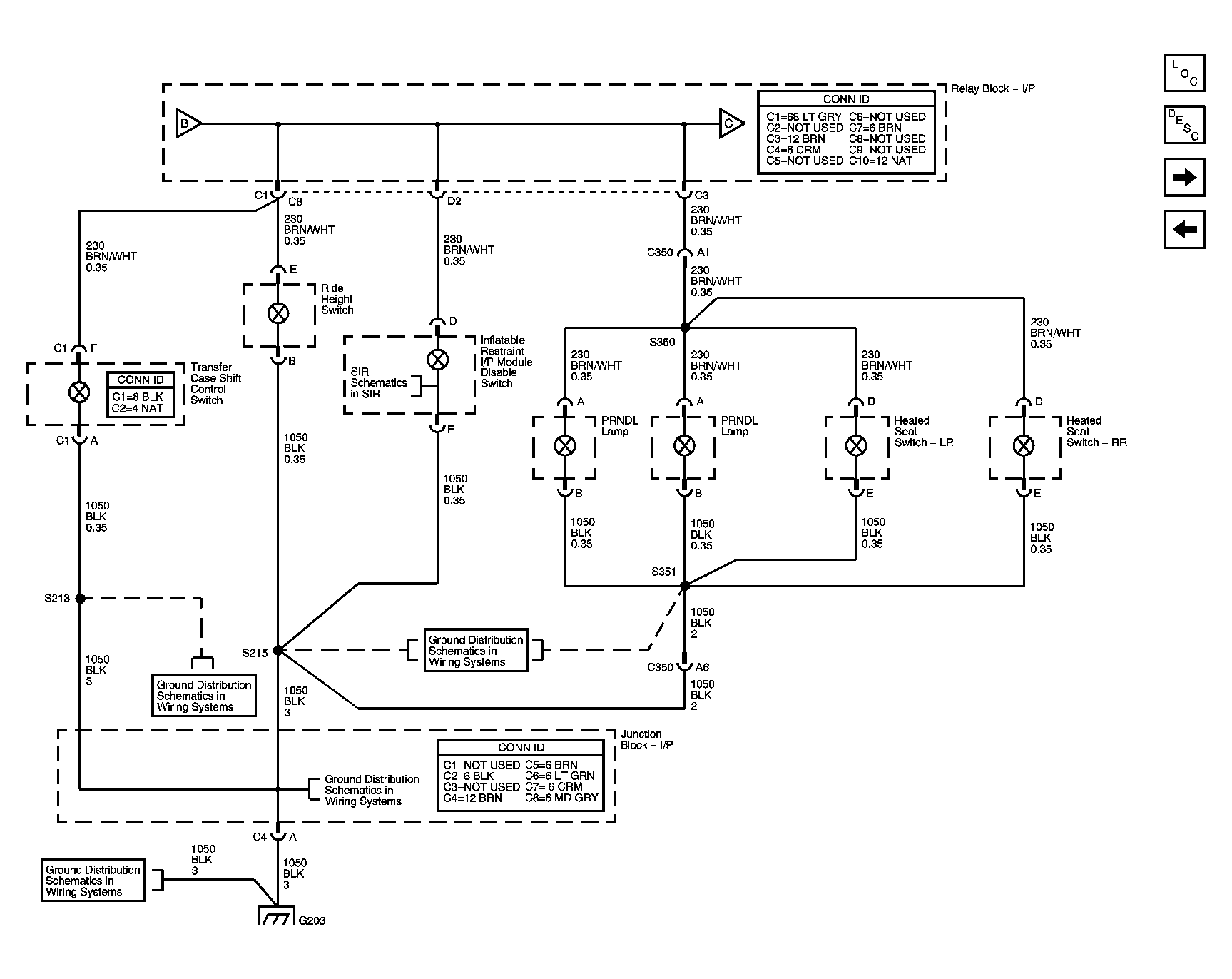

Fig 3: Illumination - Transfer Case Control, Height Control, Inflatable Restraint Disable, and Rear Heated Seat Switches, and PRNDL Lamps

Courtesy of GENERAL MOTORS CORP.

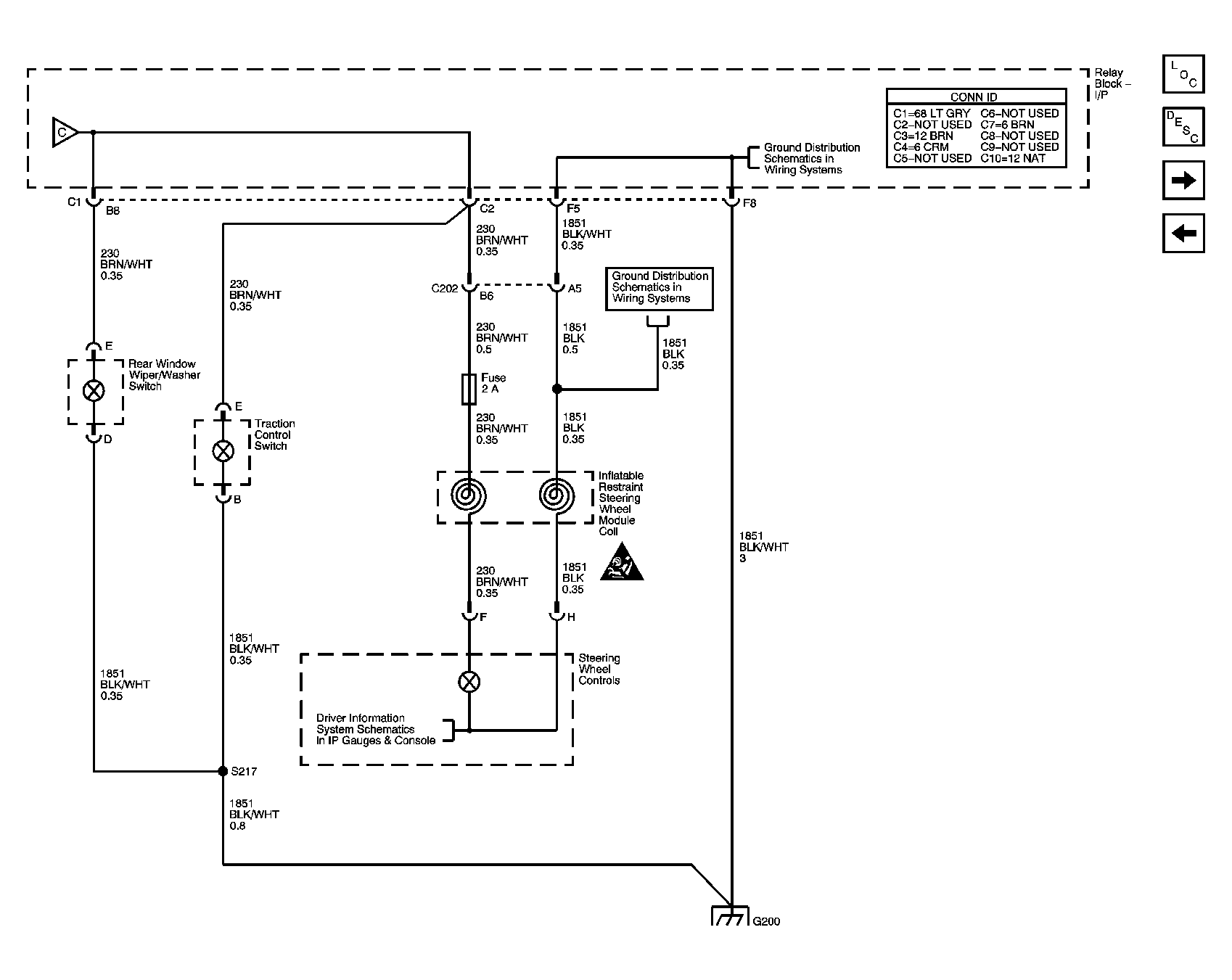

Fig 4: Illumination - Traction Control, Steering Wheel Controls, and Rear Window Washer/Wiper Switches

Courtesy of GENERAL MOTORS CORP.

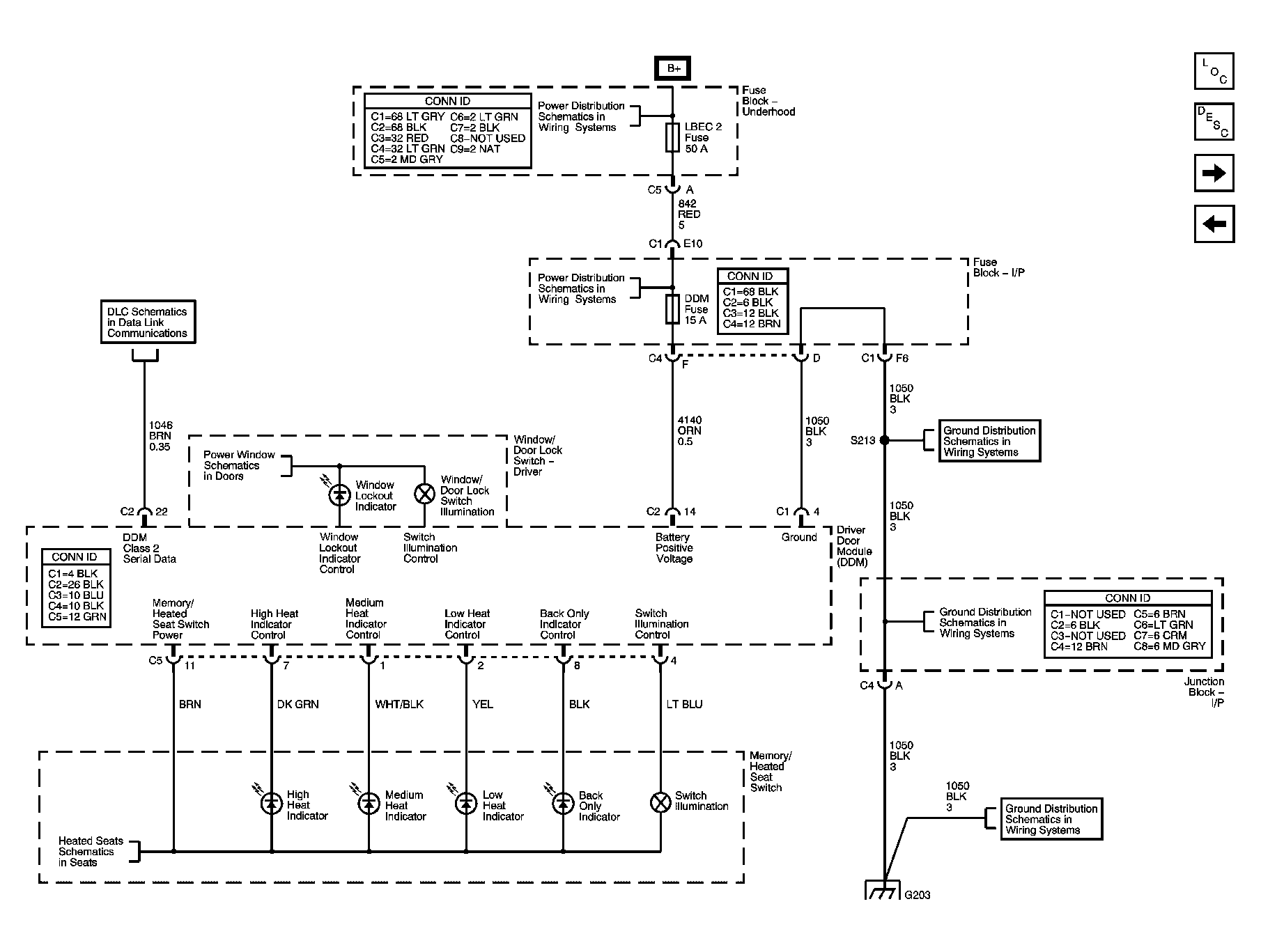

Fig 5: Driver Window, Door, and Seat Switches

Courtesy of GENERAL MOTORS CORP.

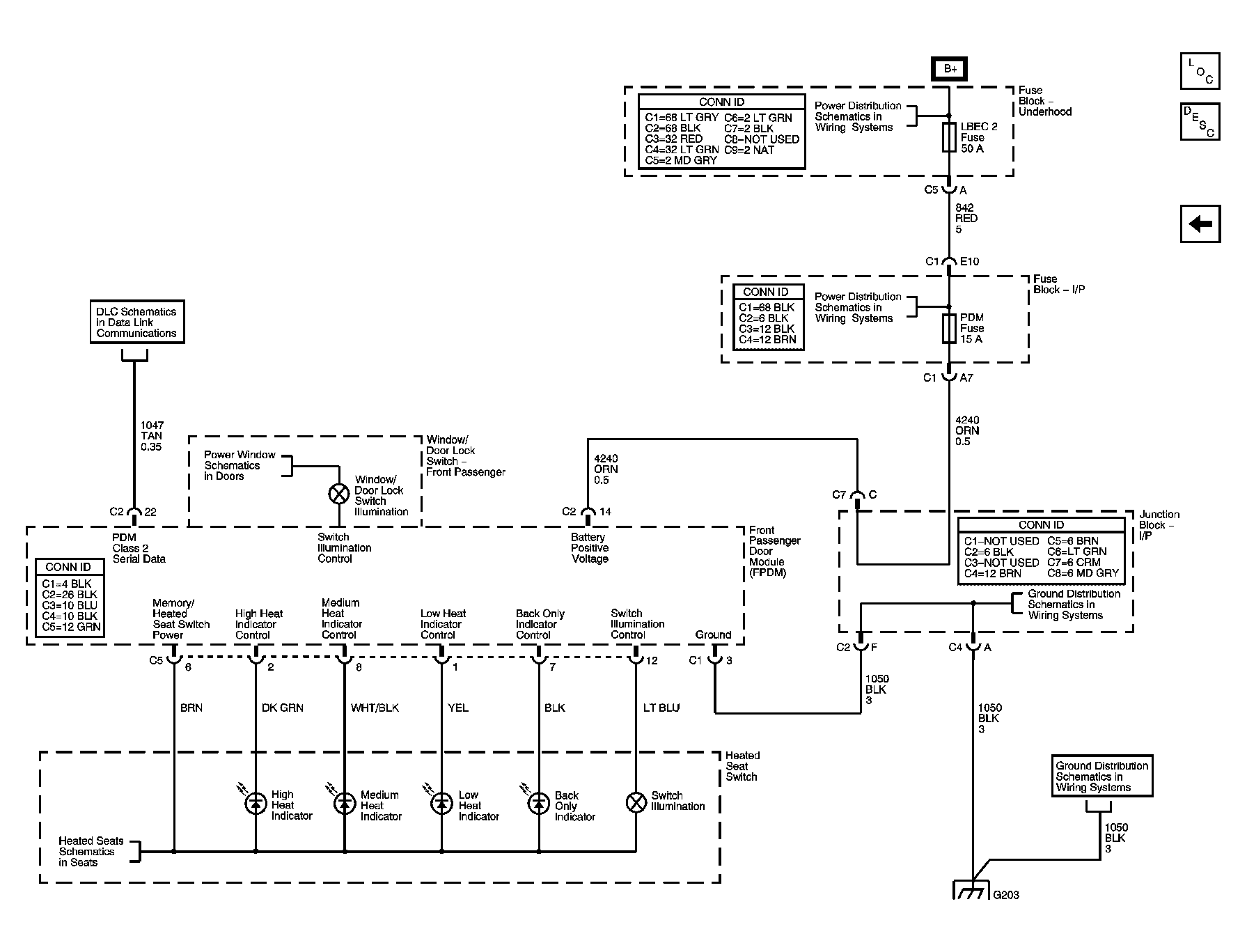

Fig 6: Front Passenger Window, Door, and Seat Switches

Courtesy of GENERAL MOTORS CORP.
