Exterior Lights Schematics

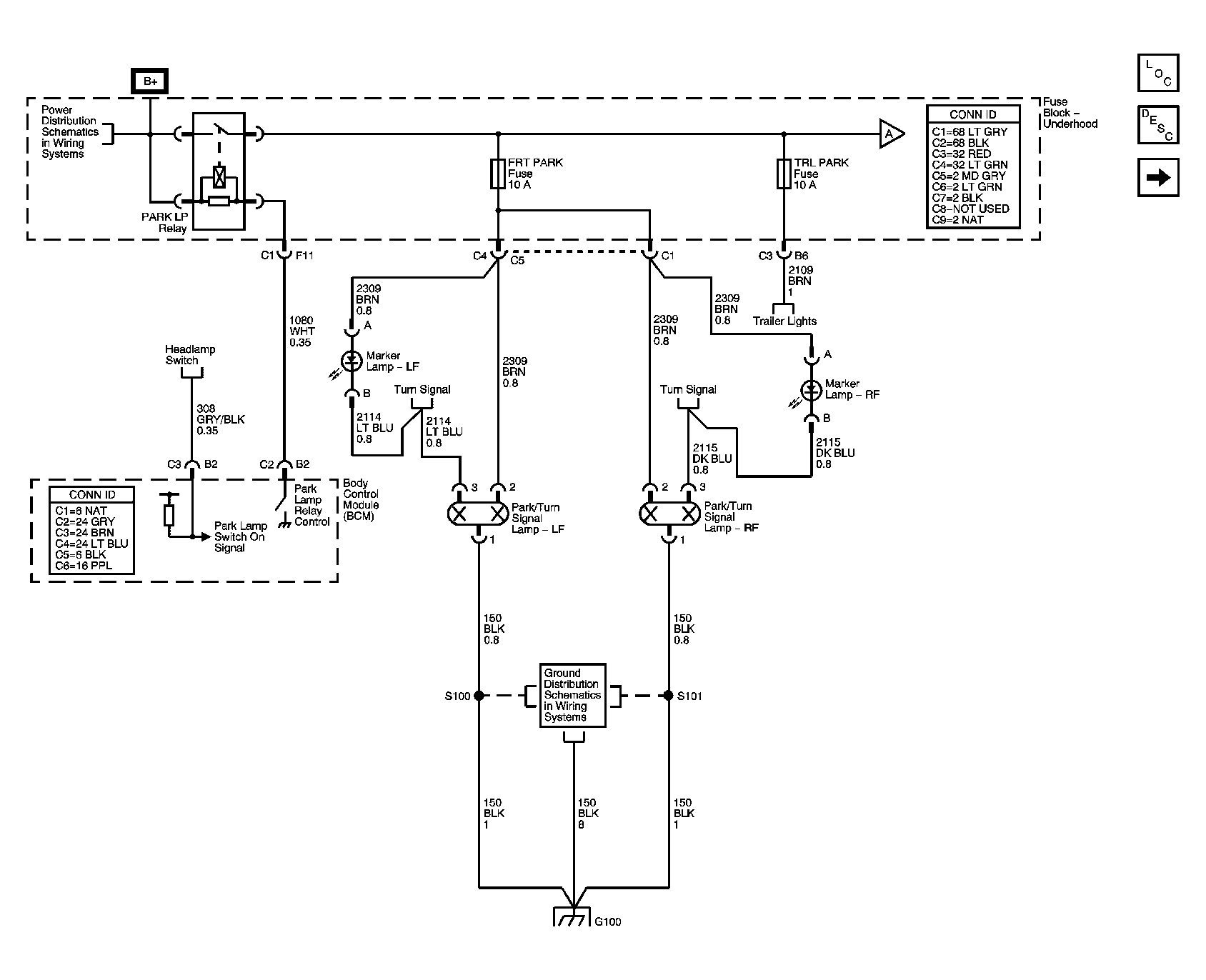

Fig 1: Park Lamp Relay, Front Park and Marker Lamps

Courtesy of GENERAL MOTORS CORP.

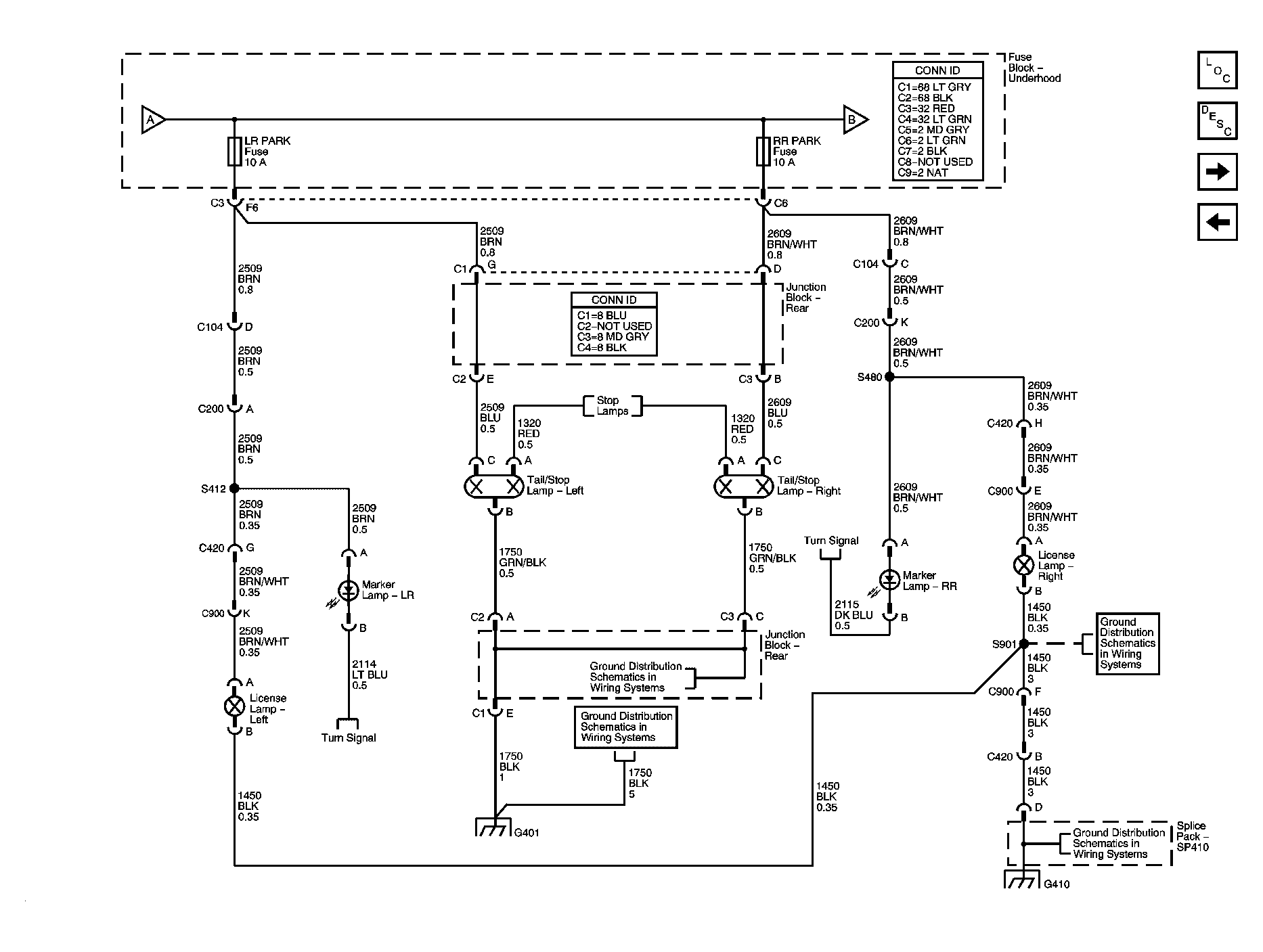

Fig 2: Tail Lamps, Rear Marker, and License Lamps

Courtesy of GENERAL MOTORS CORP.

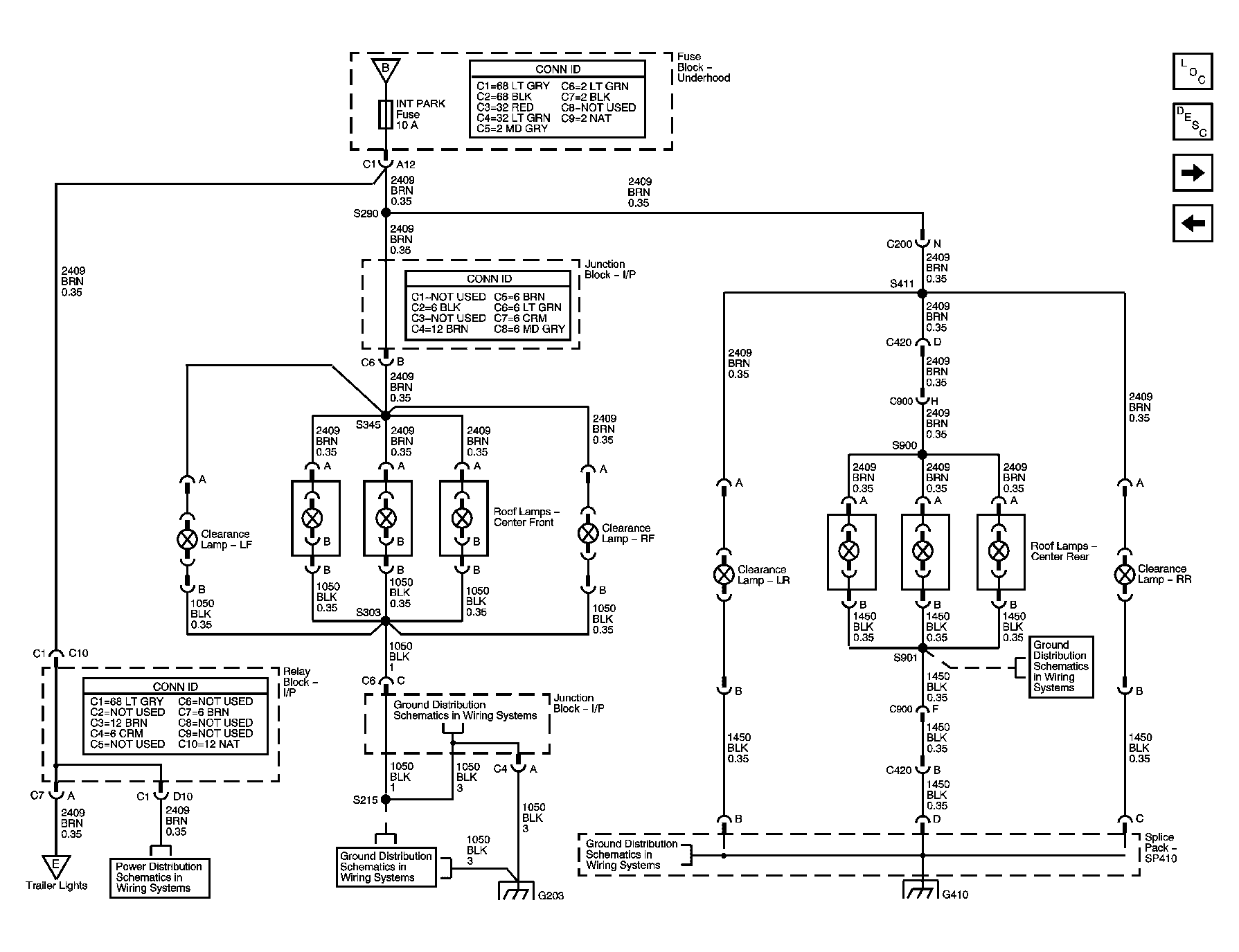

Fig 3: Roof Lamps

Courtesy of GENERAL MOTORS CORP.

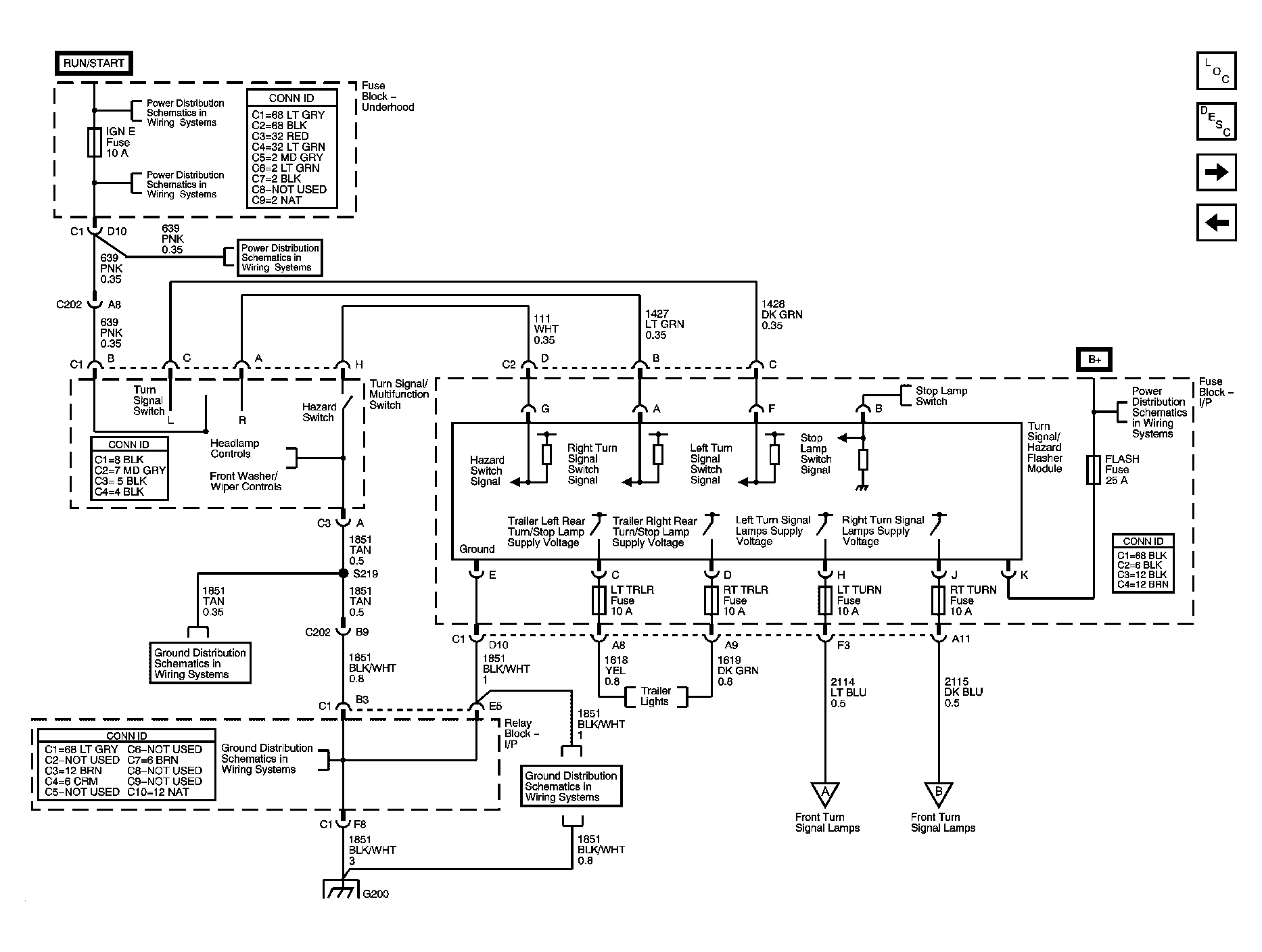

Fig 4: Turn Signal/Hazard Switch and Flasher Module

Courtesy of GENERAL MOTORS CORP.

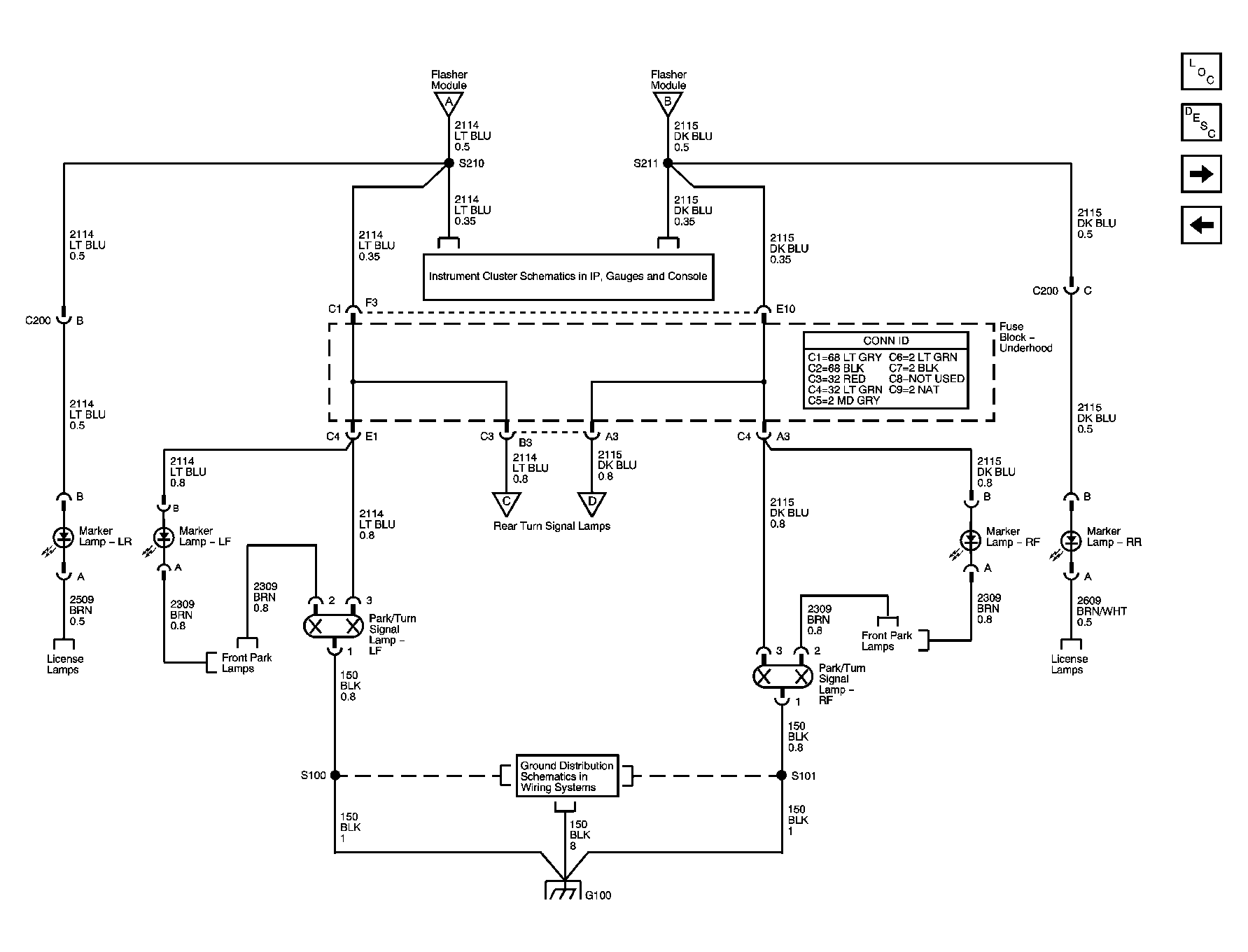

Fig 5: Marker Lamps, Front Turn Signal Lamps

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Turn Signal Lamps

Courtesy of GENERAL MOTORS CORP.

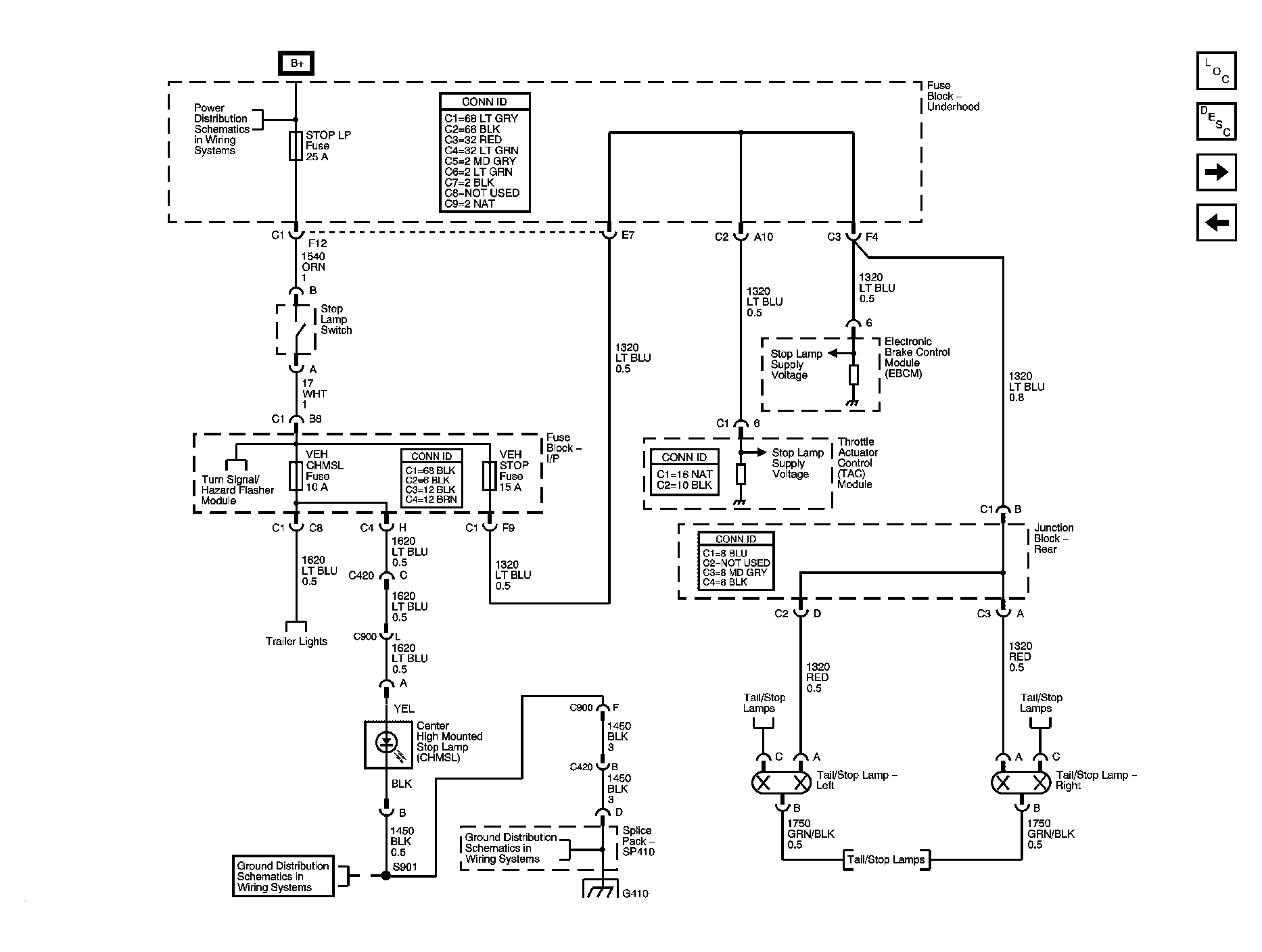

Fig 7: Stop Lamps

Courtesy of GENERAL MOTORS CORP.

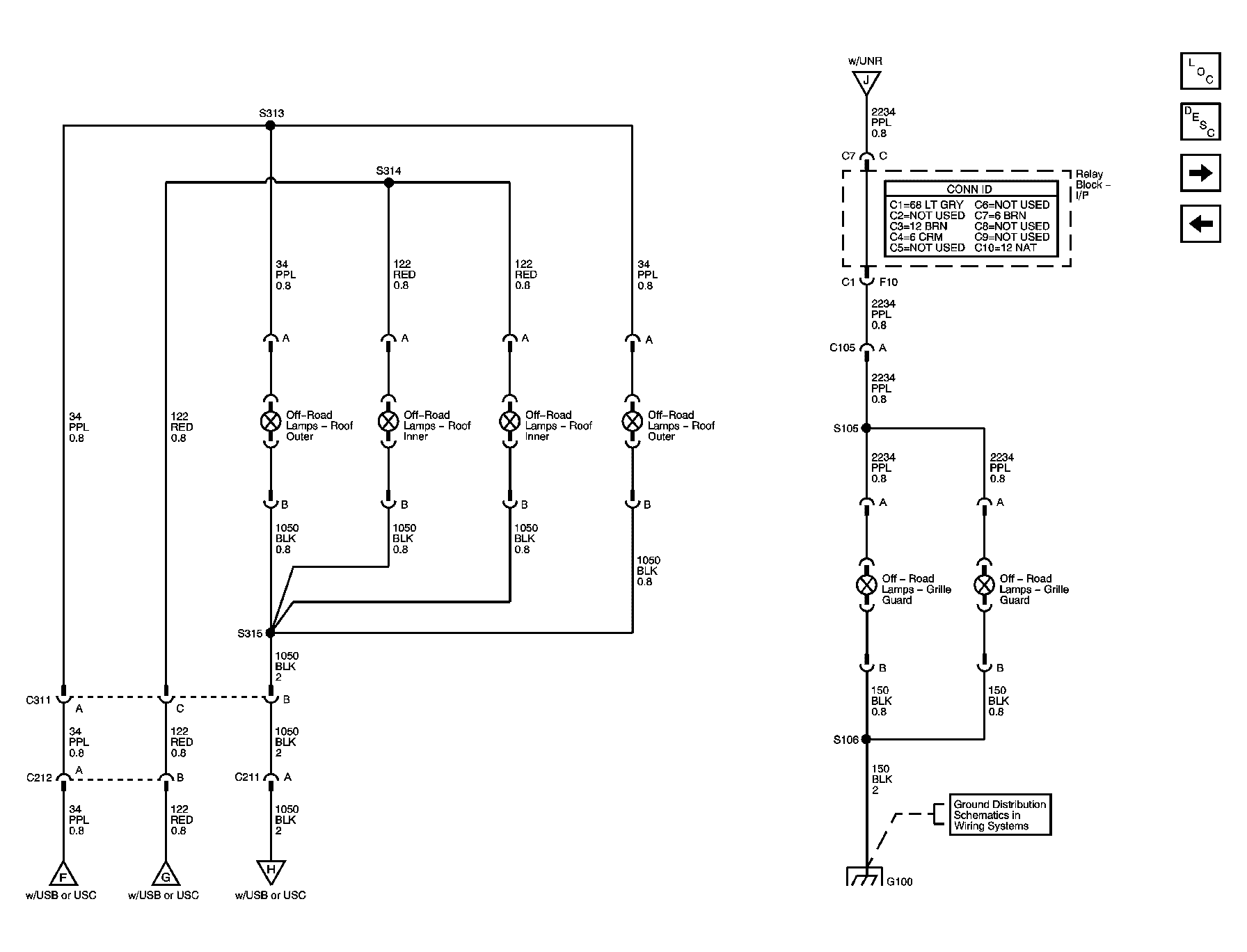

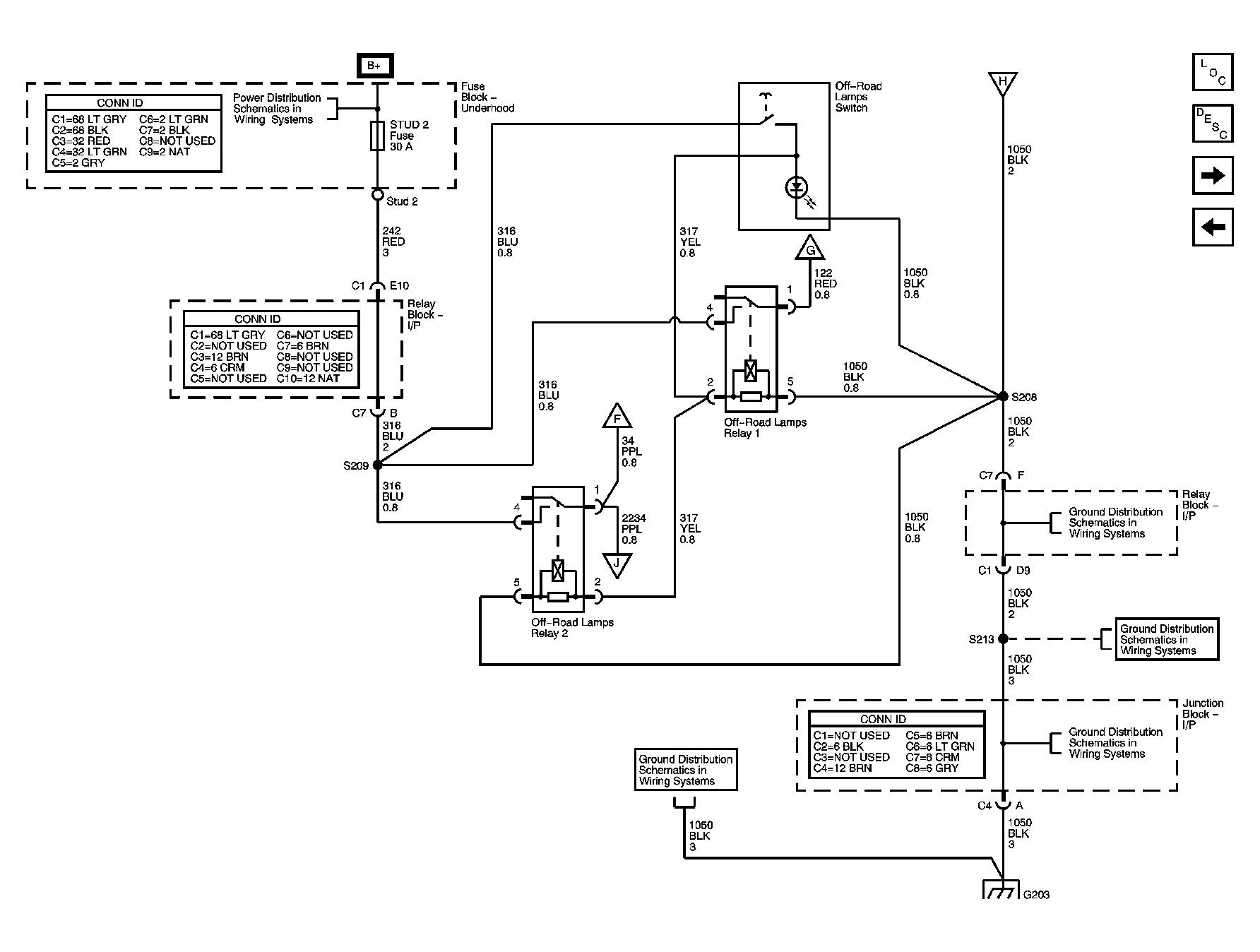

Fig 8: Off-Road Lighting Control

Courtesy of GENERAL MOTORS CORP.

Fig 9: Off-Road Lighting Control

Courtesy of GENERAL MOTORS CORP.

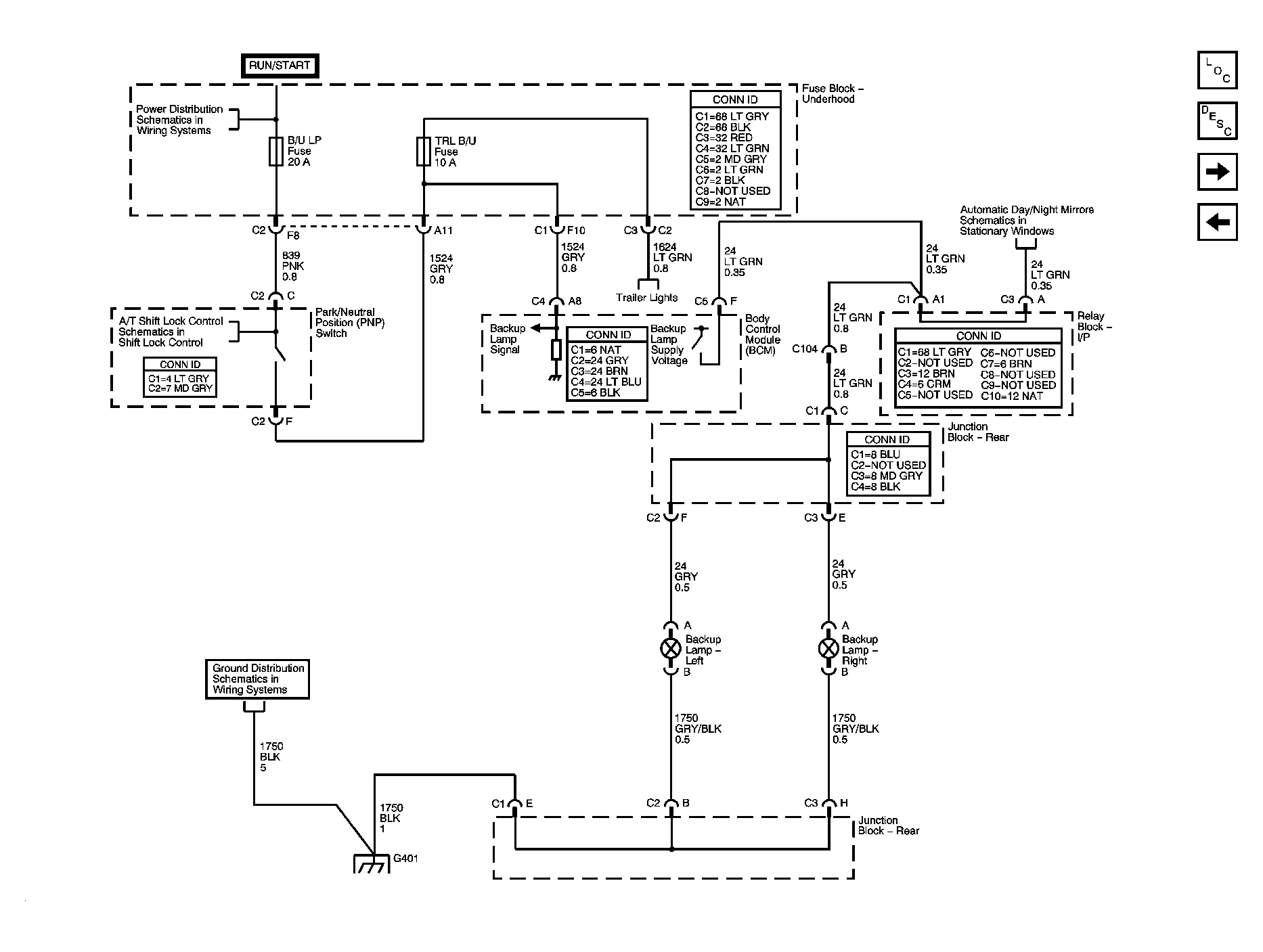

Fig 10: Backup Lamps

Courtesy of GENERAL MOTORS CORP.

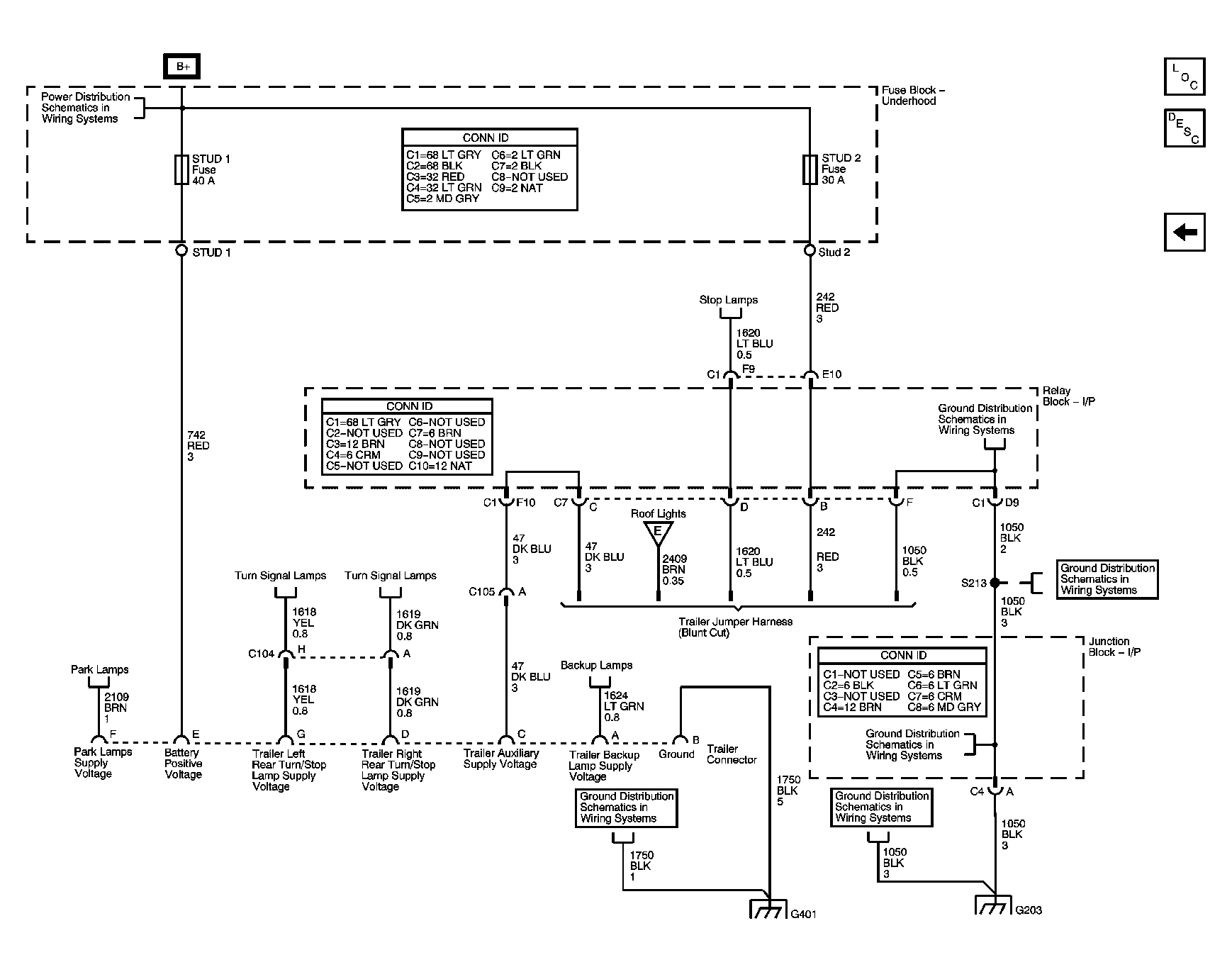

Fig 11: Trailer Lighting Provisions

Courtesy of GENERAL MOTORS CORP.
