Radio/Audio System Schematics

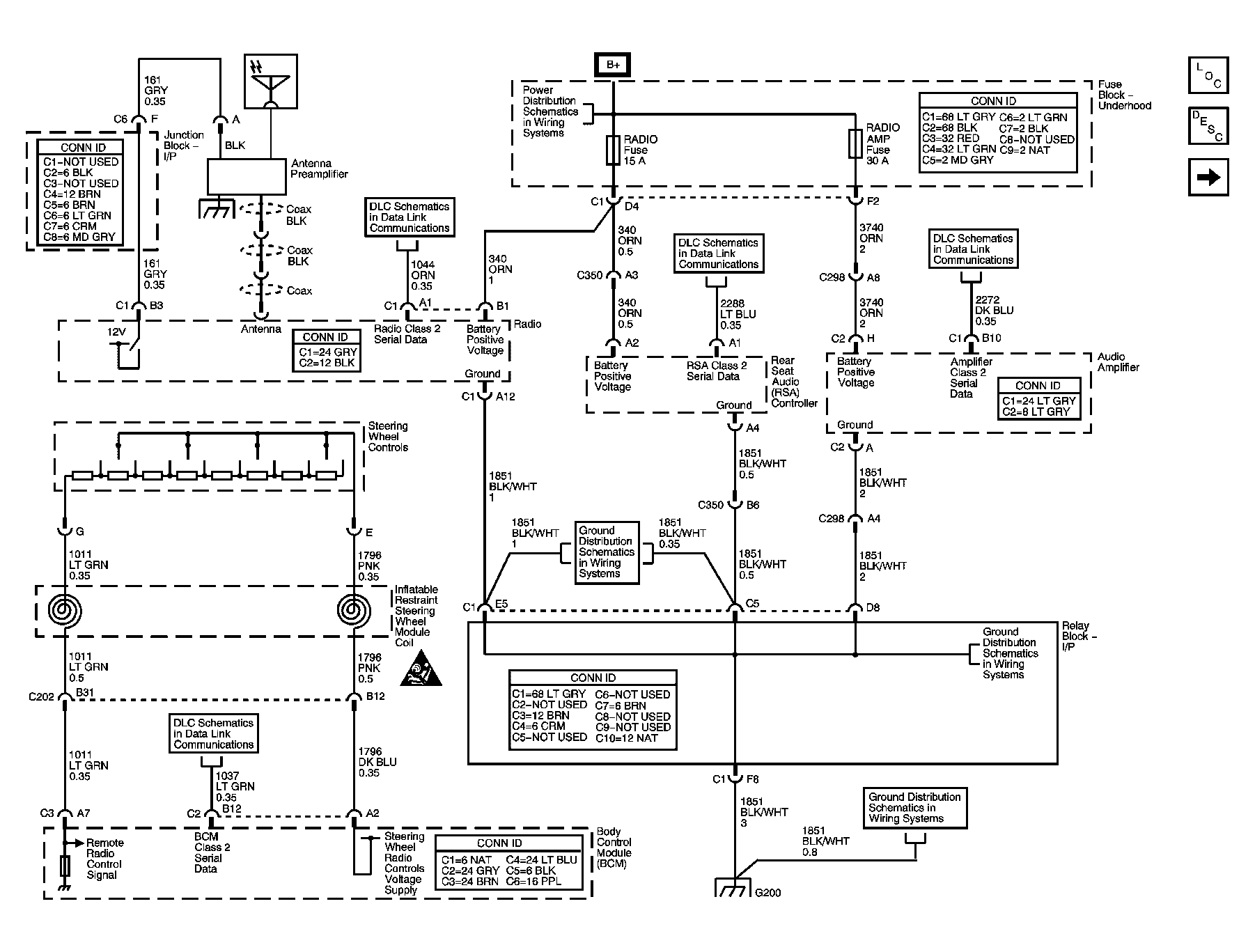

Fig 1: Power, Ground, DLC, & Steering Wheel Controls
GM832925Courtesy of GENERAL MOTORS CORP.

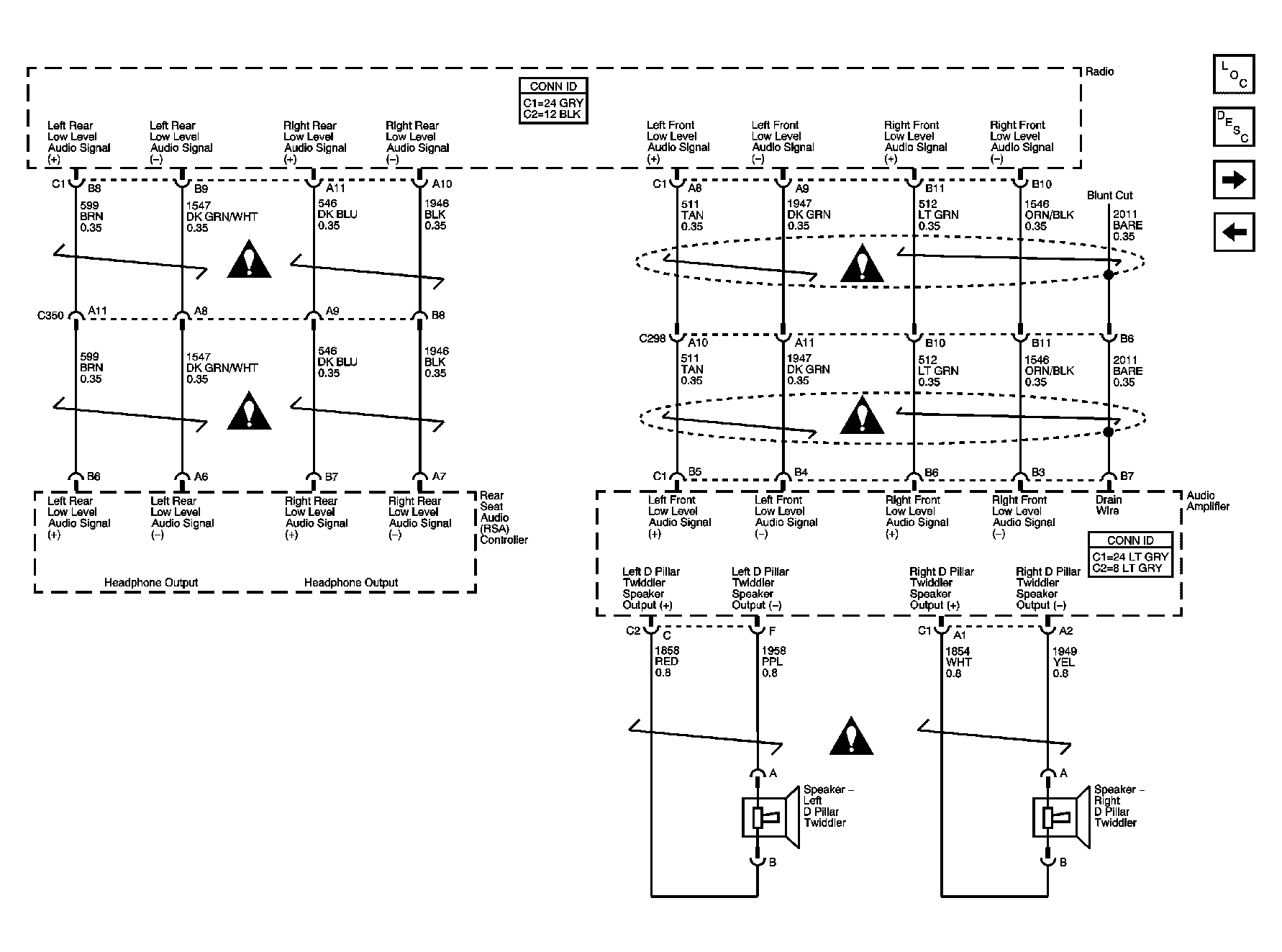

Fig 2: Rear Seat Audio & D-Pillar Speakers
GM832926Courtesy of GENERAL MOTORS CORP.

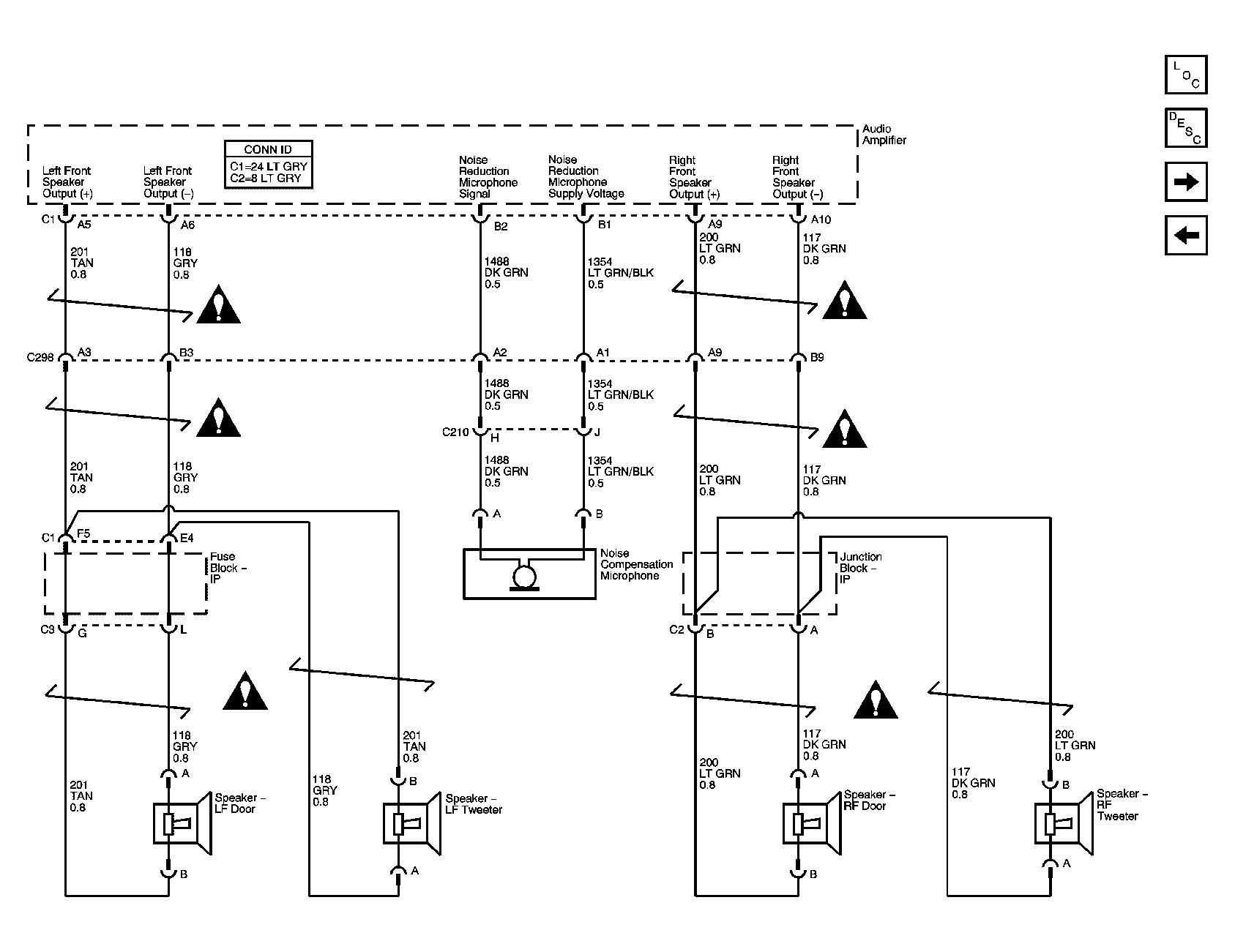

Fig 3: Front Speakers
GM832927Courtesy of GENERAL MOTORS CORP.

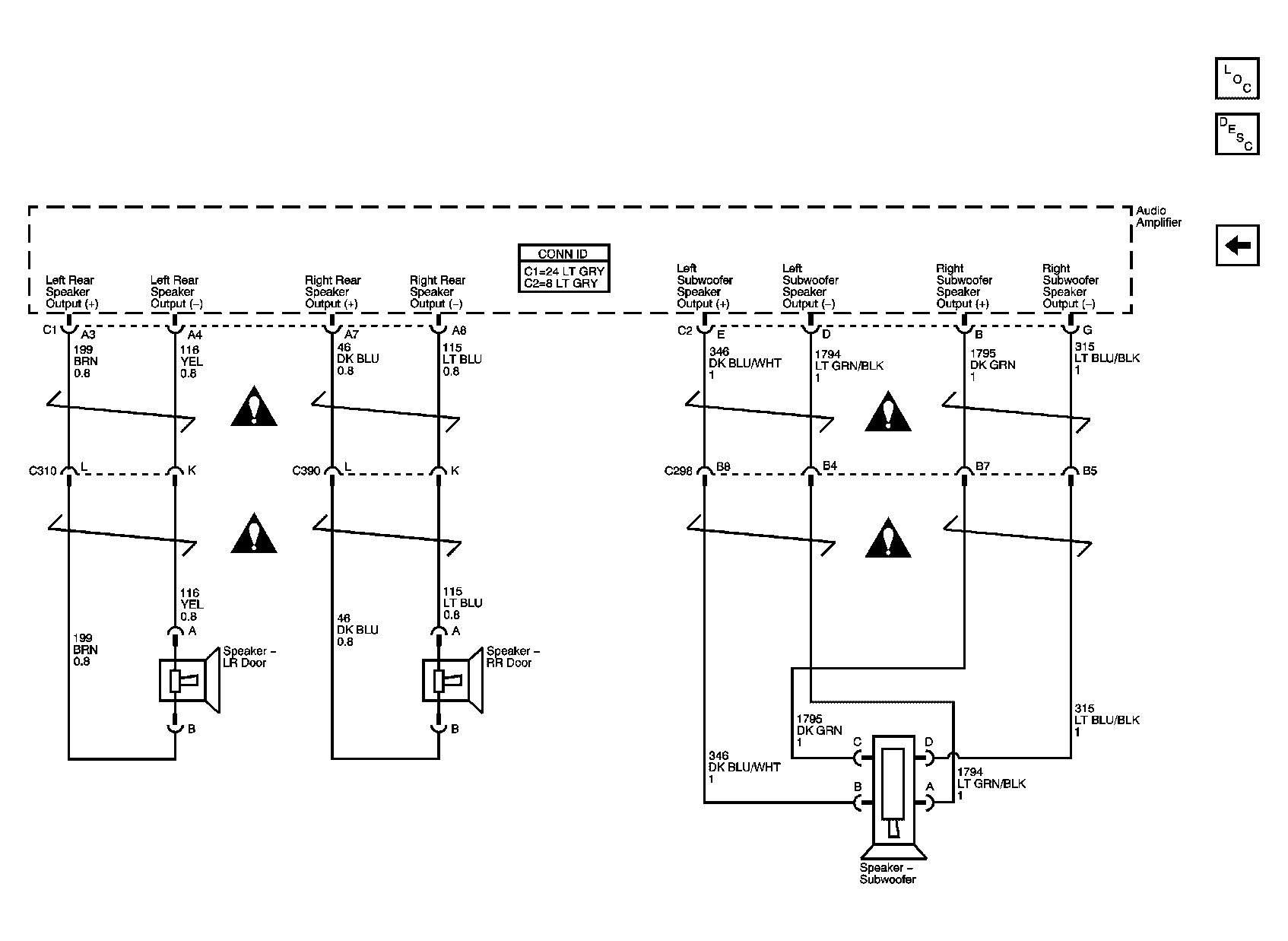

Fig 4: Rear Door Speakers & Subwoofer
GM832930Courtesy of GENERAL MOTORS CORP.
