Wheel Bearing Wear - Front Drive Axle (Tapered)
>>
Bent Cage
Bent Cage

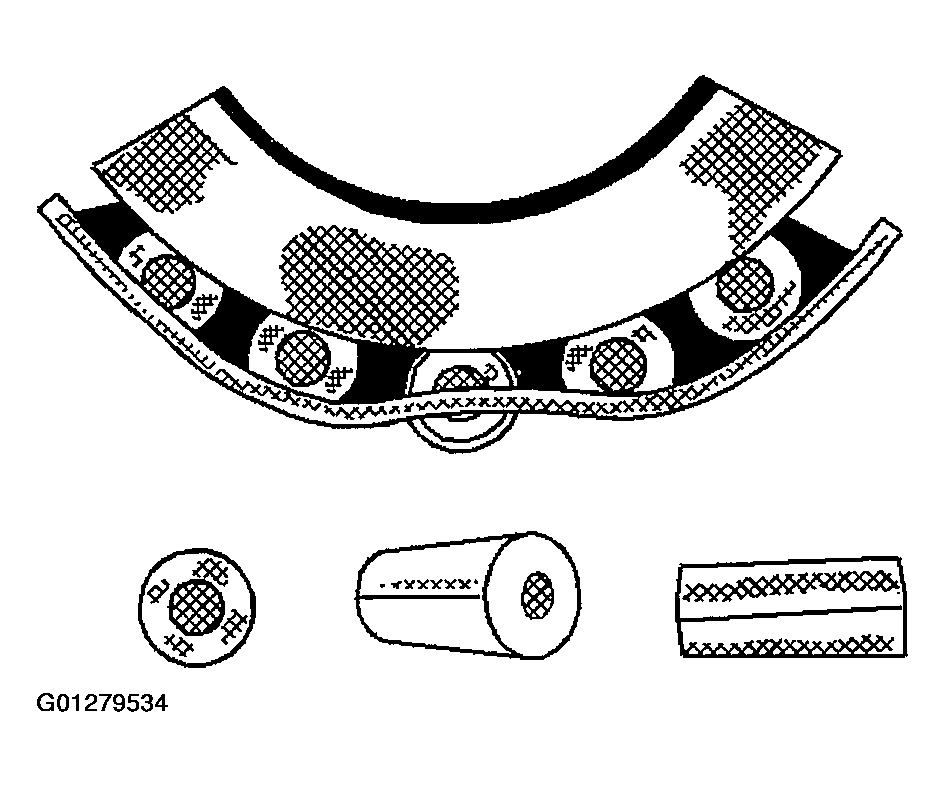

Fig 1: Identifying Tapered Roller Bearing Bent Cage
Courtesy of GENERAL MOTORS CORP.
A damaged cage due to improper handling or improper tool usage. Replace the bearing.
