Park Brake Pedal Assembly: Installation

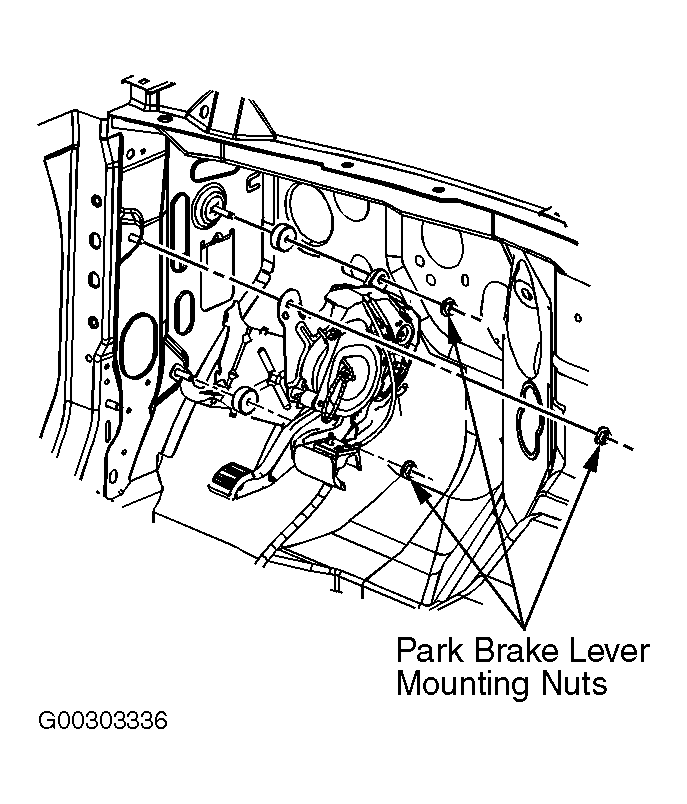

  1. Connect the front park brake cable to the park brake lever. See Figure. Install the park brake lever. Install the park brake lever mounting nuts. See Figure. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
  2. Connect the park brake release cable to the park brake lever. Connect the park brake warning lamp connector. See Figure. Install the MID-Bussed Electrical Center bracket. Install the left side hinge pillar panel. Connect the negative battery cable.
  3. Enable the park brake cable automatic adjuster. See Enabling the Park Brake Cable Automatic Adjuster .
